Electrical Diagrams
Schematic and Routing Diagrams

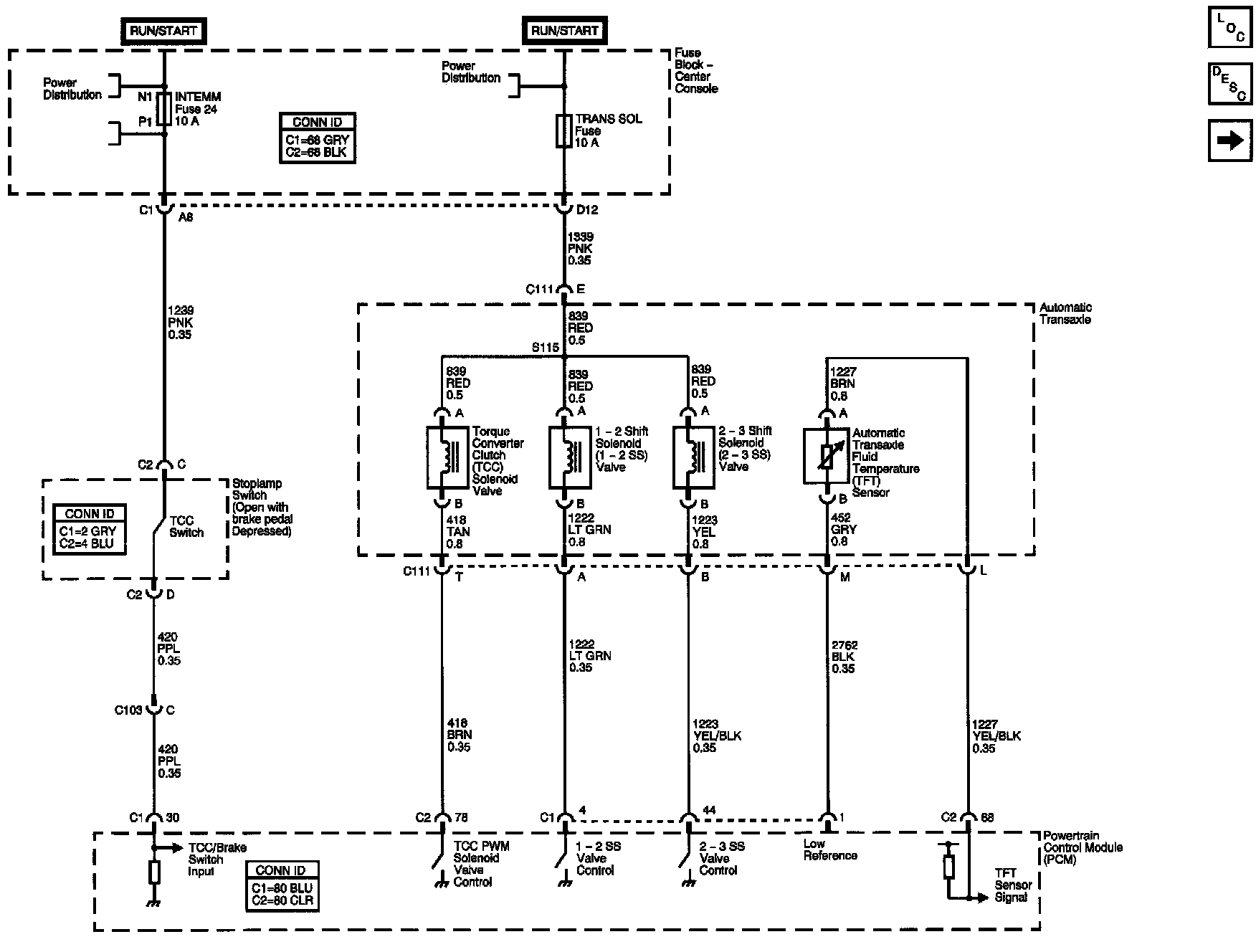

Automatic Transmission Controls Schematics (TCC Solenoid Control, SS Valve Control and TFT Sensor)

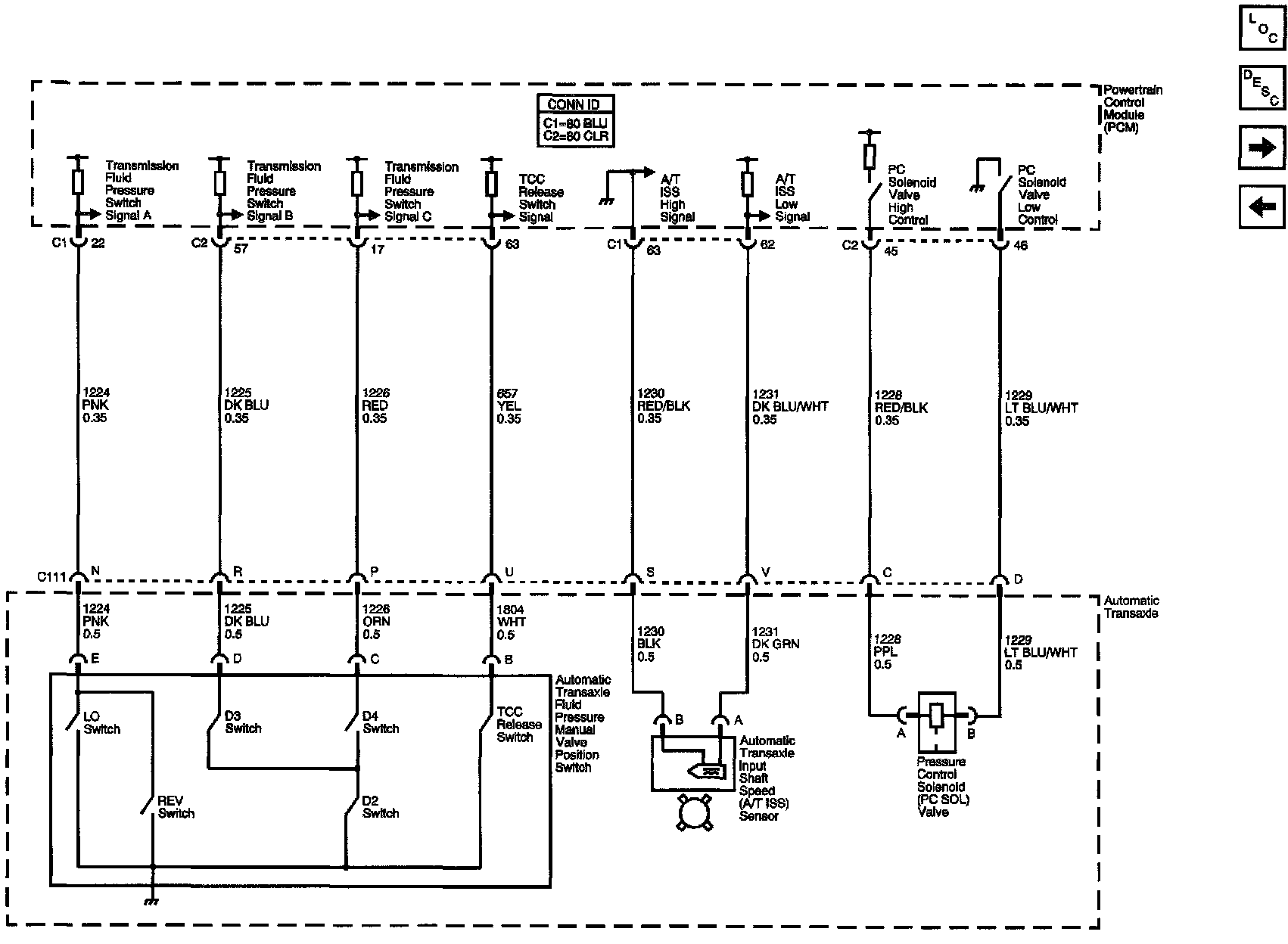

Automatic Transmission Controls Schematics (Switches, ISS and Pressure Control)

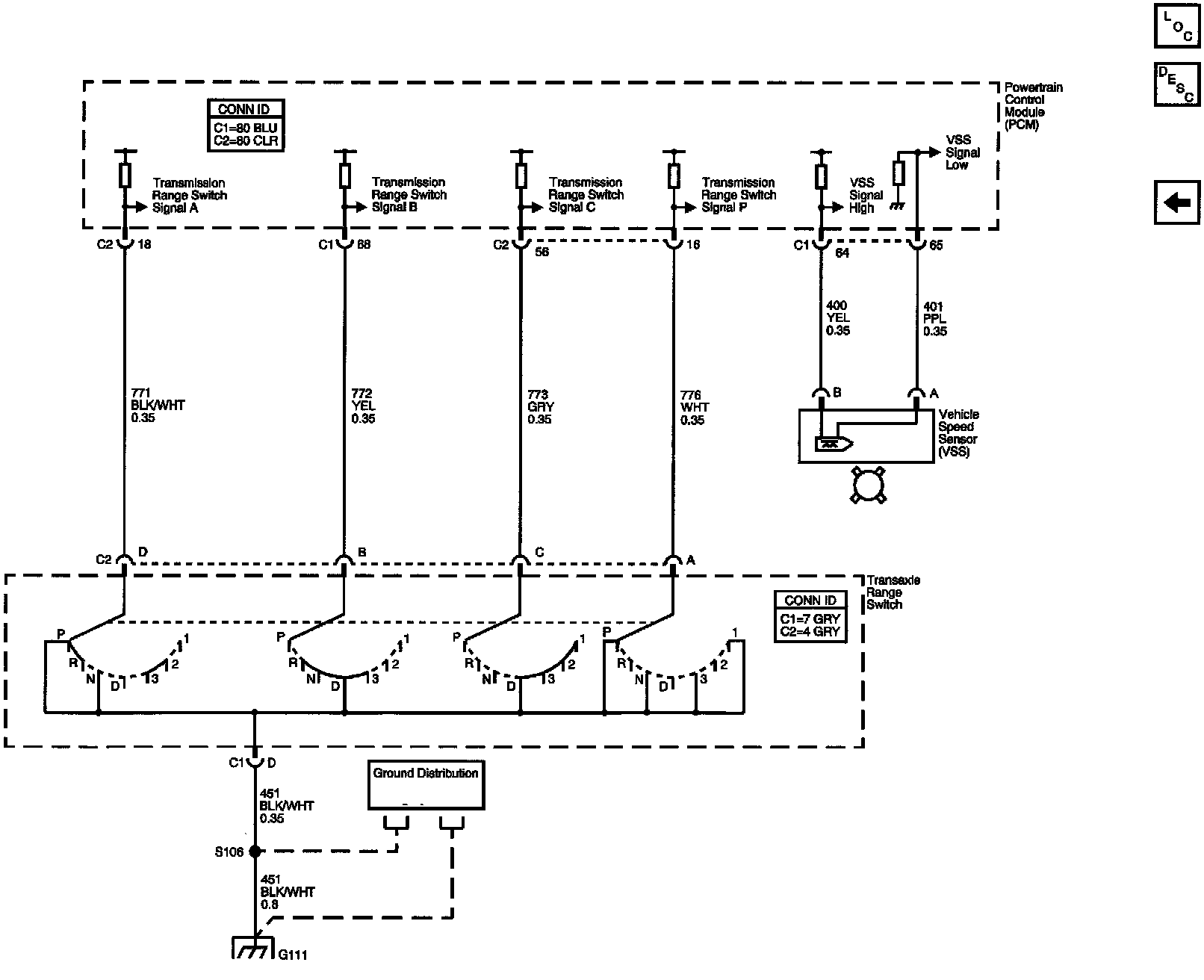

Automatic Transmission Controls Schematics (Transaxle Range Switch and VSS)
