Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse Block
>>
Fuse Block - Center Console
>>
C1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
C1

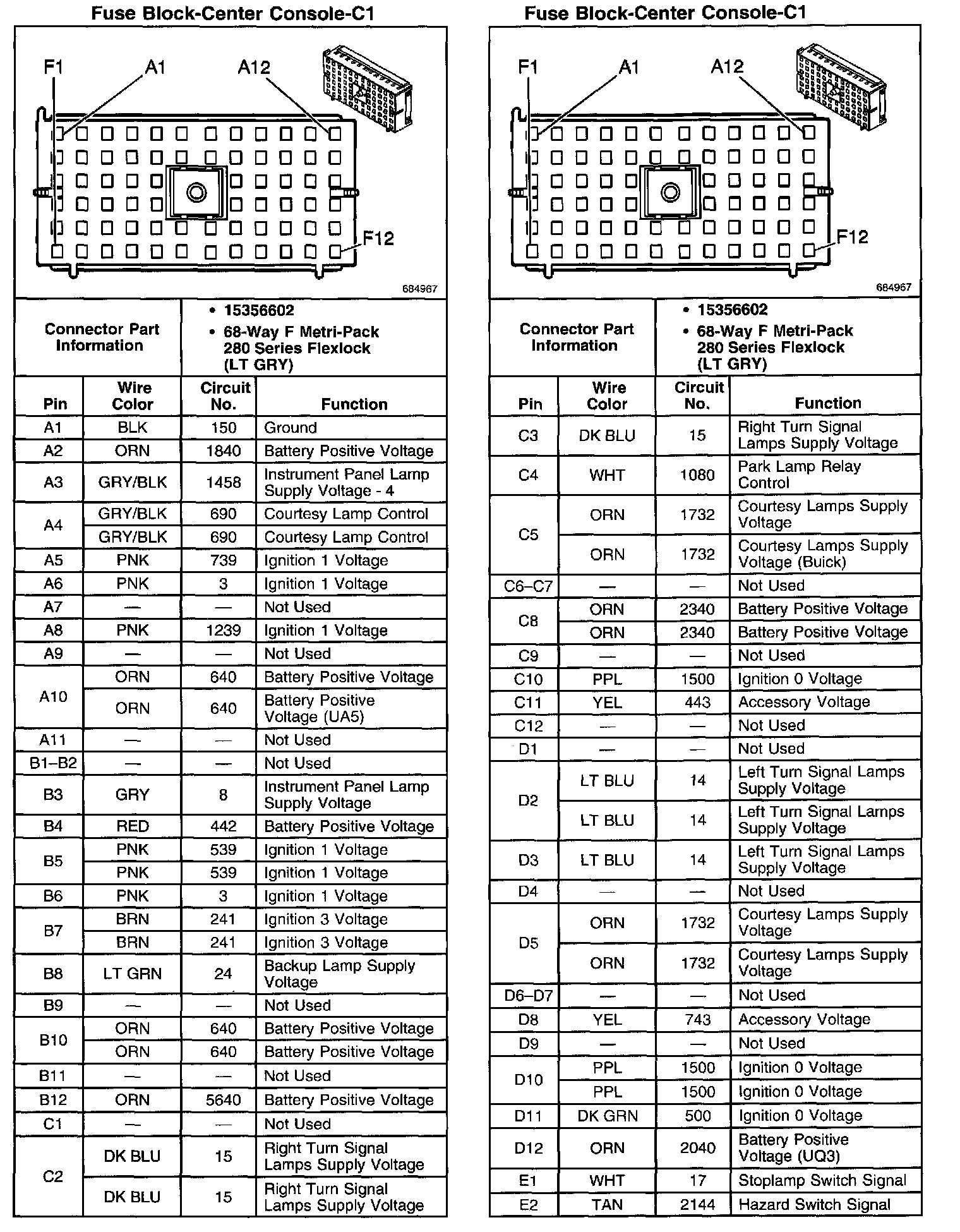

Fuse Block - Center Console - C1 Part 1:

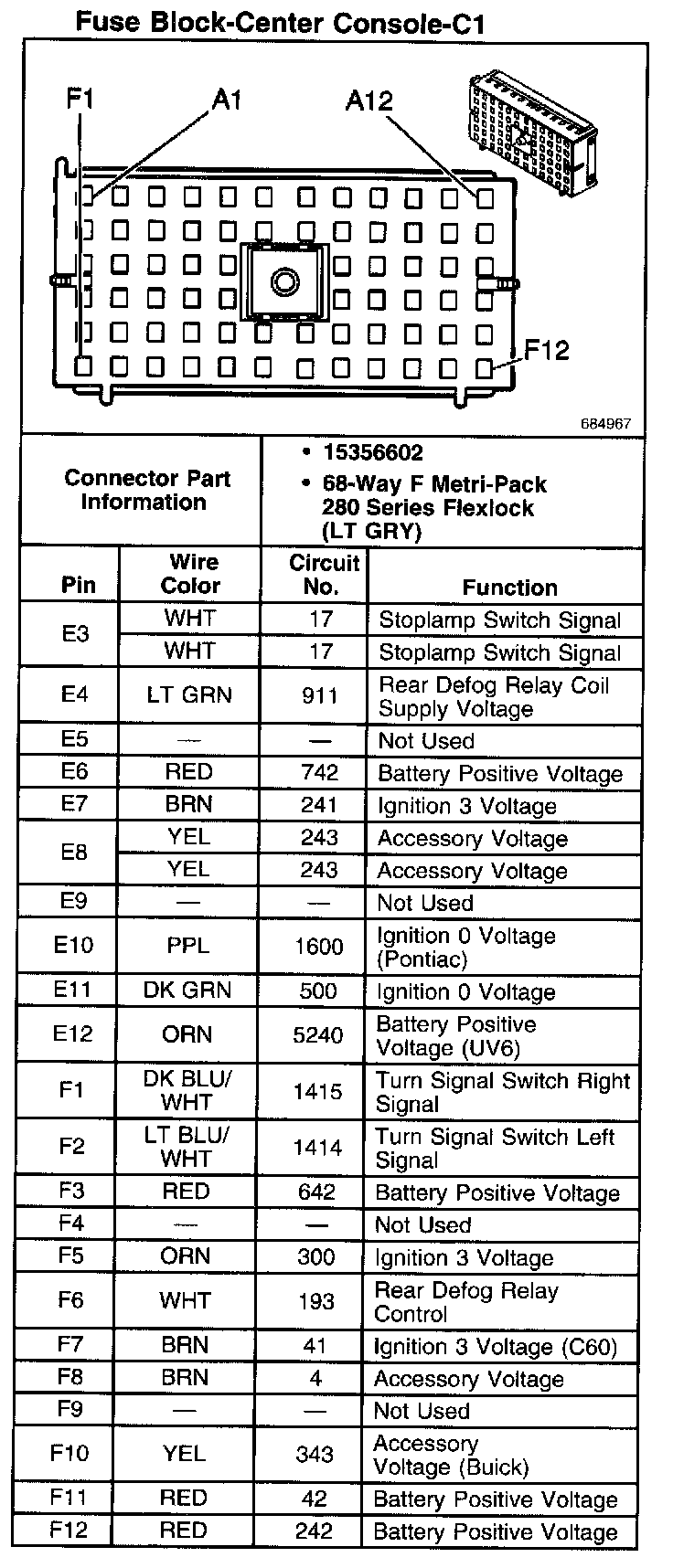

Fuse Block - Center Console - C1 Part 2:
