Power Window Switch

Window Master Switch - C1:

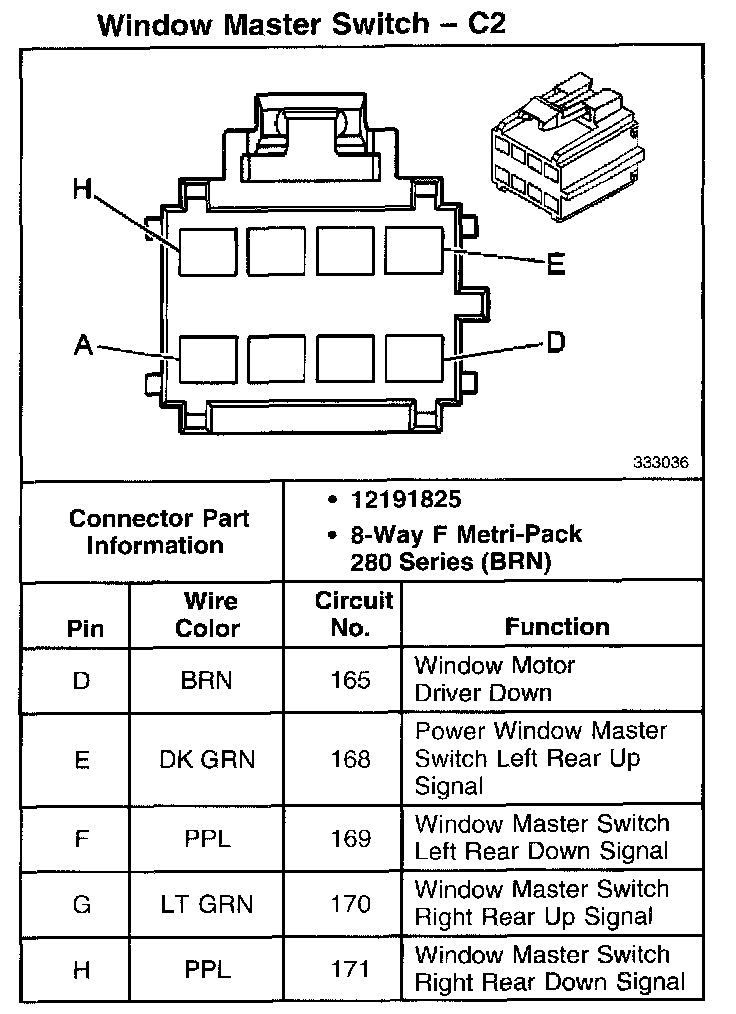

Window Master Switch - C2 Part 2:




Window Master Switch - C2 Part 1:




Window Switch - Front Passenger Part 1:




Window Switch - Front Passenger Part 2:

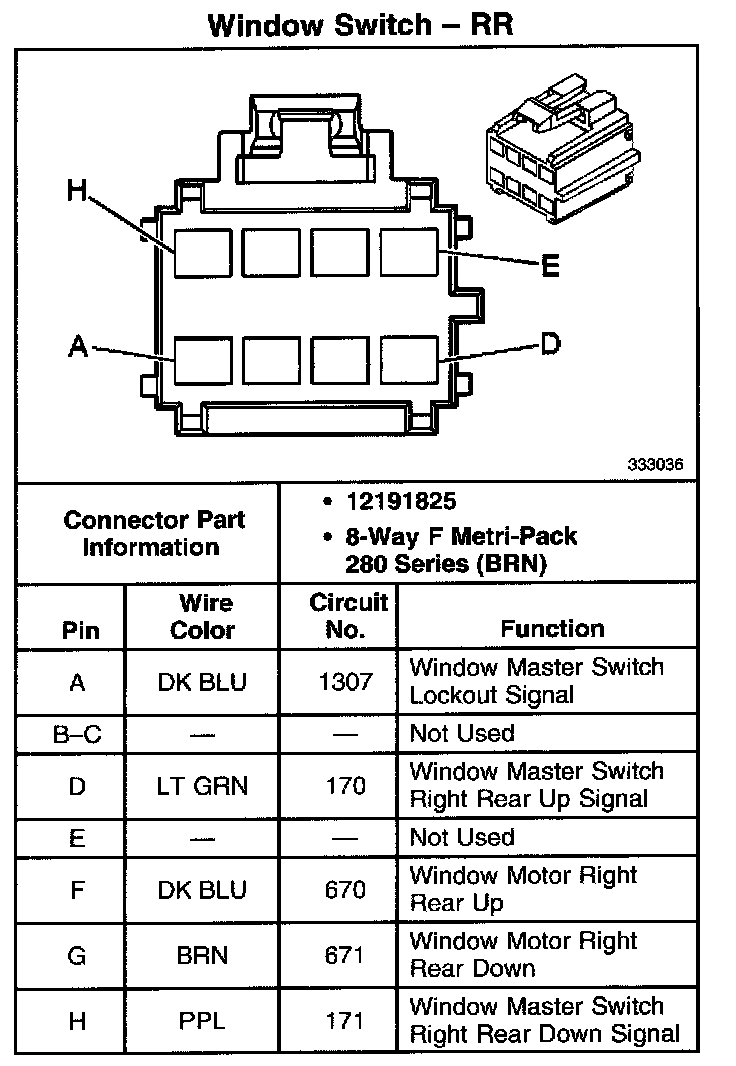

Window Switch - RR:




Window Switch - LR:
