System Diagram

OnStar(R) Button Assembly Part 2:




OnStar(R) Button Assembly Part 1:

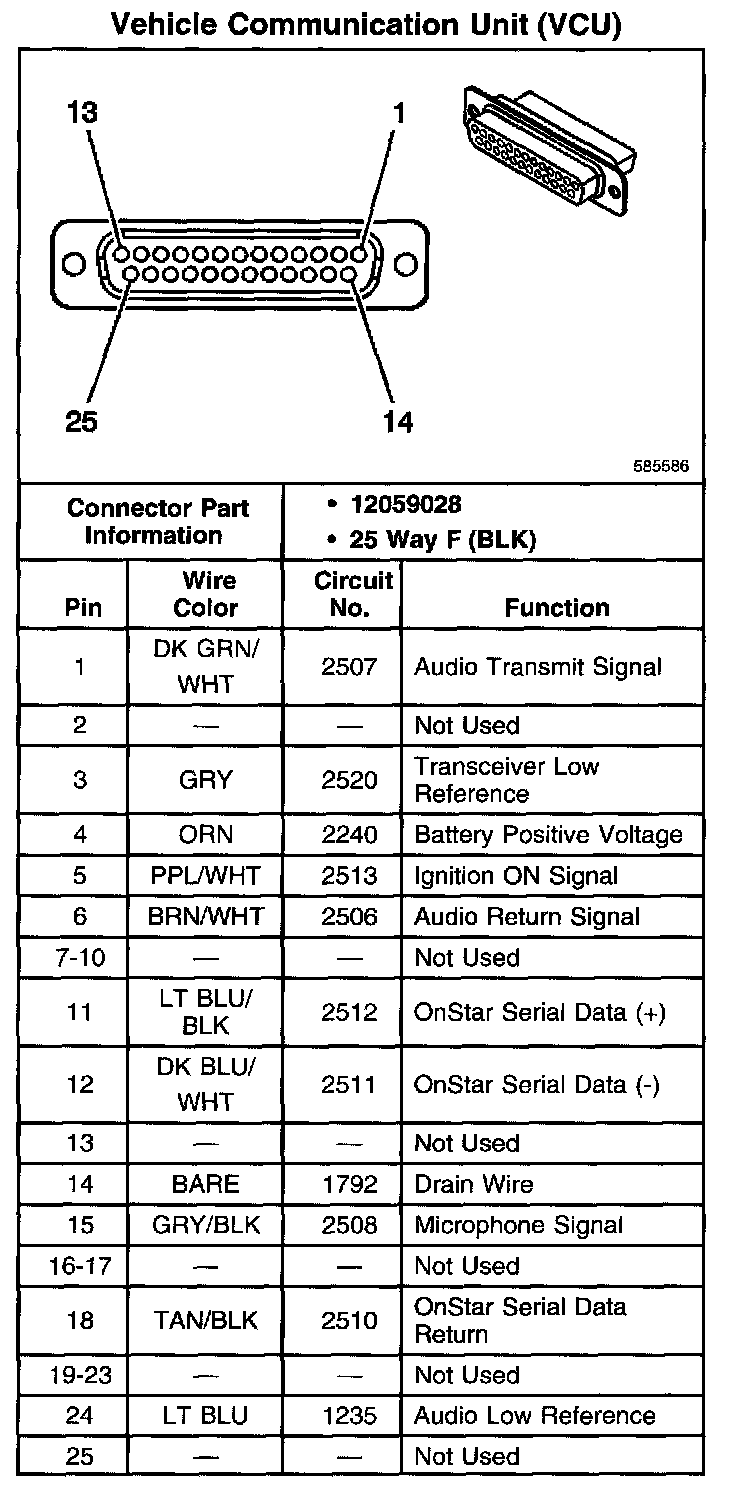

Vehicle Communication Unit (VCU):

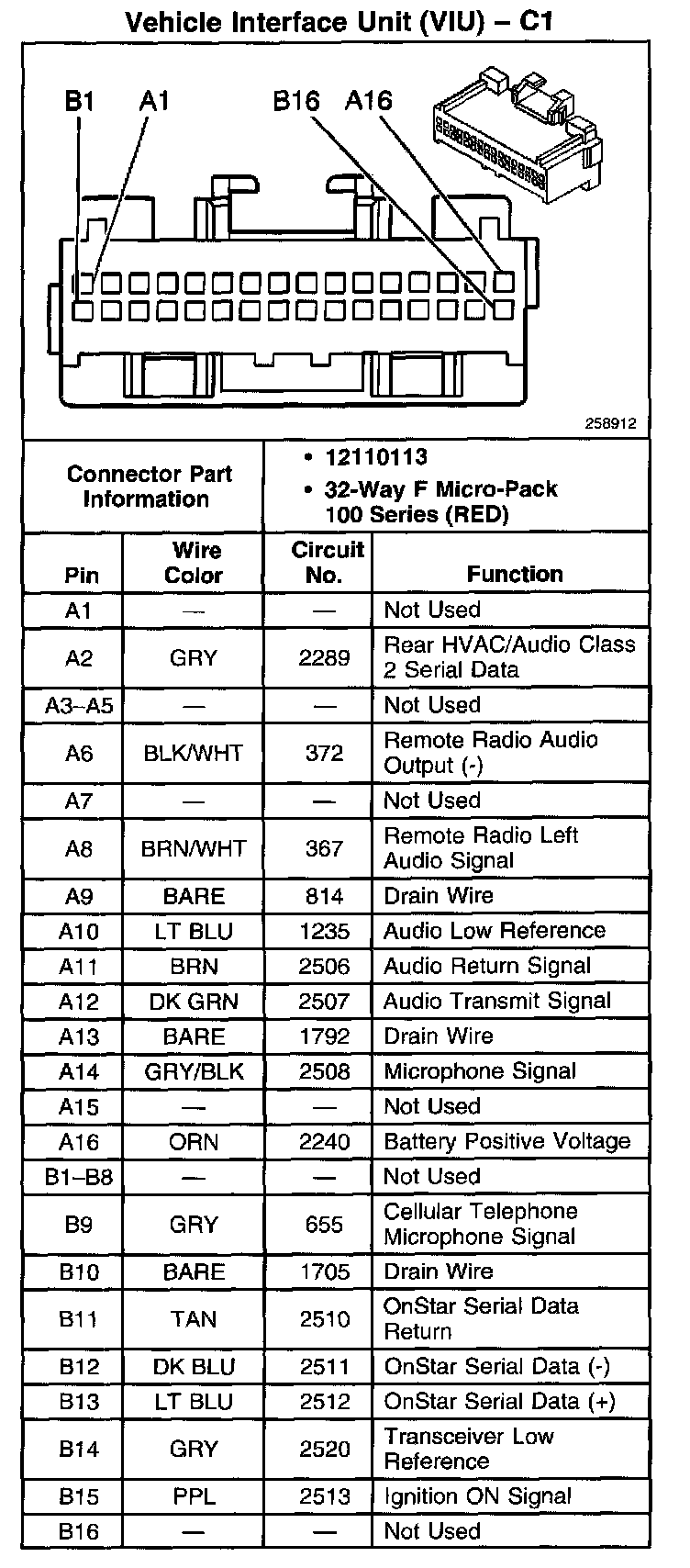

Vehicle Interface Unit (VIU) - C1:

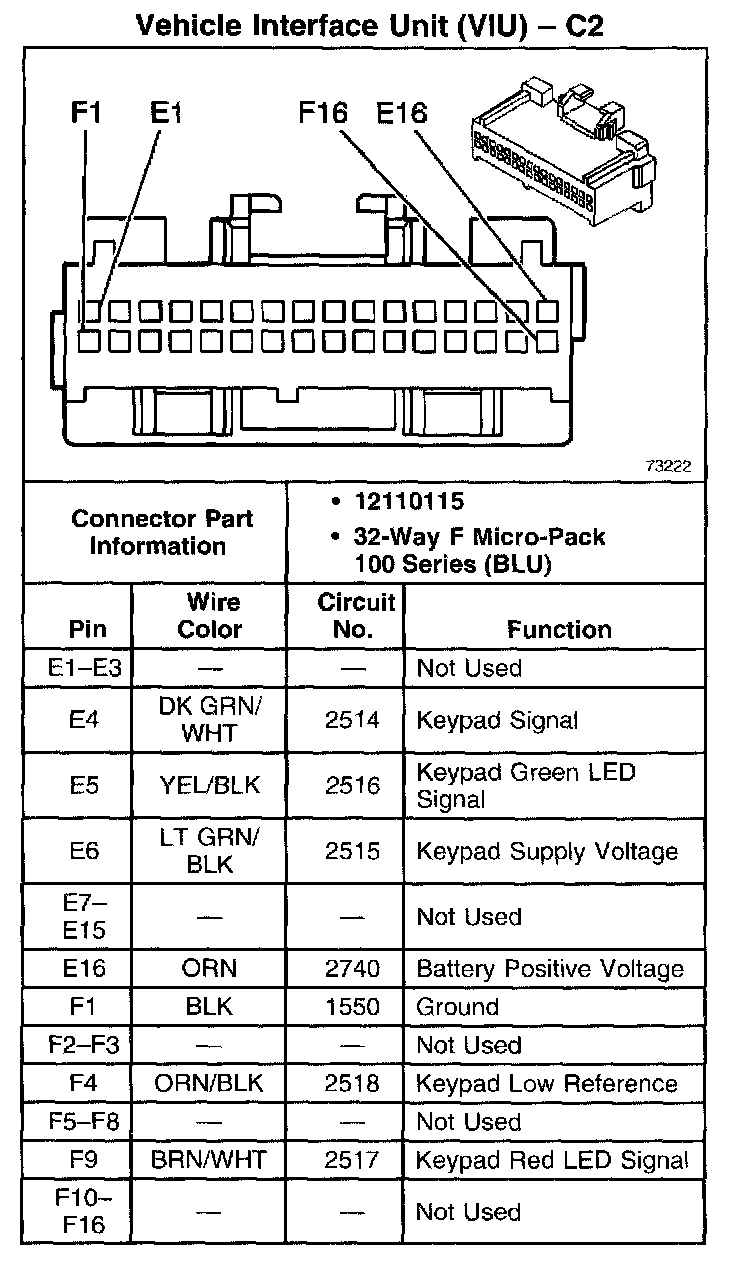

Vehicle Interface Unit (VIU) - C2:
