Cruise Control - Inoperative/Malfunctioning

DIAGNOSTIC AIDS

IMPORTANT: Perform the following in order to avoid misdiagnosis.
^ Inspect for proper operation of the brake lamps.
^ Inspect for proper operation of the transmission range switch.
^ Inspect throttle linkage for mechanical binding which could cause the system to malfunction.

TEST

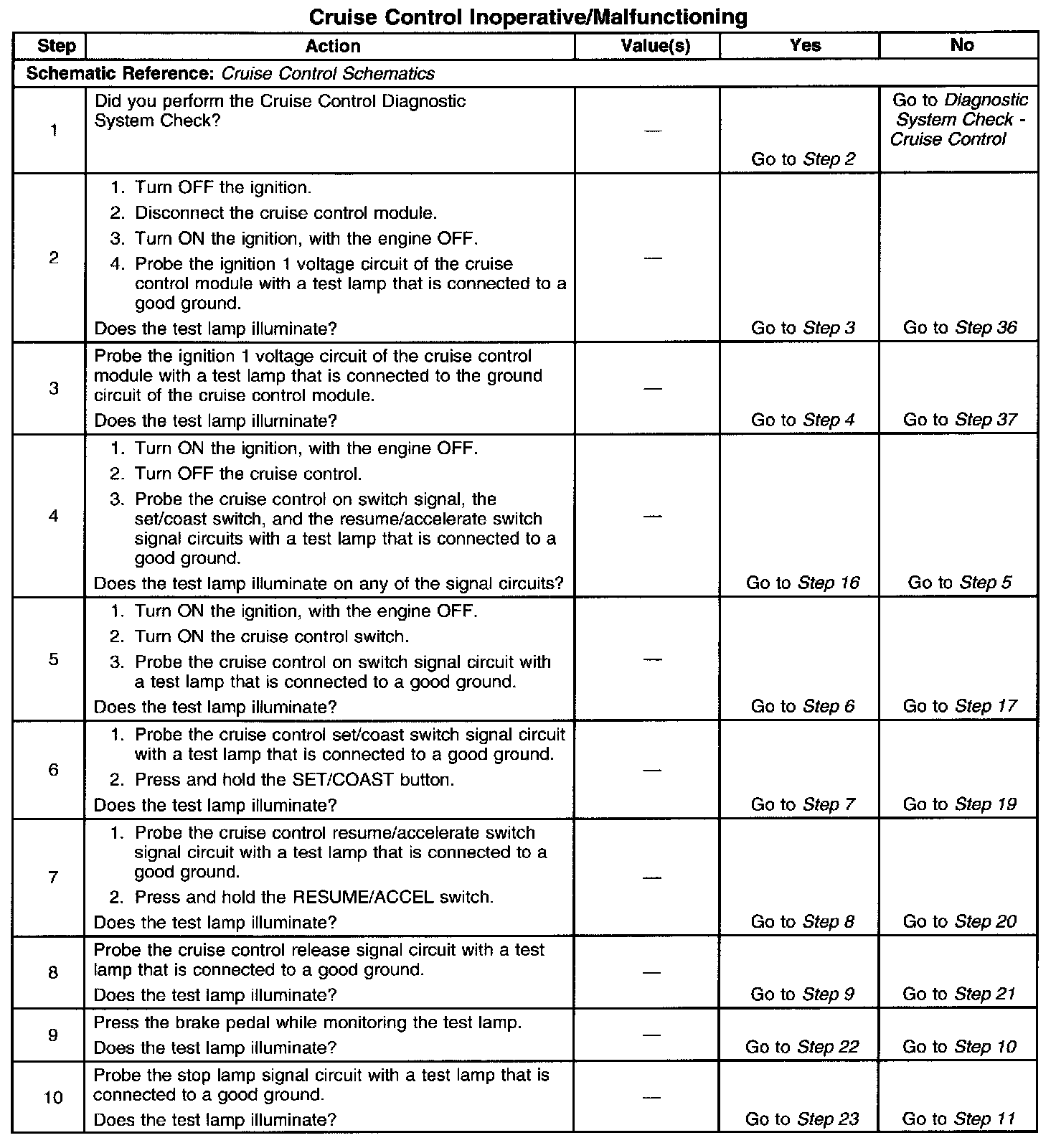

Steps 1-10:

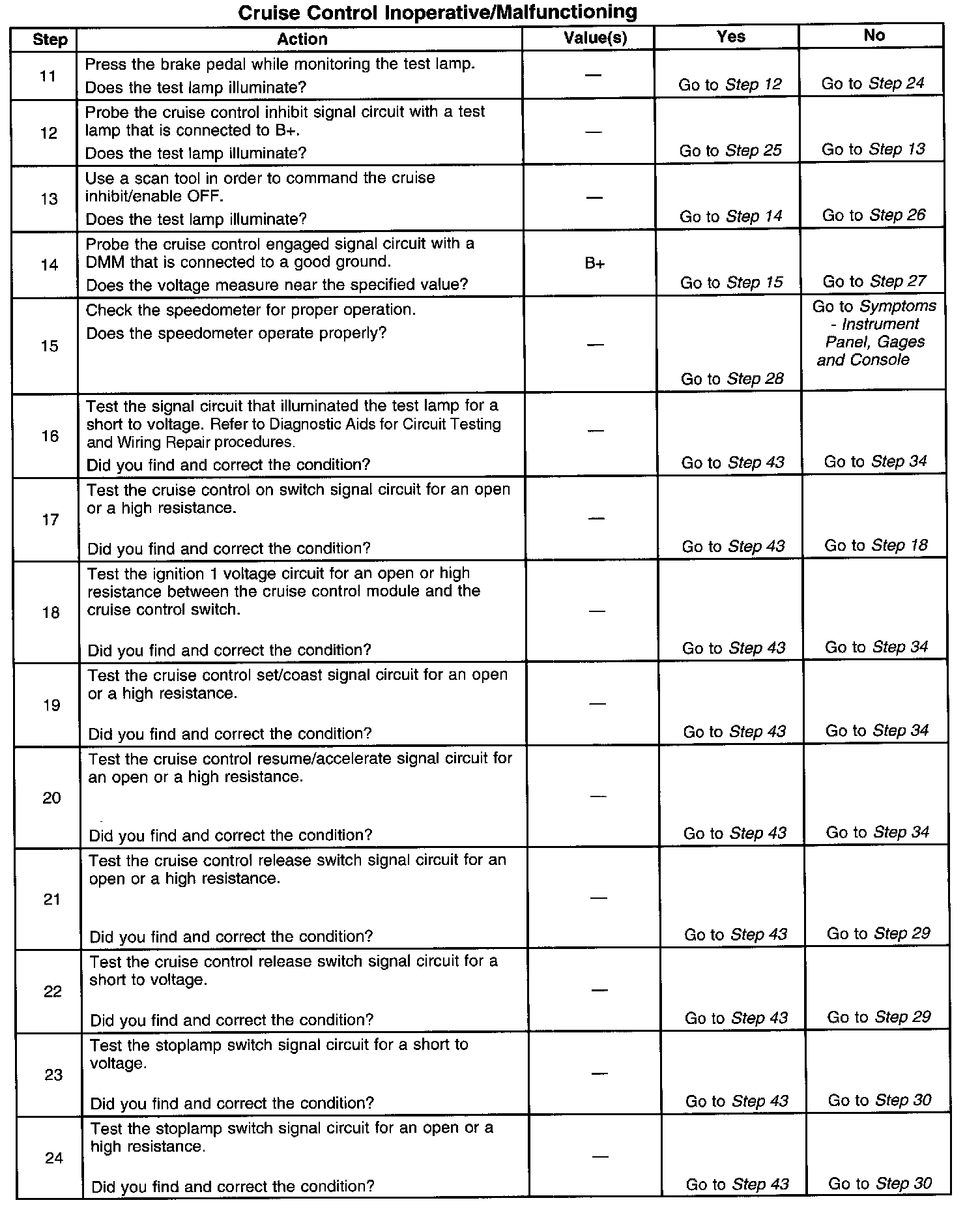

Steps 11-24:

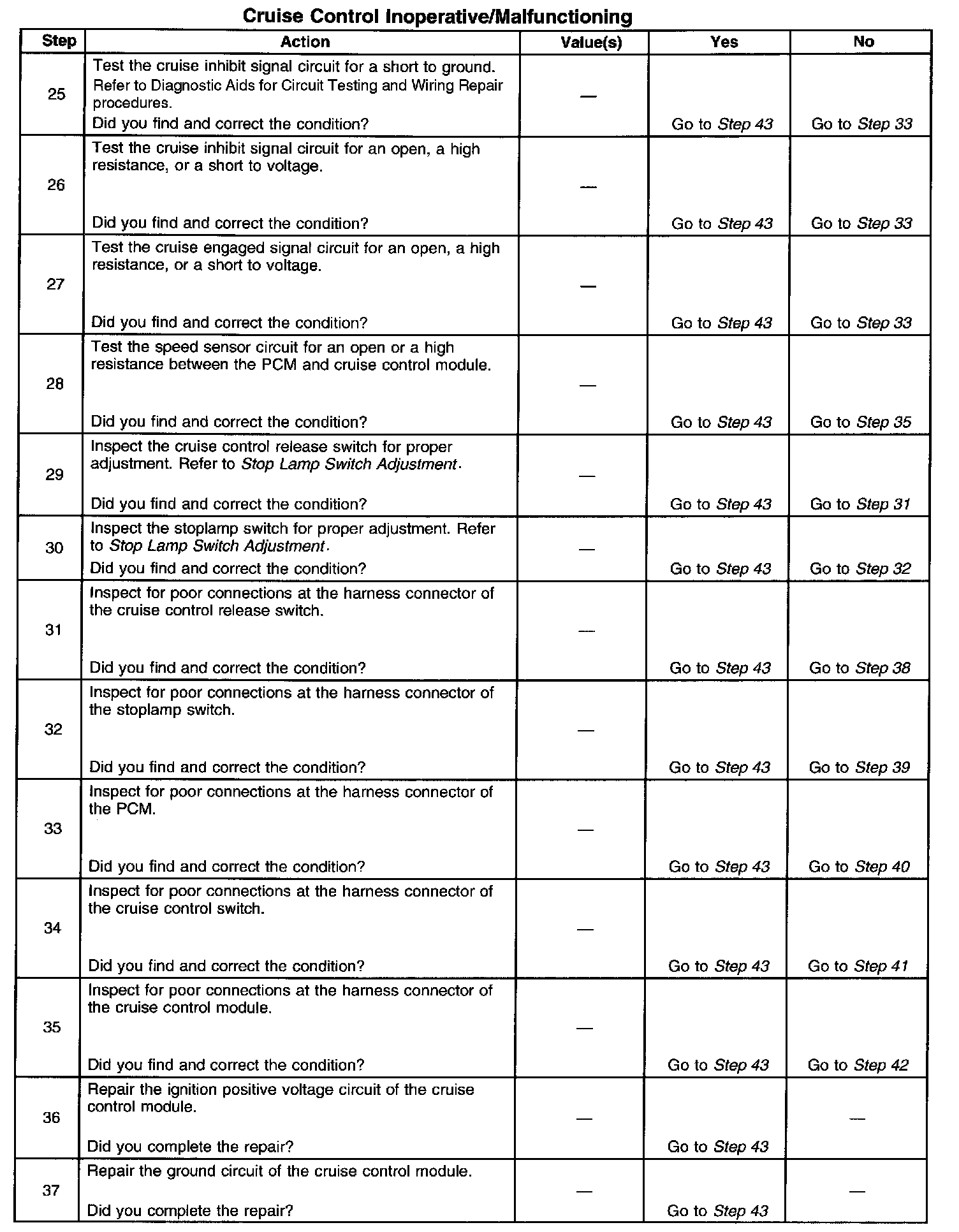

Steps 25-37:

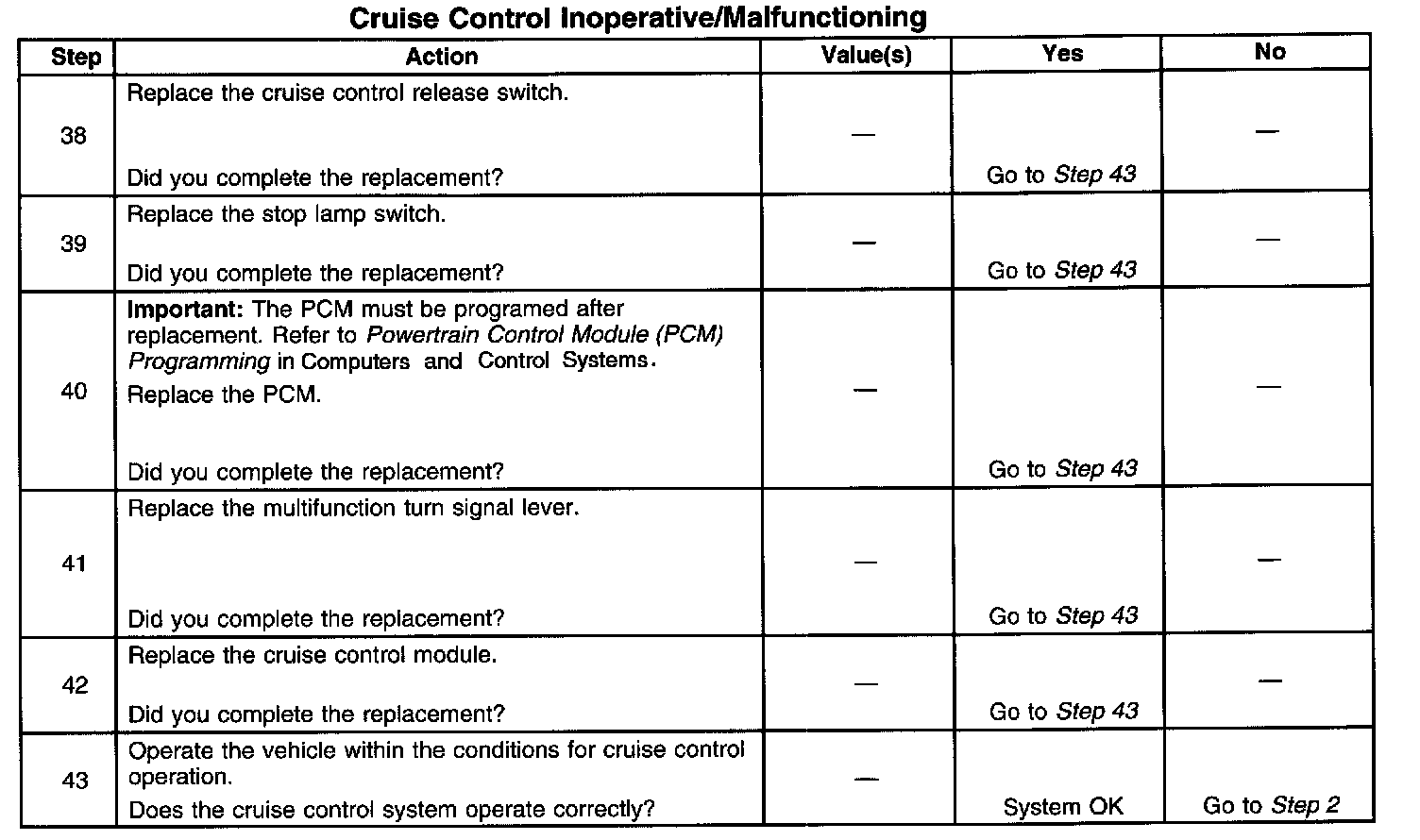

Steps 38-43:
