Automatic Level Control Suspension Component Views

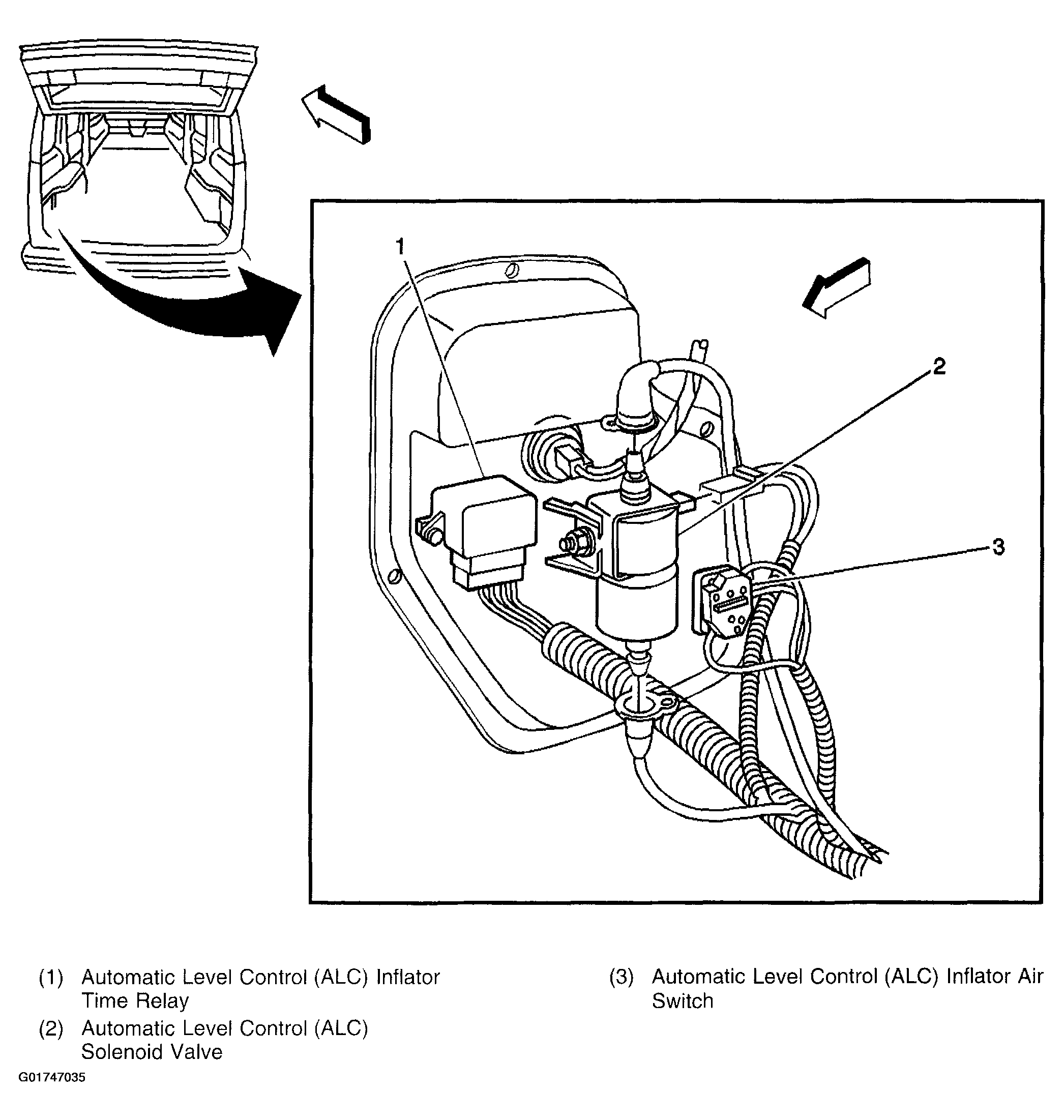

Fig 1: Relay, Switch and Solenoid Assembly
G01747035Courtesy of GENERAL MOTORS CORP.

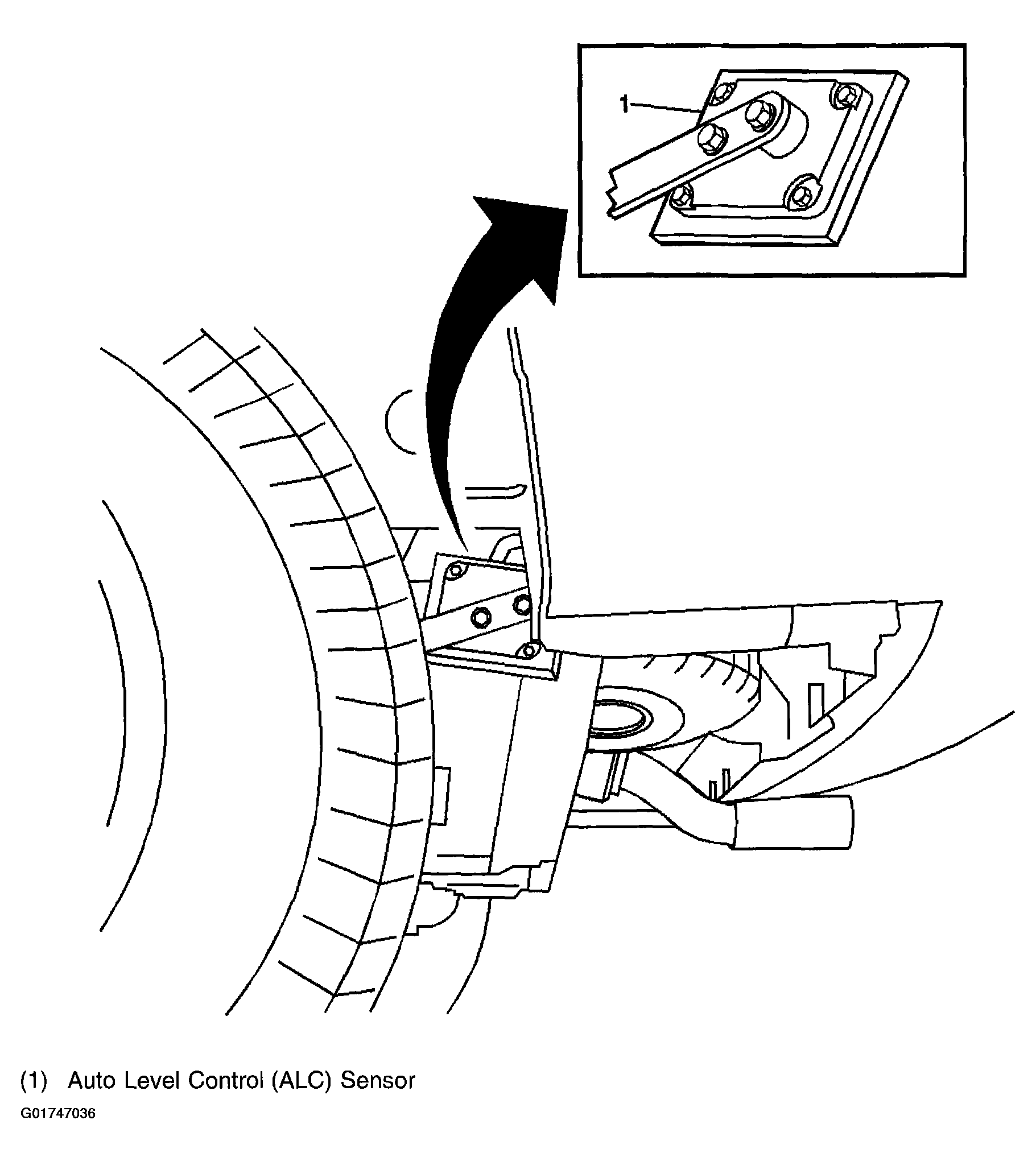

Fig 2: Automatic Level Control (ALC) Sensor
G01747036Courtesy of GENERAL MOTORS CORP.
