Installation Procedure

  1. Install the rear seat belt center retractor to the rear roof rail panel.

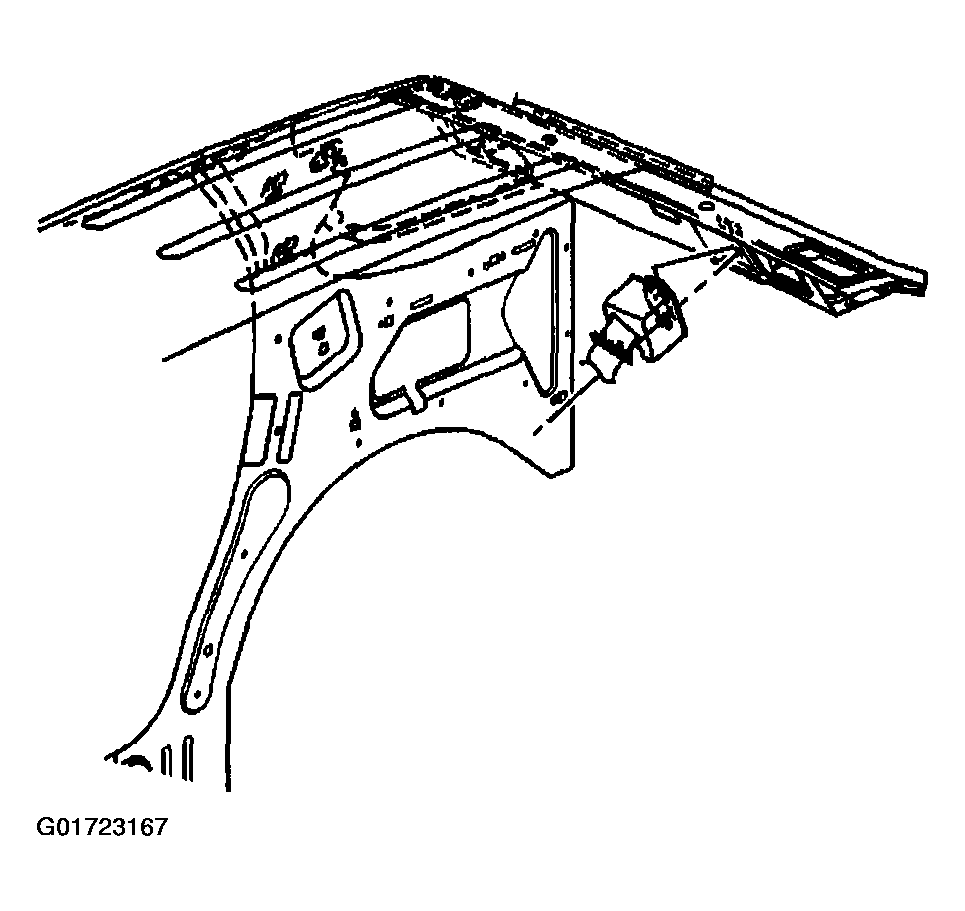

    Fig 1: Installing Rear Seat Belt Center Retractor
    G01723167Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolt to the rear seat belt center retractor.

    Tighten

    Tighten the rear seat belt center retractor bolt to 35 N.m (26 lb ft).

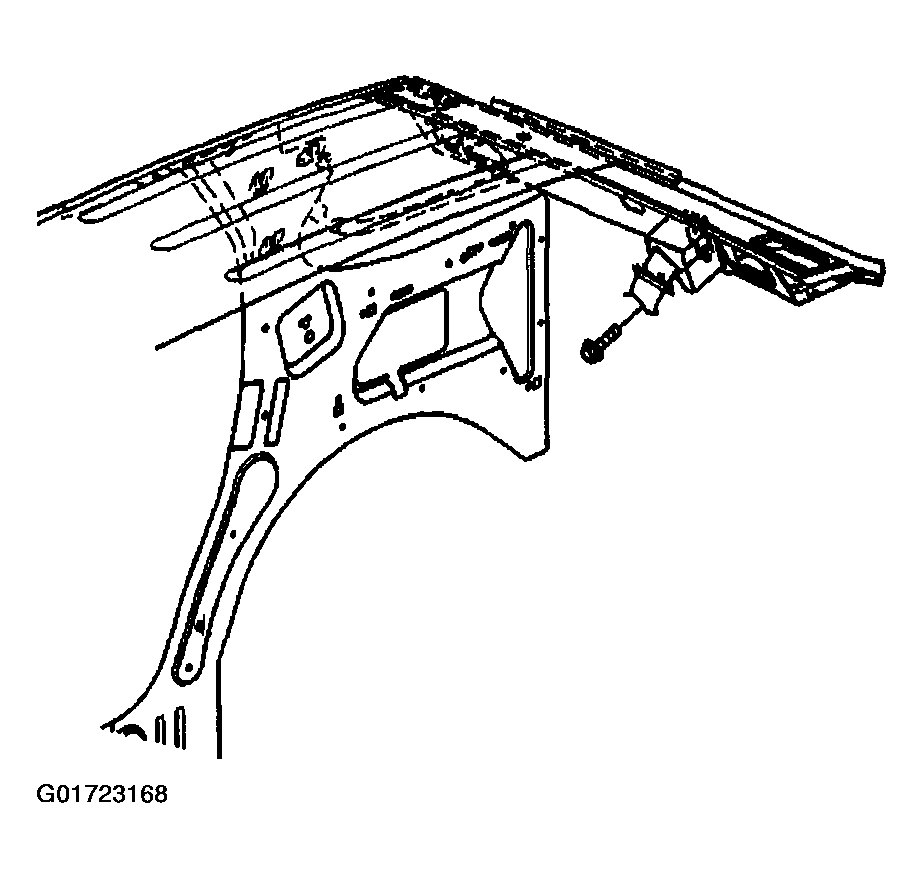

    Fig 2: Installing Rear Seat Belt Center Retractor Bolt
    G01723168Courtesy of GENERAL MOTORS CORP.
  3. Install the rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER .

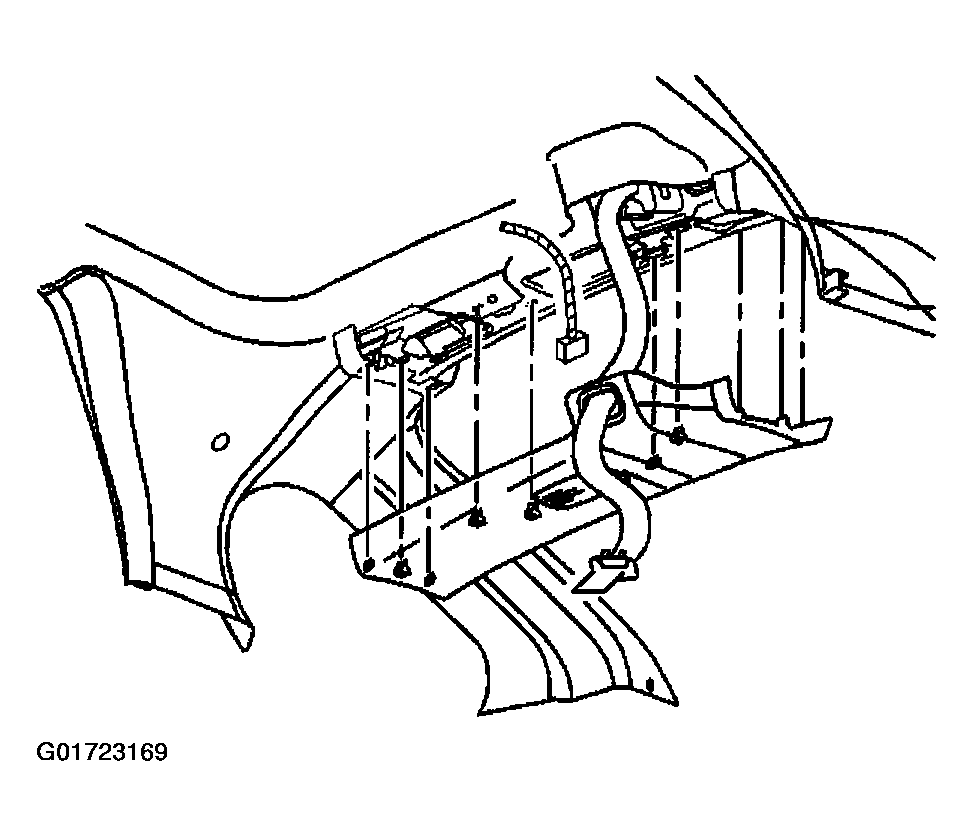

    Fig 3: Installing Rear Upper Garnish Molding
    G01723169Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat belt center latch to buckle.

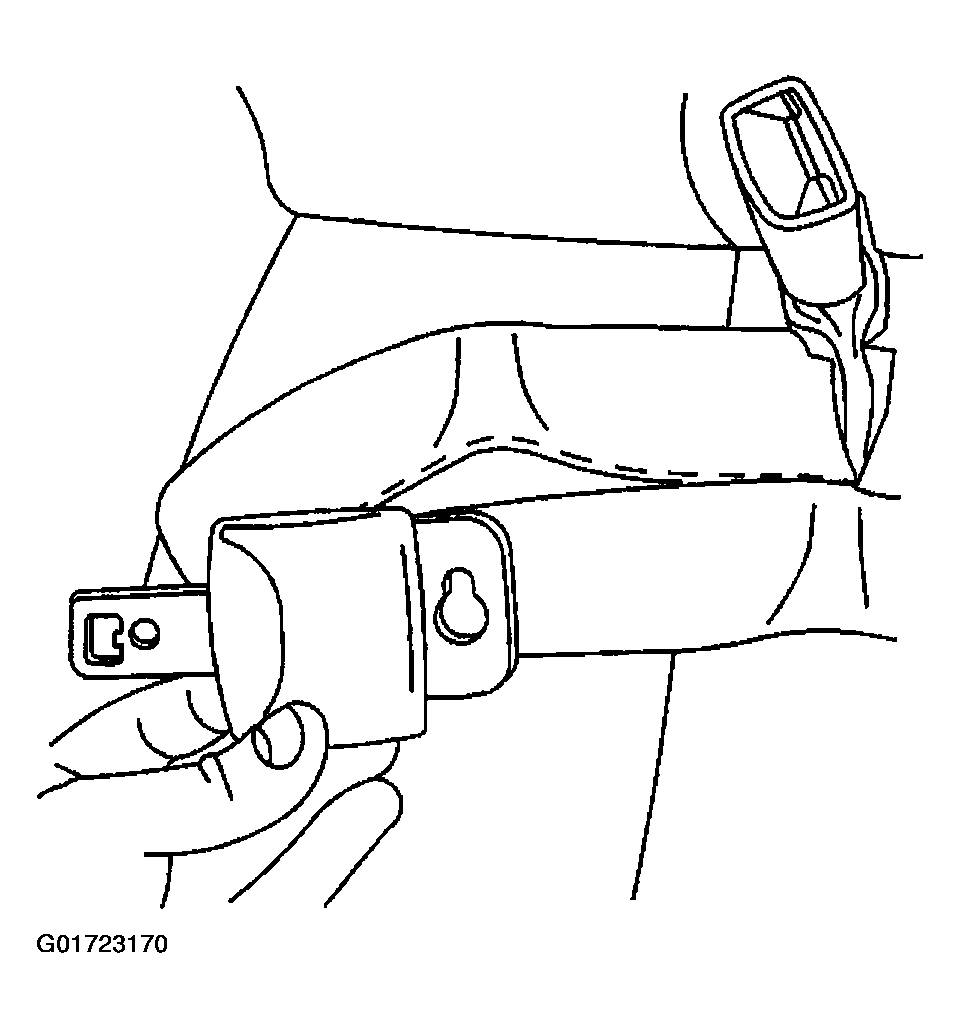

    Fig 4: Installing Rear Seat Belt Center Latch To Buckle
    G01723170Courtesy of GENERAL MOTORS CORP.
