Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push on the end of the strut in order to install the lower end of the liftgate window strut to the ball stud on the liftgate.

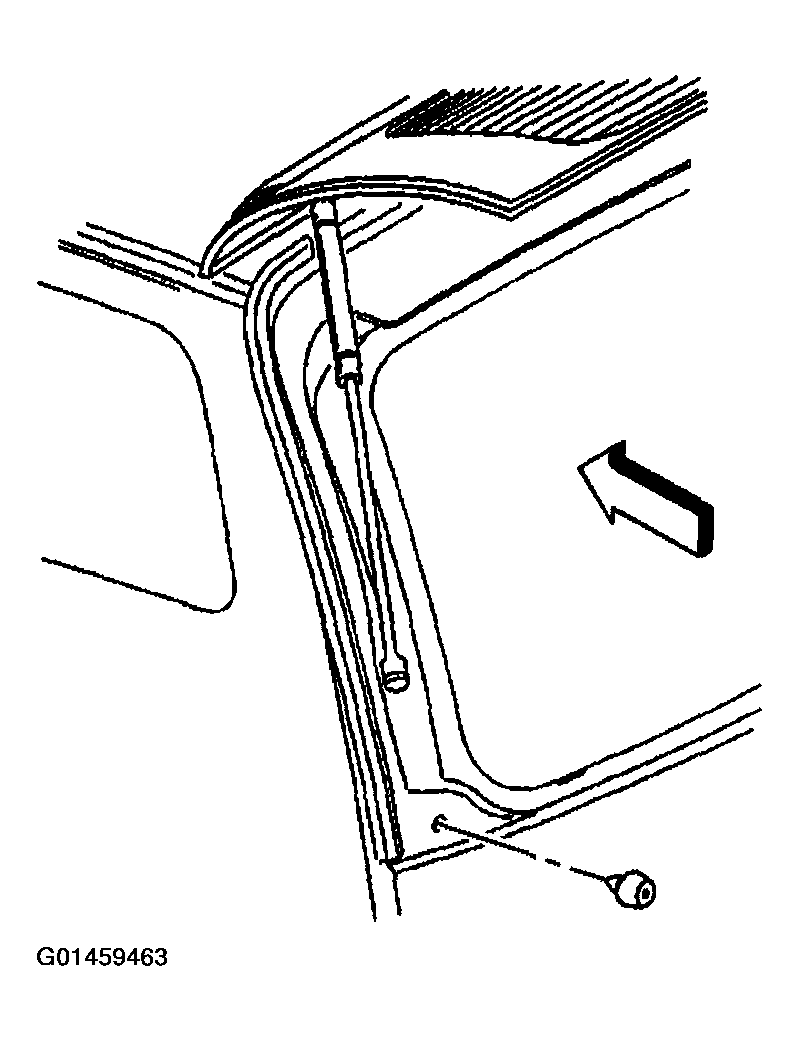

    2. Fig 1: Installing Strut - Lift Gate Window
    G01459463Courtesy of GENERAL MOTORS CORP.
  2. Push on the end of the strut in order to install the lower end of the liftgate window strut to the ball stud on the window assembly.
  3. Close the liftgate window.
