Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender sound insulator (3) to the vehicle.
  2. Install the front fender insulator retainers (1) and (2) to the fender.
  3. Install the front wheelhouse panel liner. Refer to Front Fender Liner Replacement .

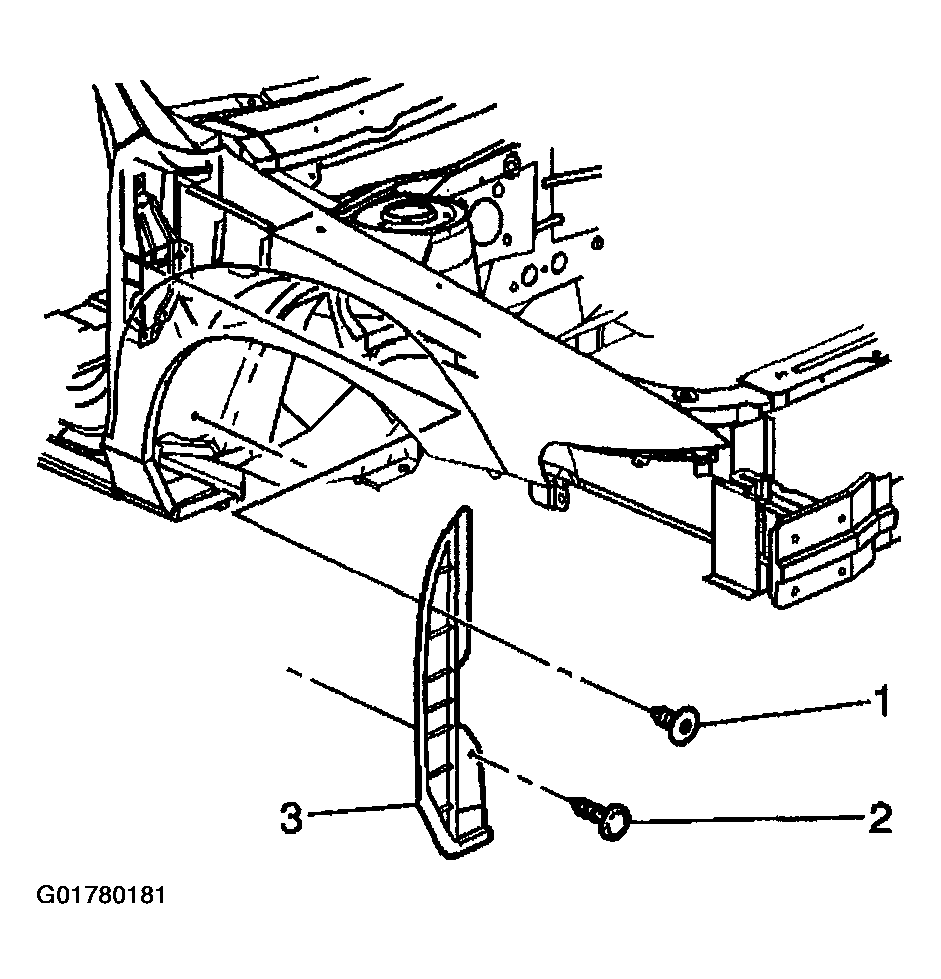

    Fig 1: Installing Front Fender Sound Insulator
    G01780181Courtesy of GENERAL MOTORS CORP.
