Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Drain the coolant. Refer to Draining and Filling Cooling System  .
  3. Pull the Drain Cock out of the radiator body.
  4. Clean or replace the seal and the stem as necessary.

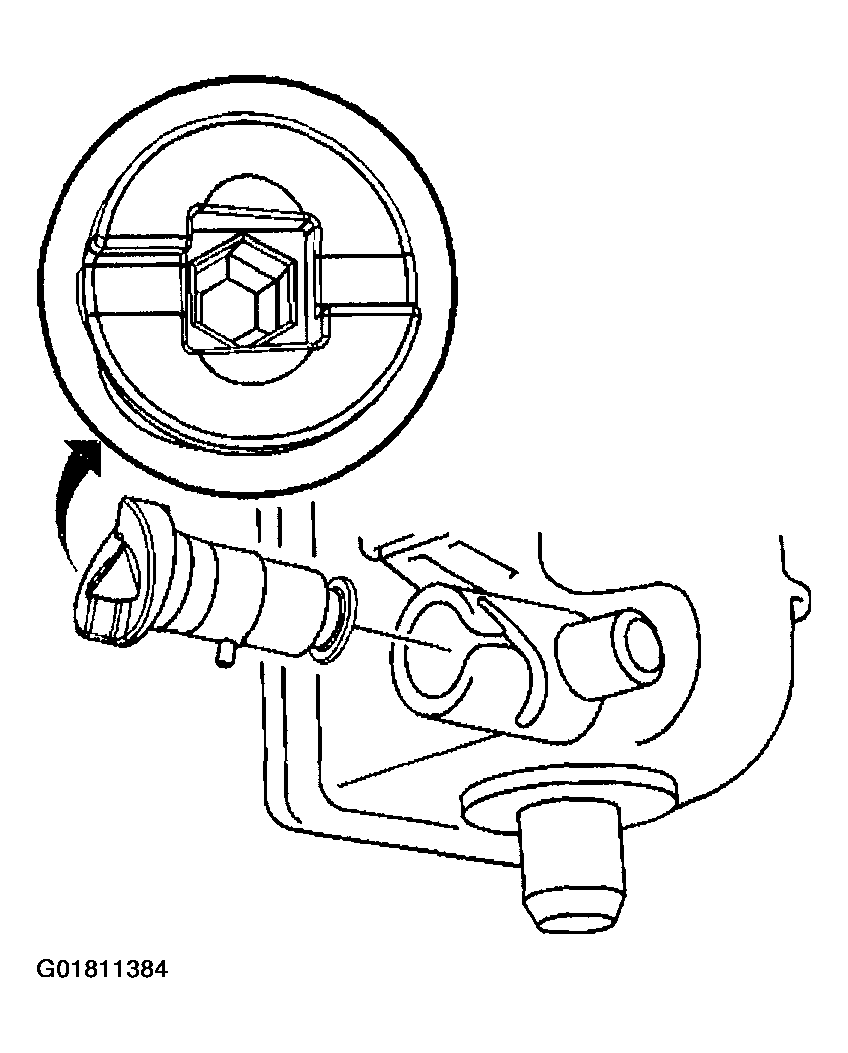

    Fig 1: Removing Drain Cock
    G01811384Courtesy of GENERAL MOTORS CORP.
