Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat back to the seat back recliner.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat back recliner bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

    Fig 1: Installing Seat Back
    G01780531Courtesy of GENERAL MOTORS CORP.
  3. Reposition the seat back cover to a desired appearance.

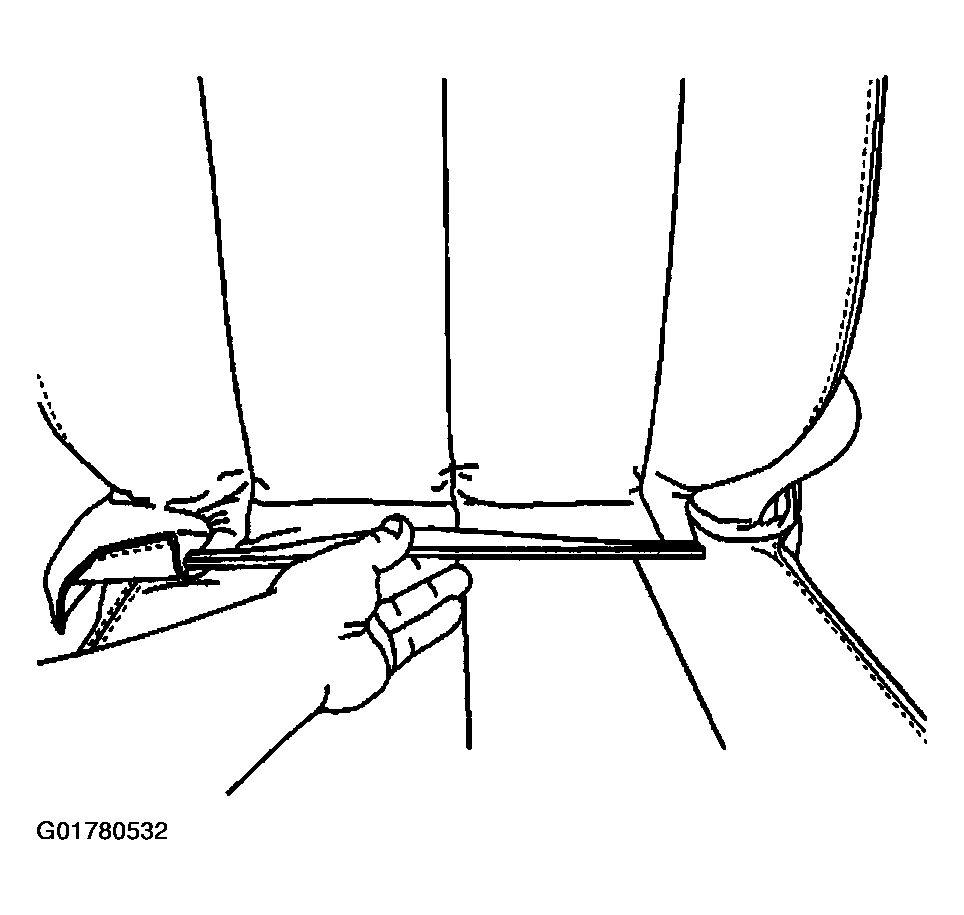

    Fig 2: Repositioning Seat Back Cover
    G01780532Courtesy of GENERAL MOTORS CORP.
  4. Fasten the J-hook retainer at the bottom of the seat back cover.

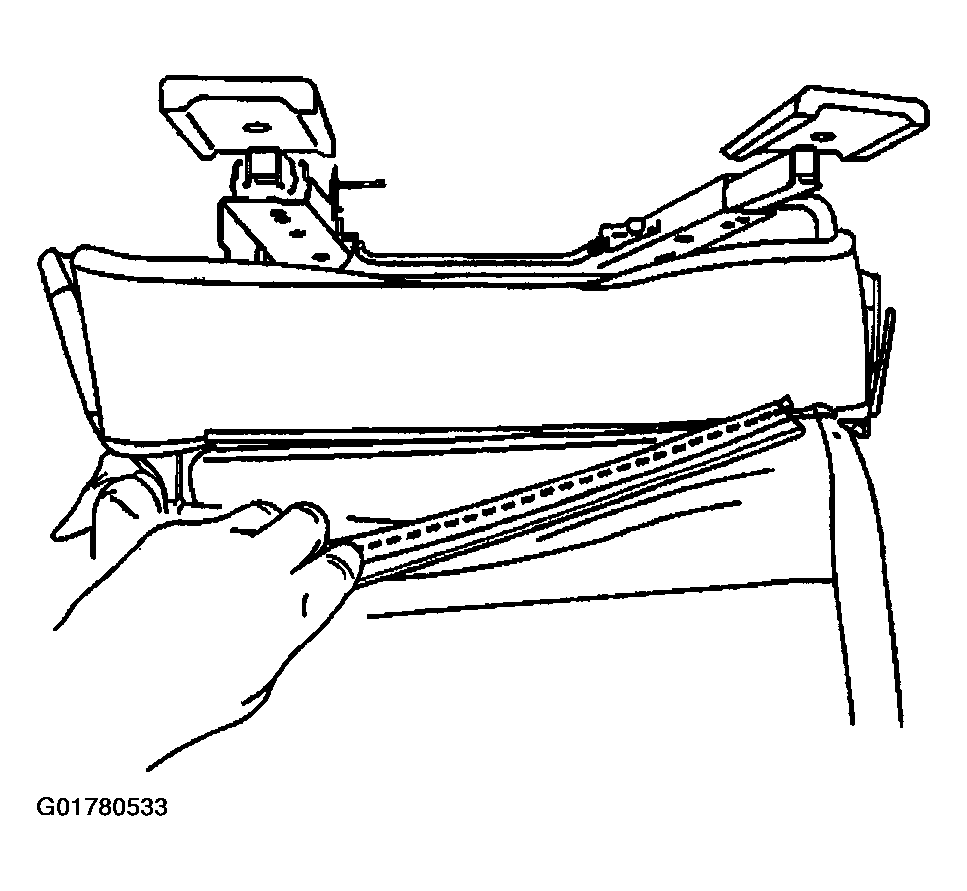

    5. Fig 3: Fastening J-Hook Retainers
    G01780533Courtesy of GENERAL MOTORS CORP.
  5. Install the bucket seat. Refer to Seat Replacement  .
  6. Return the seat back to the original position.
