Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back cushion cover. Refer to Seat Back Cover Replacement - Front .
  2. Remove the seat back pad from the seat back frame.
  3. Remove the seat back recliner bolts.
  4. Remove the seat back frame from the seat back recliner.

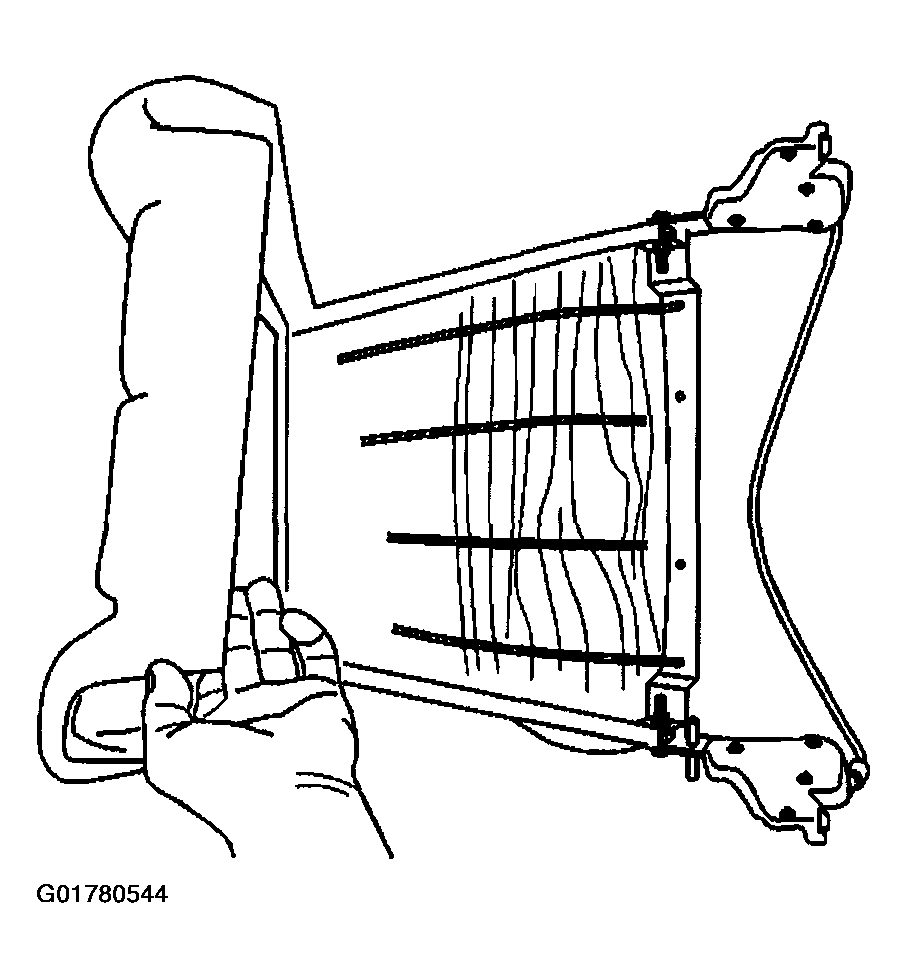

    Fig 1: Removing Front Seat Back Frame
    G01780544Courtesy of GENERAL MOTORS CORP.
