Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.

Install the EBCM (1) to the BPMV (2).
Tighten

Tighten the 4 screws that connect the EBCM (1) to the BPMV (2) to 5 N.m (44 lb in).

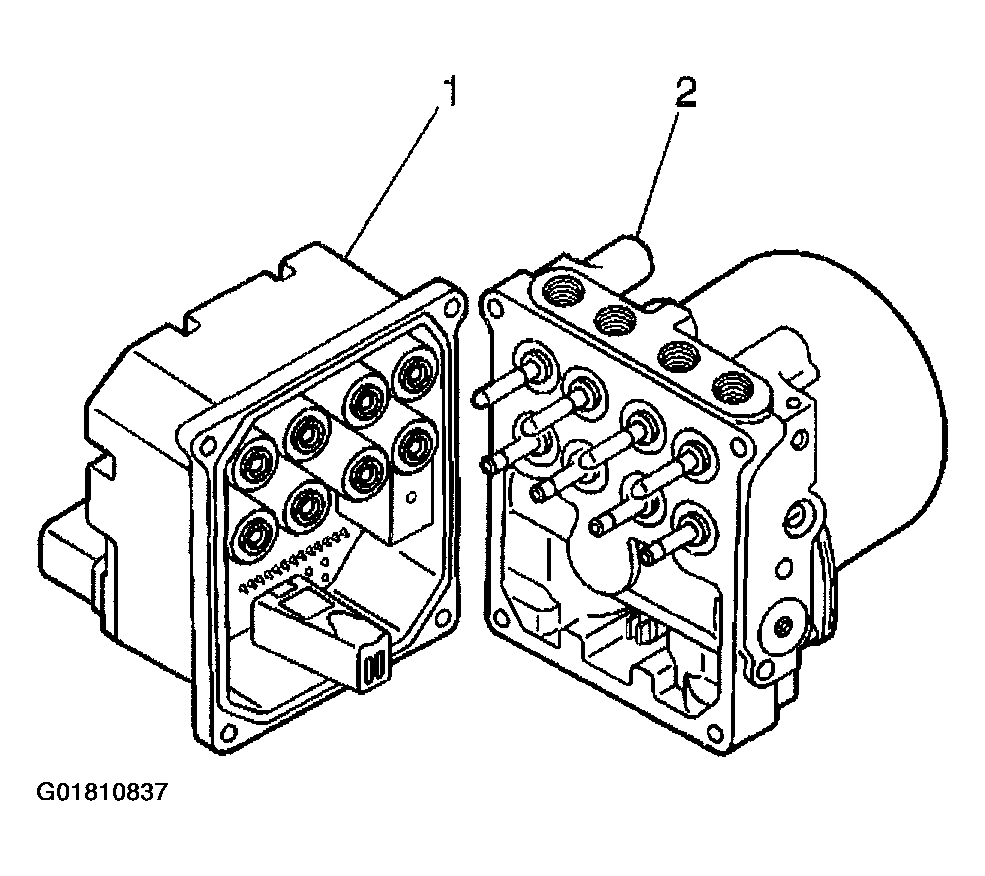

Fig 1: Installing EBCM To BPMV
Courtesy of GENERAL MOTORS CORP.
Install the EBCM/BPMV assembly (3) to the vehicle.
Install the BPMV retaining nut (2).
Tighten

Tighten the retaining nut to 10 N.m (7 lb ft).

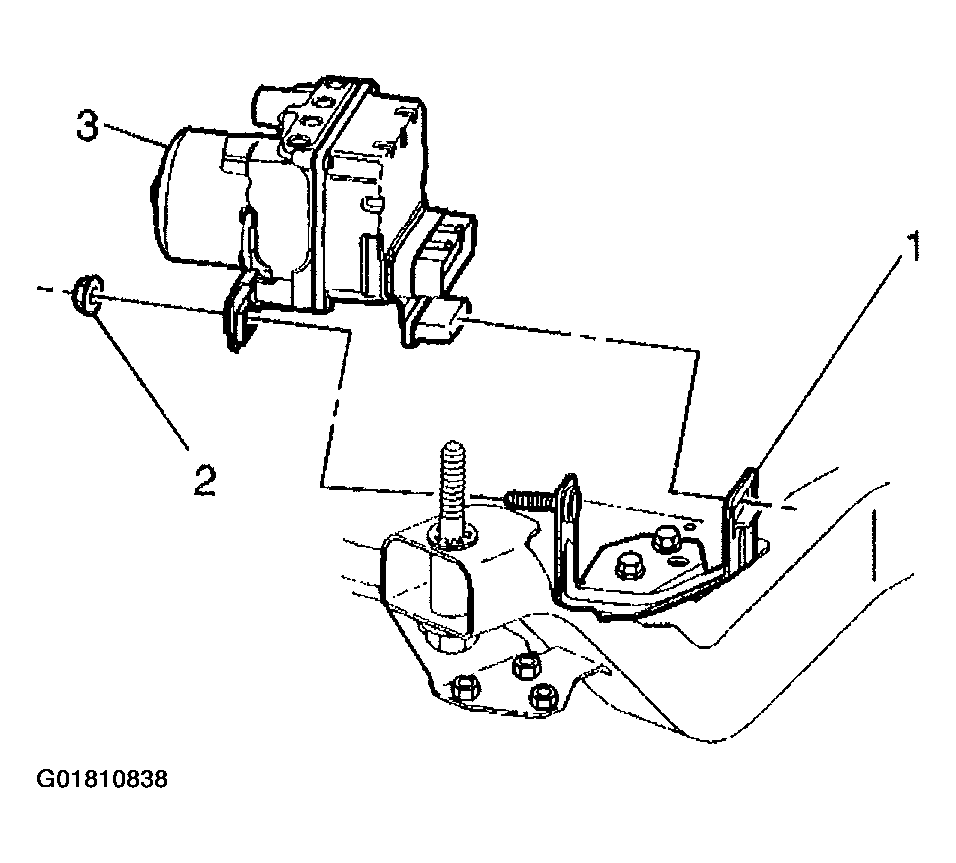

Fig 2: Installing EBCM/BPMV Assembly
Courtesy of GENERAL MOTORS CORP.
Connect the EBCM harness connector (2) to the EBCM (1).

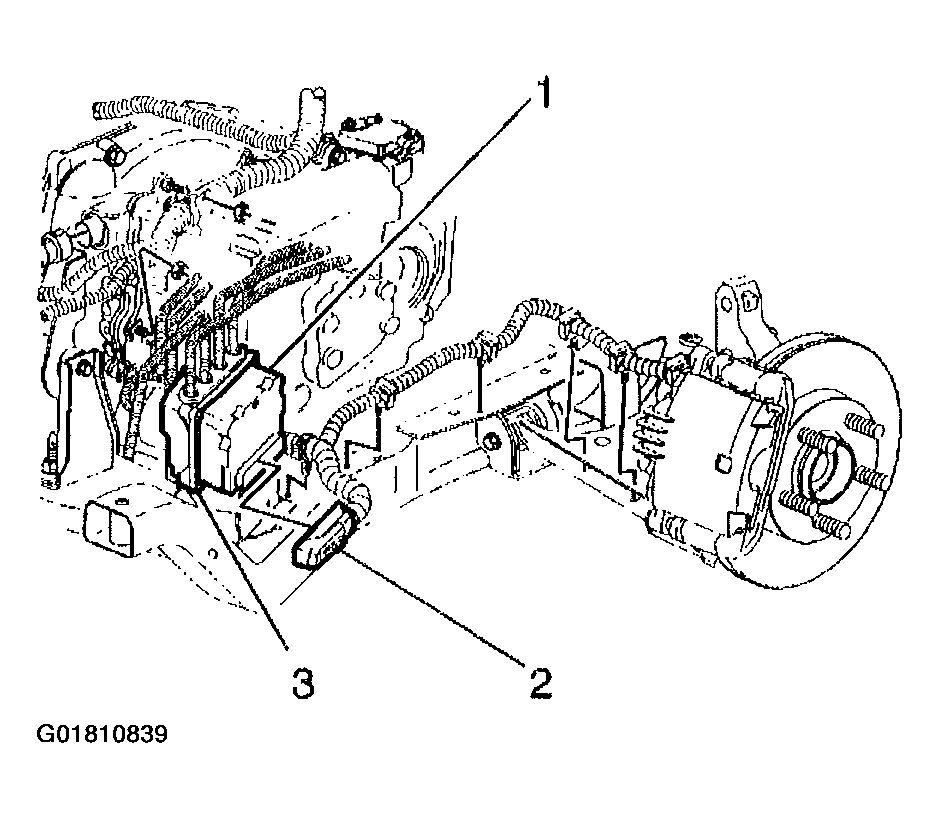

Fig 3: Connecting EBCM Harness Connector
Courtesy of GENERAL MOTORS CORP.
Push down the lock tab (1) and then move the sliding connector cover back in the home position to lock.
Insert the CPA (2) back into place.
Install the left engine splash shield.
Install the front engine splash shield.
Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

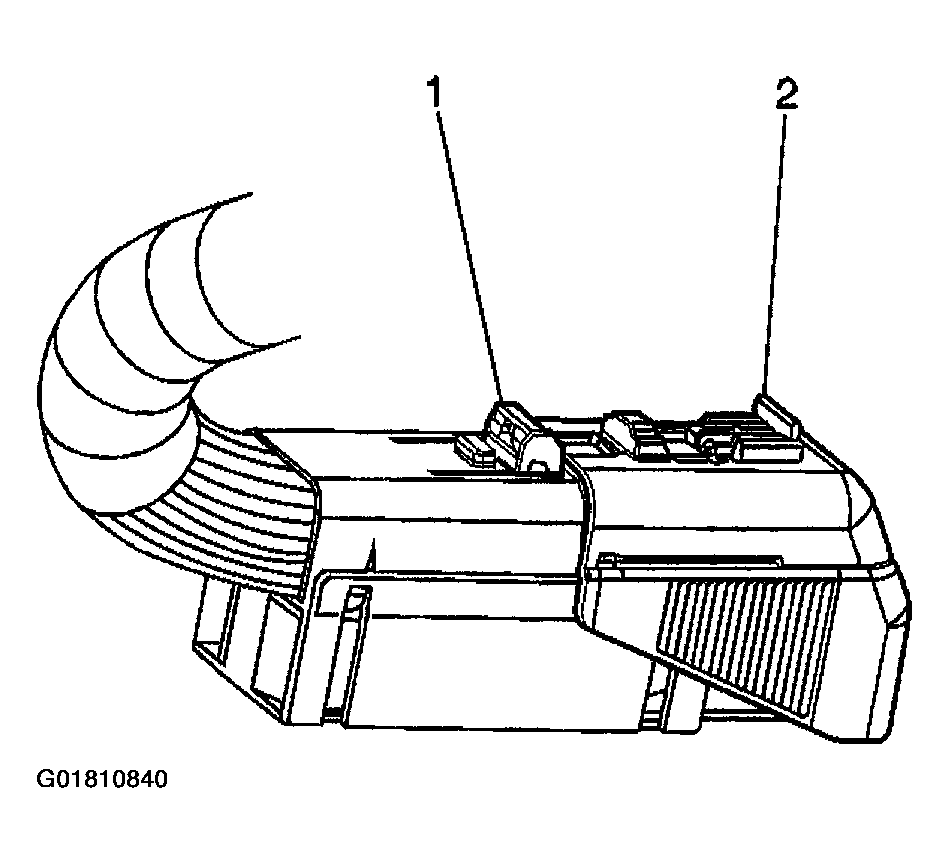

Fig 4: Installing Lock Tab
Courtesy of GENERAL MOTORS CORP.

WARNING: Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Antilock stop.
Connect the master cylinder brake pipes (1) to the BPMV (3).
Tighten

Tighten the brake pipe fittings to 24 N.m (18 lb ft).
Connect the caliper and wheel cylinder brake pipes (2) to the BPMV (3).
Tighten

Tighten the brake pipe fittings to 24 N.m (18 lb ft).

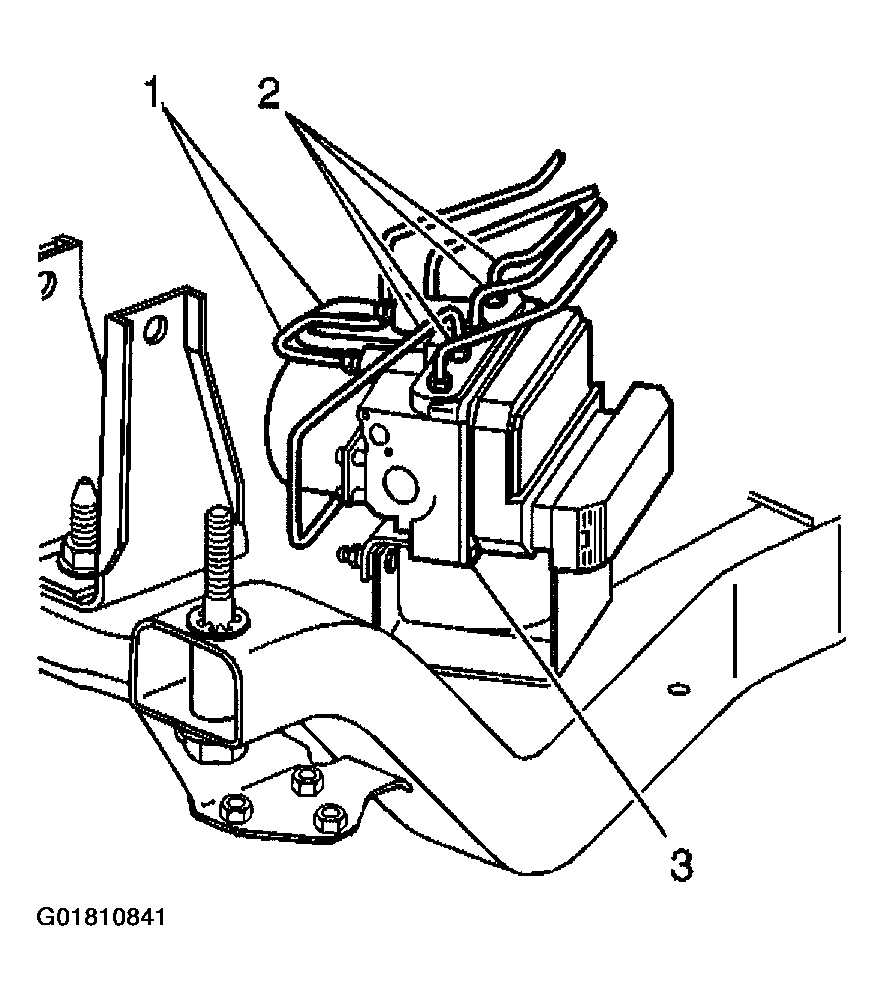

Fig 5: Locating Wheel Cylinder Brake Pipes, BPMV & Master Cylinder Brake Pipes

Courtesy of GENERAL MOTORS CORP.

Install the battery tray.
Install the battery. Refer to BATTERY REPLACEMENT in Engine Electrical.
Perform the Diagnostic System Check - ABS .
