Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille from the vehicle. Refer to GRILL REPLACEMENT (CHEVROLET) or GRILLE REPLACEMENT (GMC) .
  2. Remove the push pin retainer from the sensor mounted on the radiator support brace.

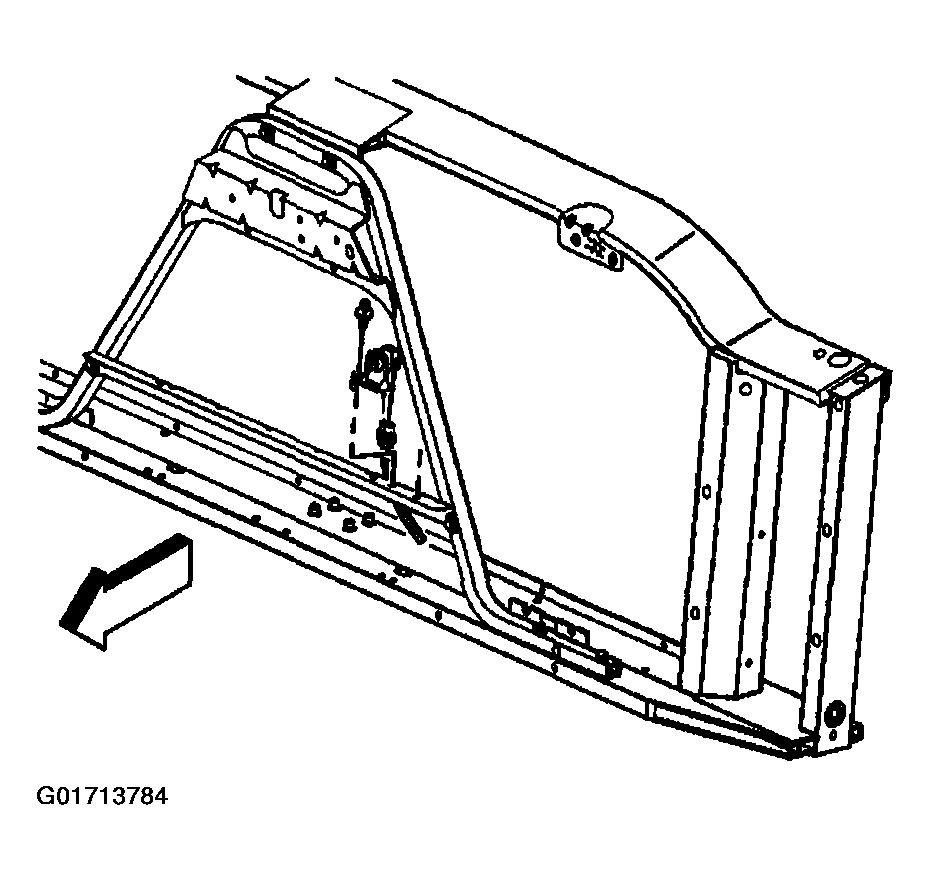

    3. Fig 1: Radiator Support Brace
    G01713784Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the sensor.
