Indicator/Warning Message Description and Operation: Notes

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

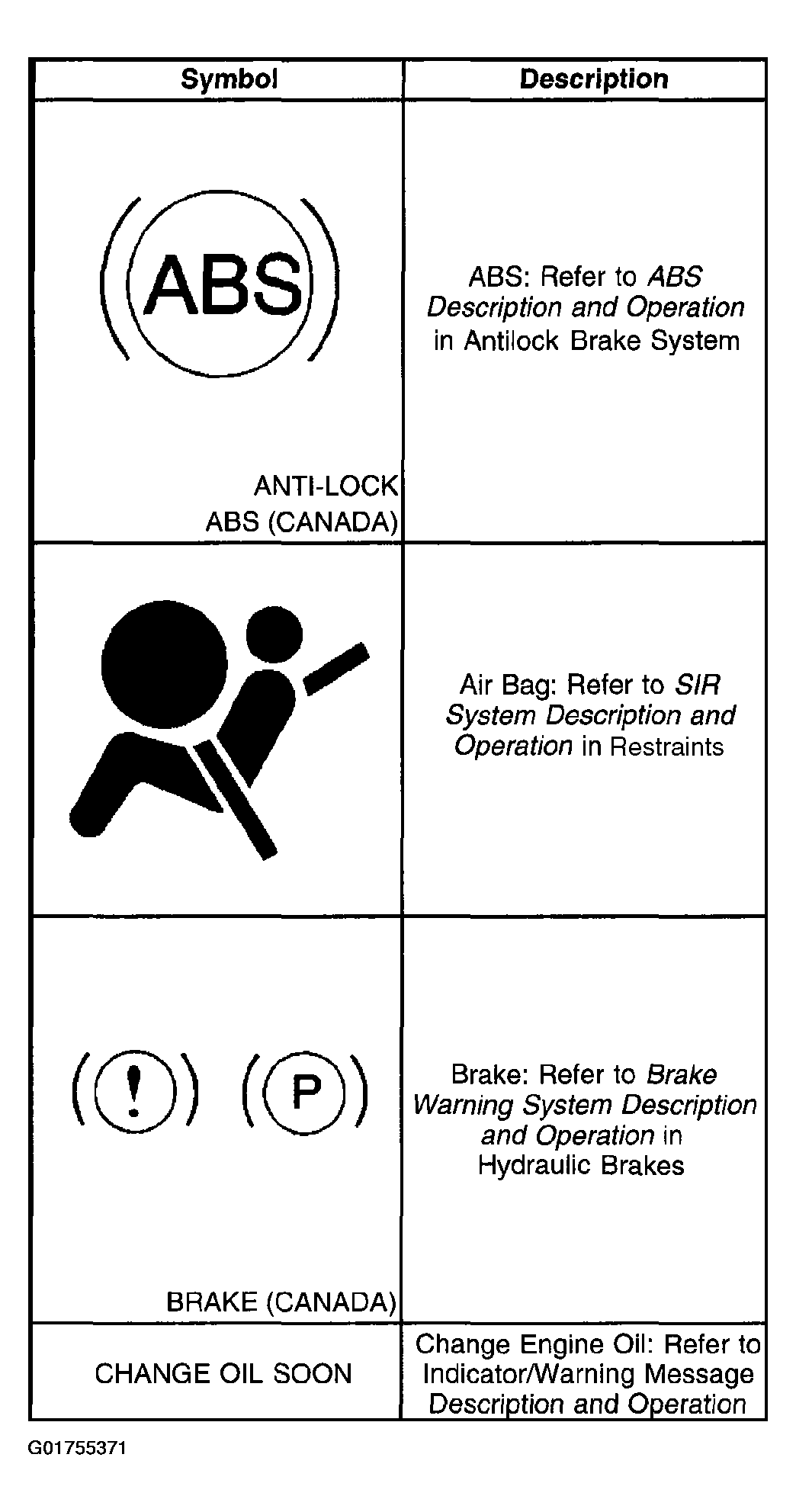

Fig 1: Identifying Indicator/Warning Message Symbols & Descriptions (1 Of 4)
G01755371Courtesy of GENERAL MOTORS CORP.

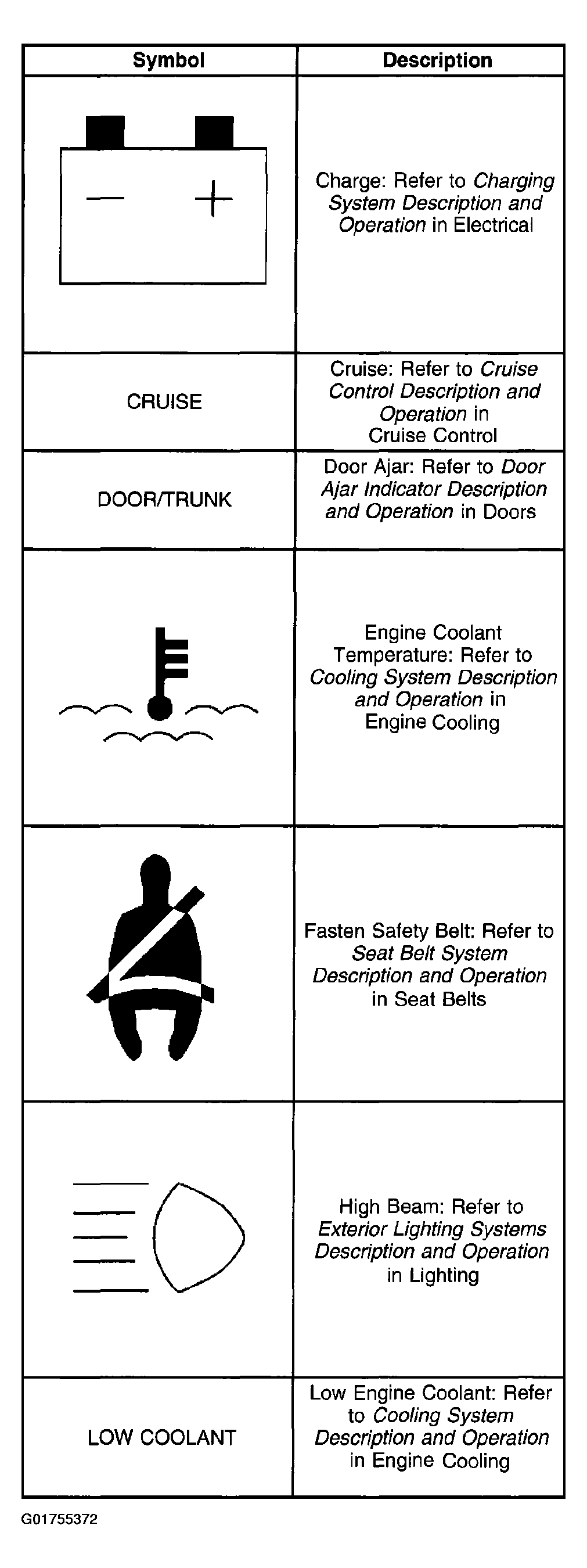

Fig 2: Identifying Indicator/Warning Message Symbols & Descriptions (2 Of 4)
G01755372Courtesy of GENERAL MOTORS CORP.

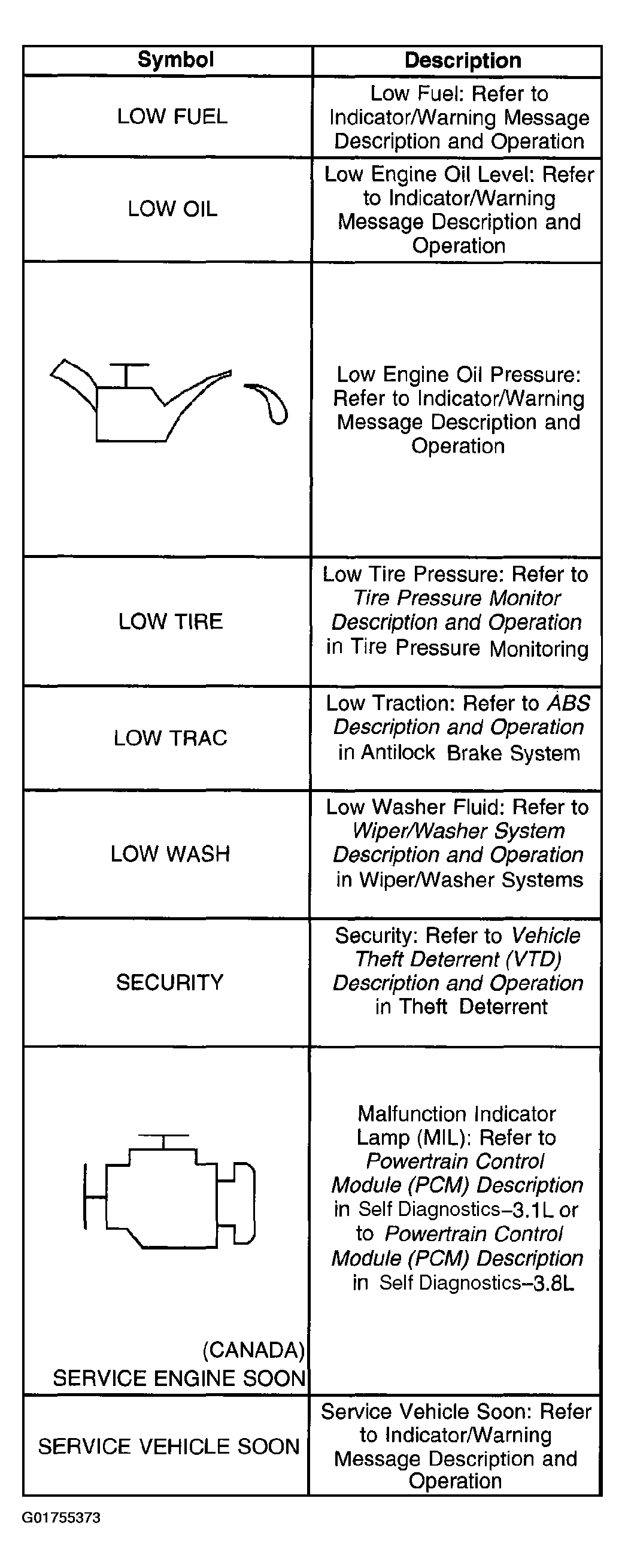

Fig 3: Identifying Indicator/Warning Message Symbols & Descriptions (3 Of 4)
G01755373Courtesy of GENERAL MOTORS CORP.

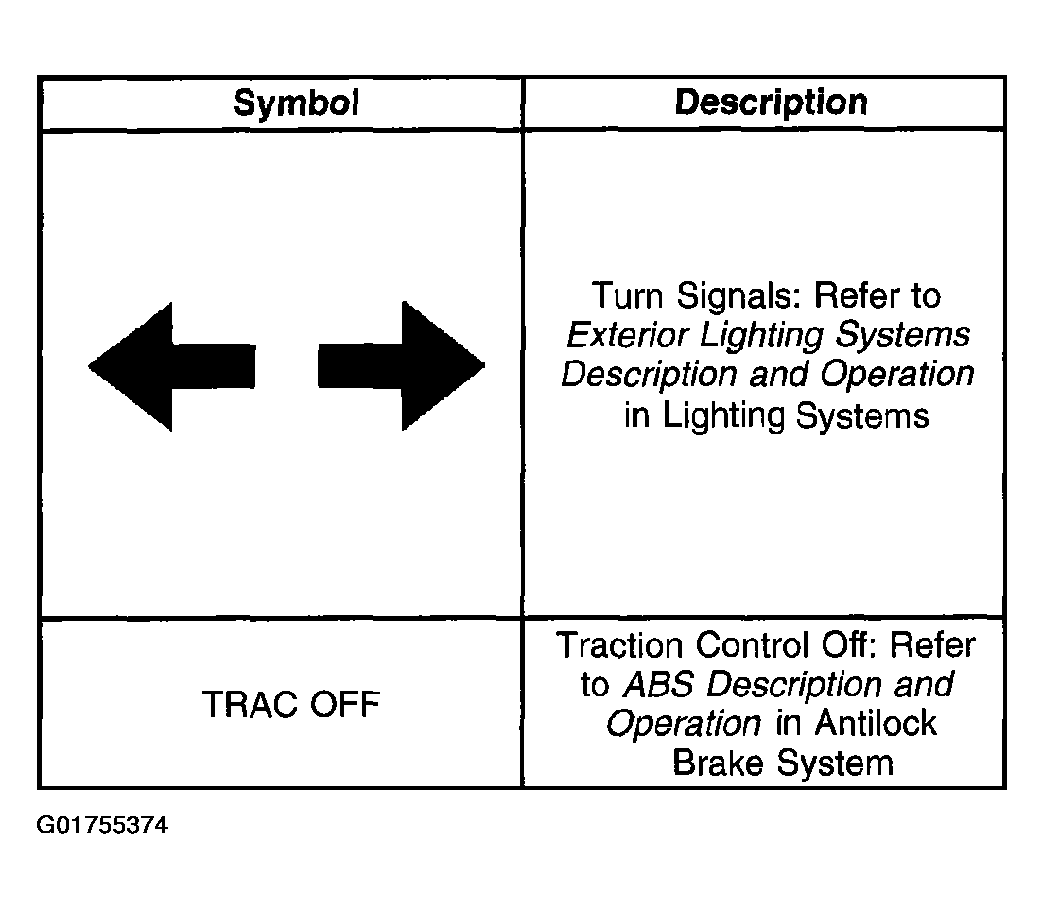

Fig 4: Identifying Indicator/Warning Message Symbols & Descriptions (4 Of 4)
G01755374Courtesy of GENERAL MOTORS CORP.
