Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

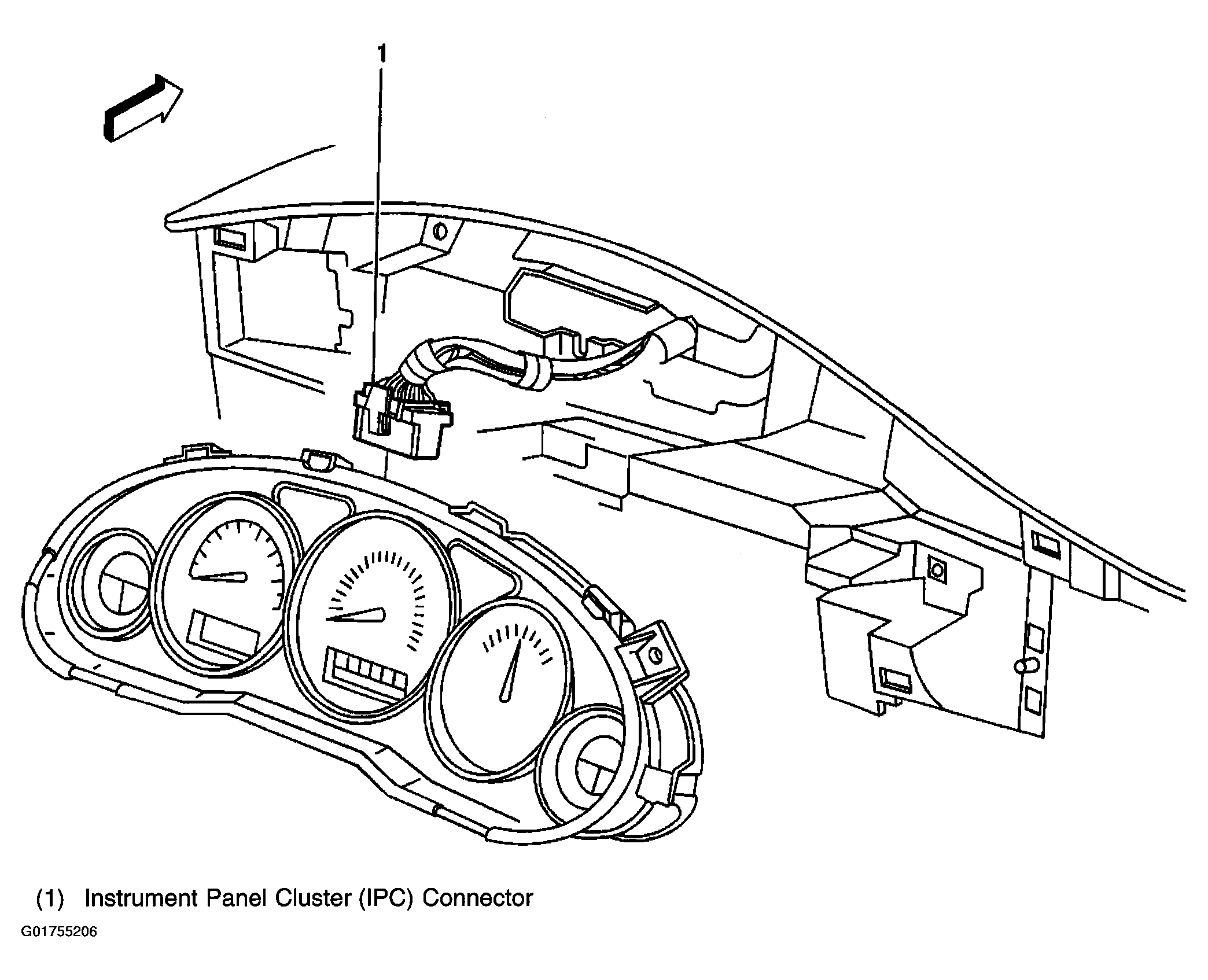

Fig 1: Identifying Instrument Panel Cluster Components
G01755206Courtesy of GENERAL MOTORS CORP.

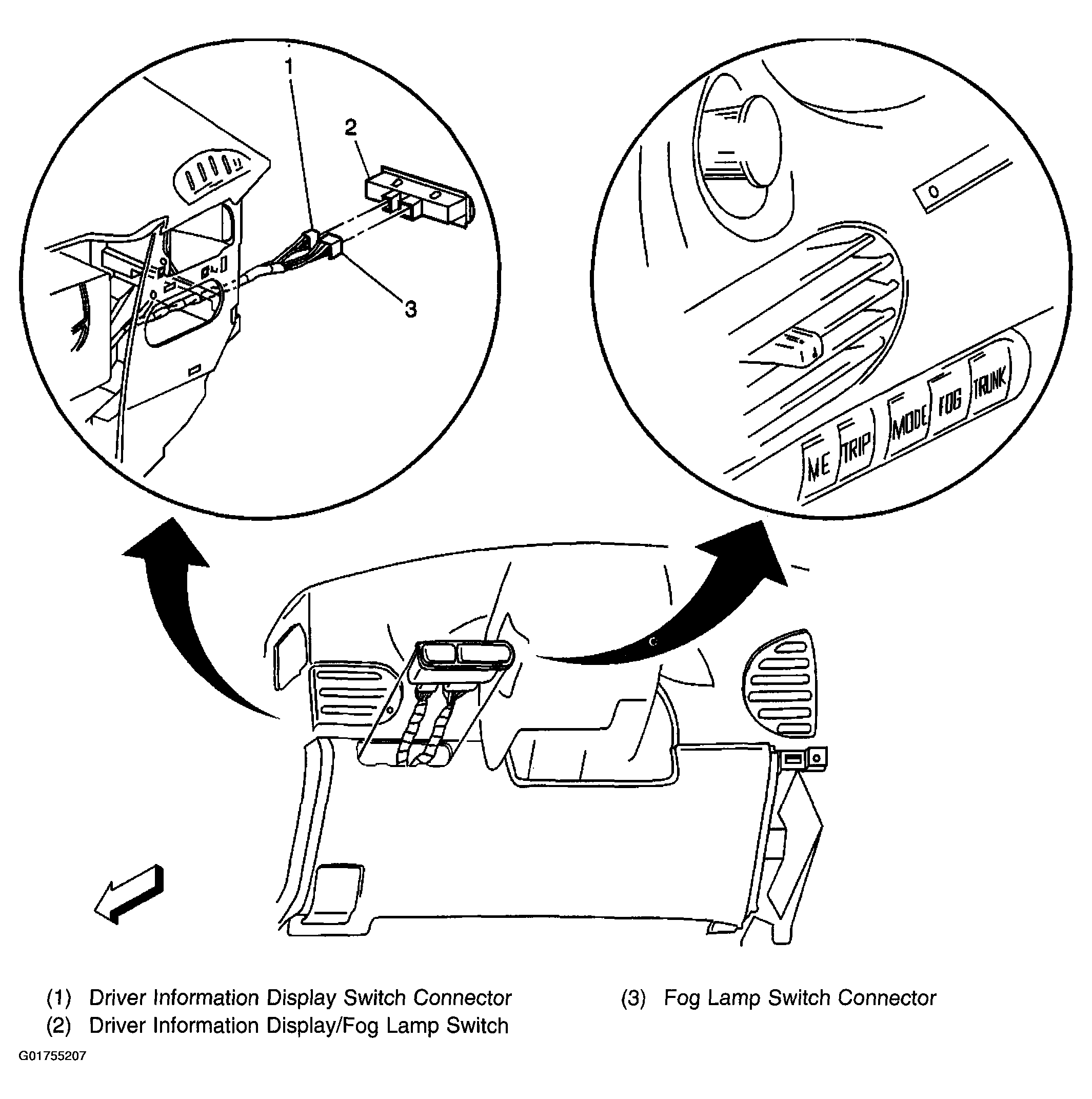

Fig 2: Identifying Instrument Panel (Lower Left) Components
G01755207Courtesy of GENERAL MOTORS CORP.

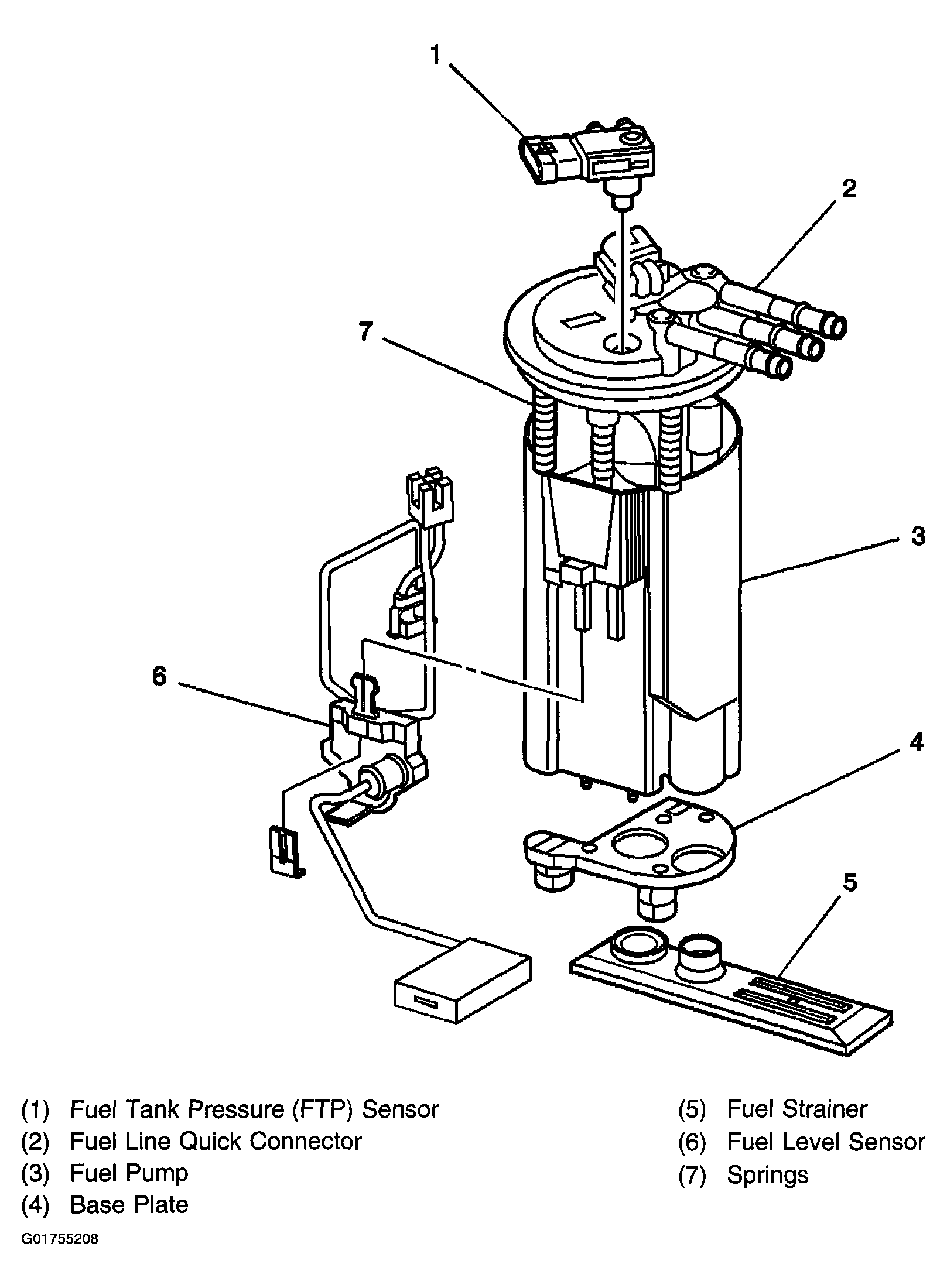

Fig 3: Identifying Fuel Sender System Components
G01755208Courtesy of GENERAL MOTORS CORP.
