Windshield Wiper Transmission Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

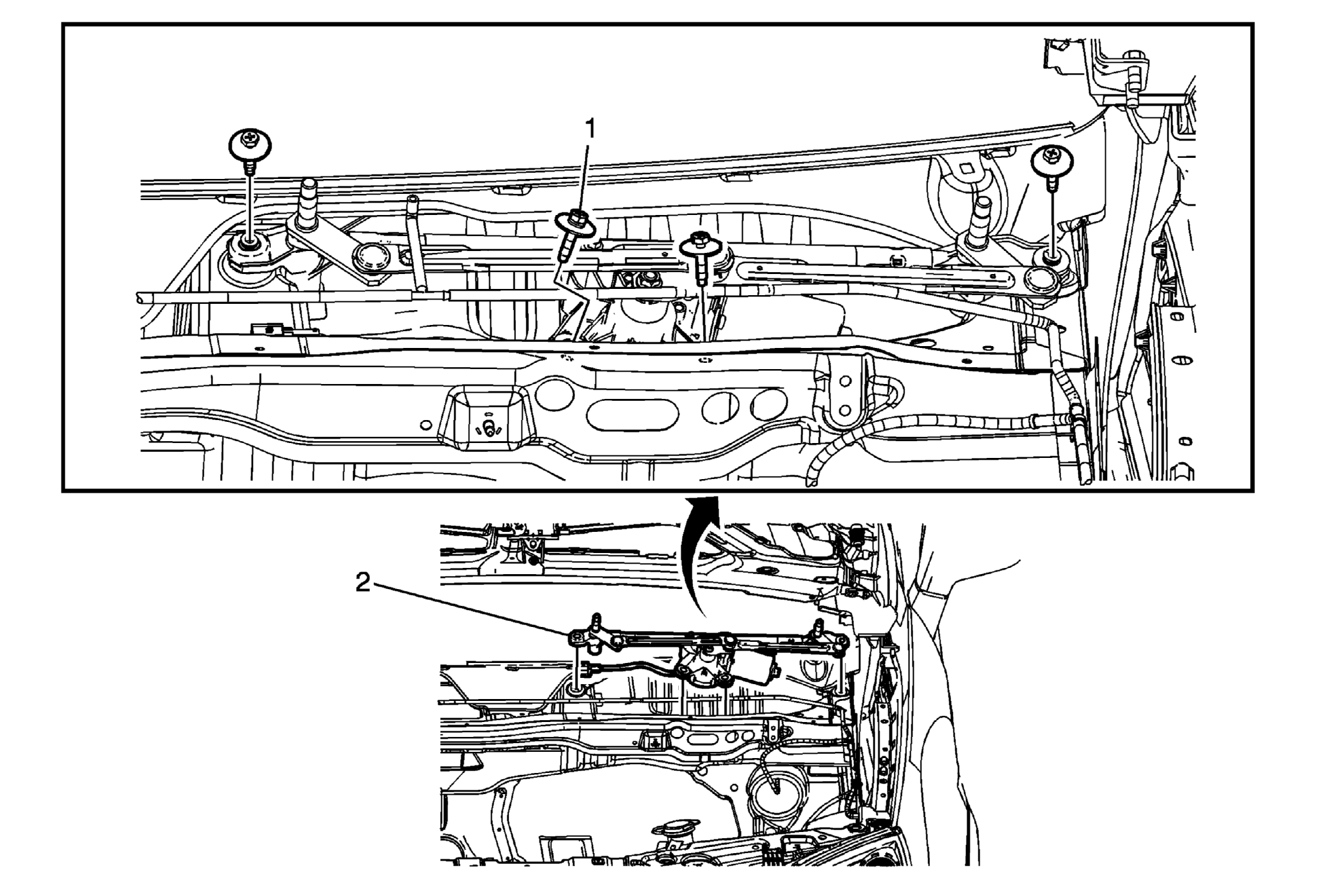

Fig 1: Windshield Wiper Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement
1	Windshield Wiper Transmission Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Windshield Wiper Transmission Frame Assembly Procedure Disconnect the windshield wiper motor electrical connector. Roll the frame assembly forward in order to release the transmission frame assembly from the upper plenum supports. Remove the windshield wiper motor from the wiper transmission frame assembly. Refer to Windshield Wiper Motor Replacement .

Callout

Component Name

Preliminary Procedure:
Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement

Windshield Wiper Transmission Frame Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Windshield Wiper Transmission Frame Assembly

Procedure

Disconnect the windshield wiper motor electrical connector.
Roll the frame assembly forward in order to release the transmission frame assembly from the upper plenum supports.
Remove the windshield wiper motor from the wiper transmission frame assembly. Refer to Windshield Wiper Motor Replacement .
