Tools Required

J 36660-A  Torque Angle Meter

1. Install the cylinder head locator dowel pins, if necessary.
2. Inspect the cylinder head locator dowel pins for proper installation.
3. Install the cylinder head gasket.

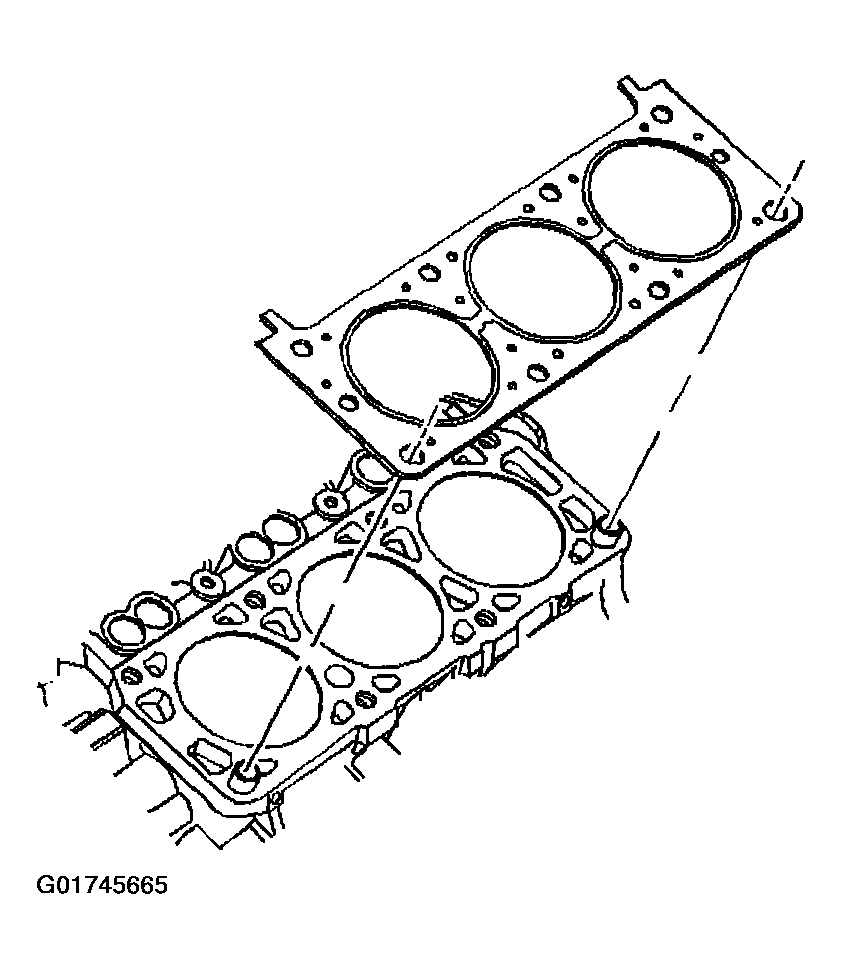

   Fig 1: Cylinder Head Gasket

   Courtesy of GENERAL MOTORS CORP.
4. Install the cylinder head.

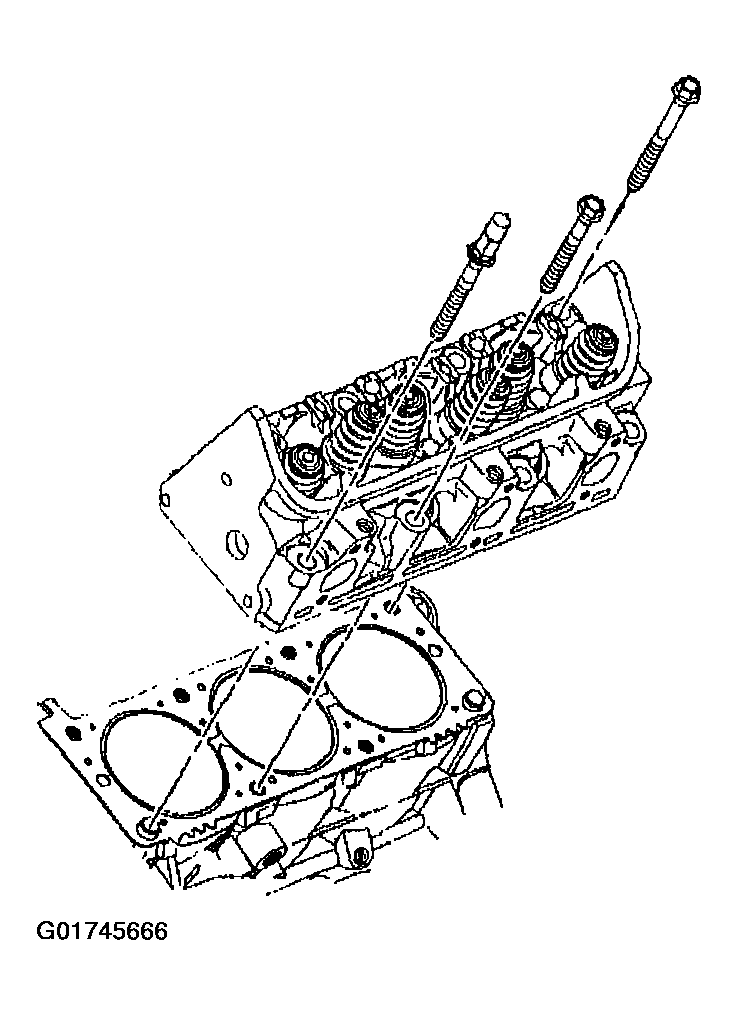

   Fig 2: Cylinder Head (Right)

   Courtesy of GENERAL MOTORS CORP.
5. Install NEW cylinder head bolts.

   Tighten

   Tighten the cylinder head bolts in sequence to 60 N.m (44 ft. lbs). Turn the bolts an additional 95 degrees using the J 36660-A.

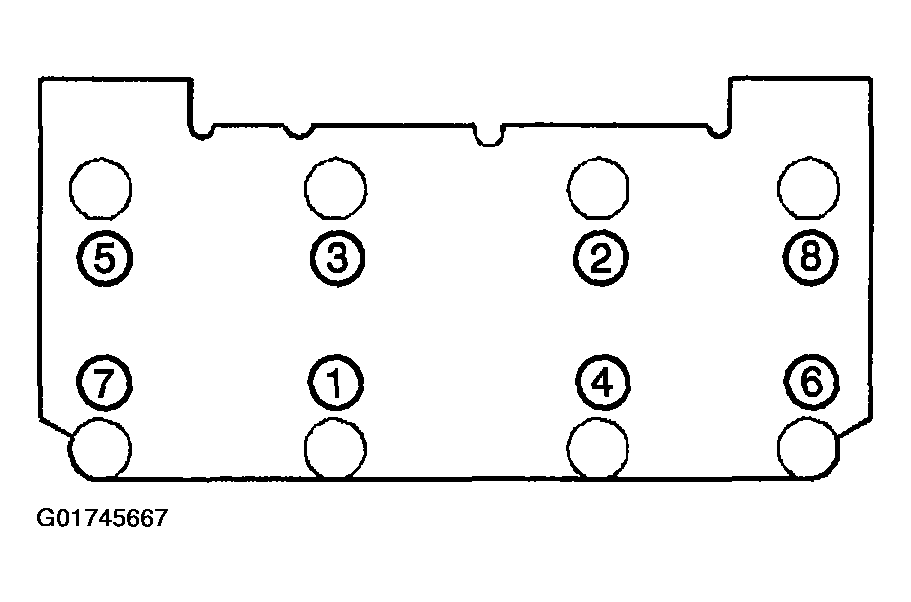

   Fig 3: Cylinder Head Bolt Tightening Sequence

   Courtesy of GENERAL MOTORS CORP.
