Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step verifies that the fault is present.
  2. 3. This step tests for a shorted switch.

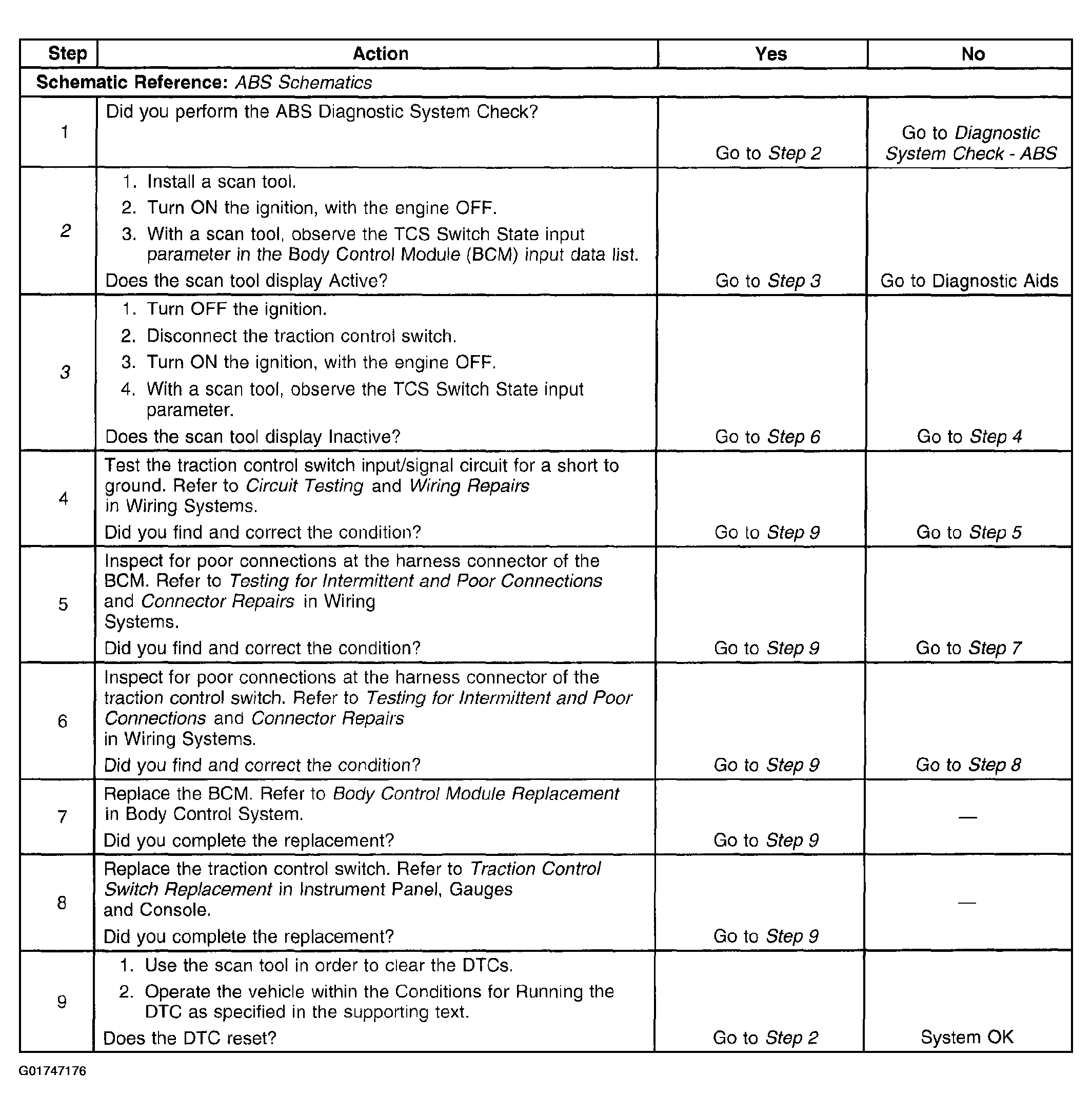

Fig 1: DTC B2747
G01747176Courtesy of GENERAL MOTORS CORP.
