Removal Procedure

  1. Remove the left or right instrument panel insulator as required. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE or INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Disconnect the electrical from the front door wiring harness.
  3. Remove the door rubber conduit from where it attaches at the windshield pillar.
  4. Remove the conduit from the front door.
  5. Remove the front door wiring harness out from the rubber conduit.

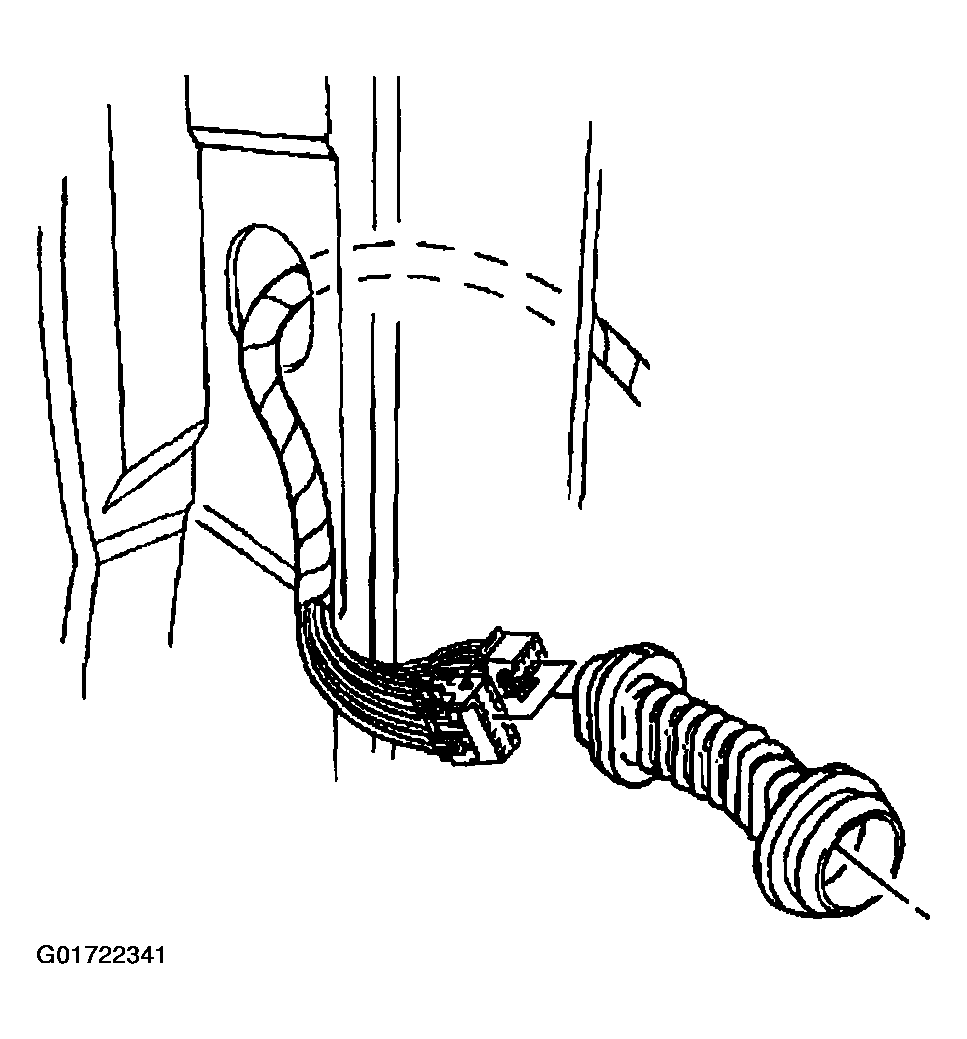

    Fig 1: Removing Rubber Conduit Front Door Wiring Harness
    G01722341Courtesy of GENERAL MOTORS CORP.
