Removal Procedure

Use a small flat-bladed tool in order to remove the switch plate from the front door trim panel

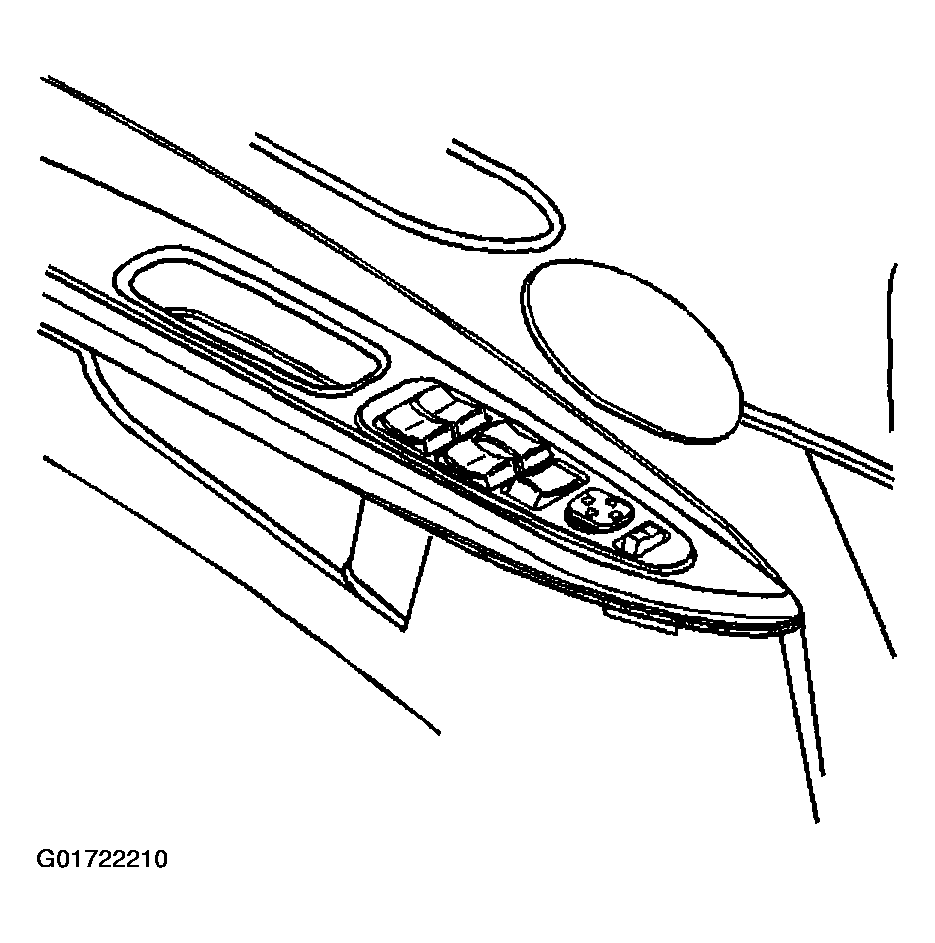

Fig 1: View Of Power Mirror Switch
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the switch plate.

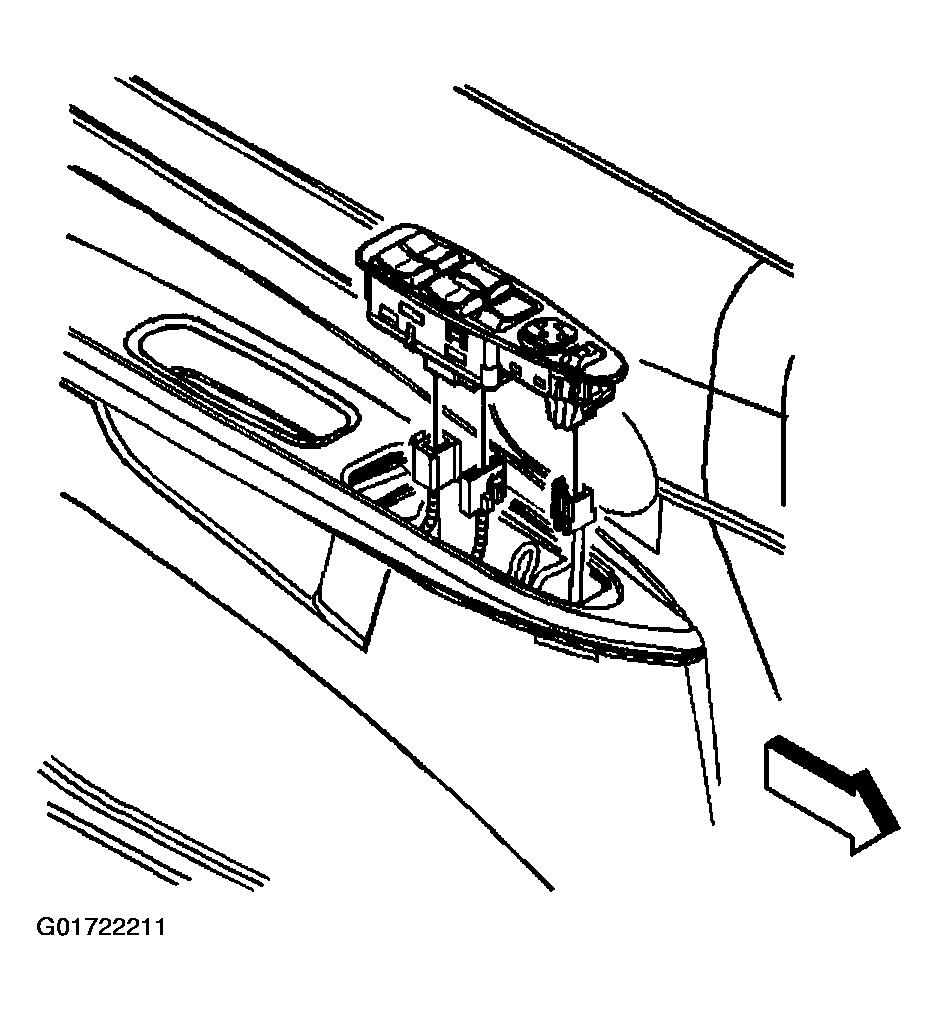

Fig 2: Disconnecting Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Use a small flat-bladed tool in order to remove the power mirror switch from the switch plate

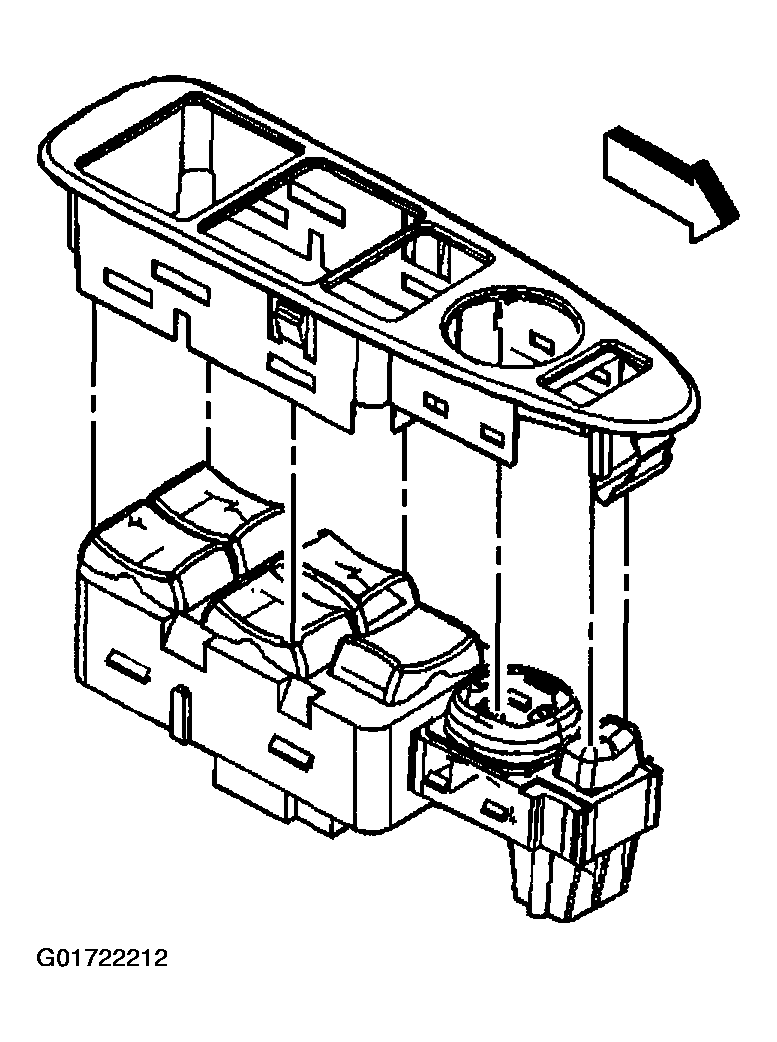

Fig 3: Removing Power Mirror Switch (Rendezvous)
Courtesy of GENERAL MOTORS CORP.
