Installation Procedure

  1. Connect the electrical connectors to the memory seat switch panel
  2. Install the memory seat switch panel to the door trim panel and press into place until fully seated.

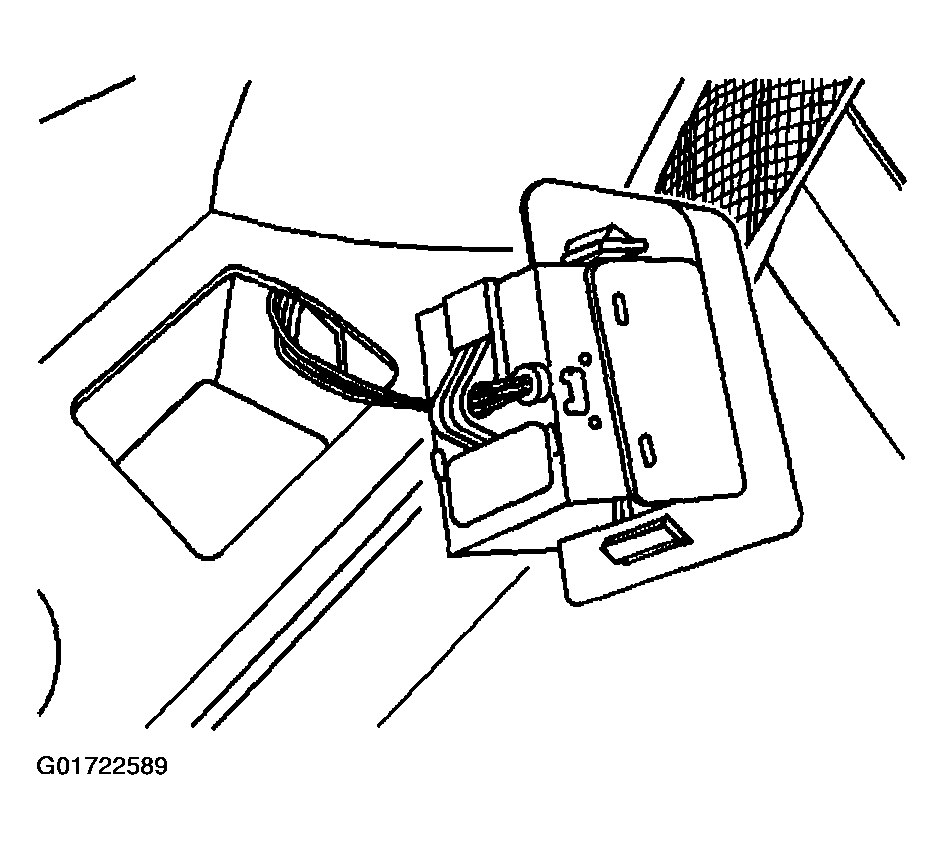

    Fig 1: Installing Memory Seat Switch Panel
    G01722589Courtesy of GENERAL MOTORS CORP.
