Power Window Switch Replacement

REMOVAL PROCEDURE




1. Using a small flat-bladed tool, at the front of the switch bezel, push in and lift up to release the front clip.
2. Remove the switch bezel from the door trim panel.
3. Disconnect the electrical connector from power window switch.

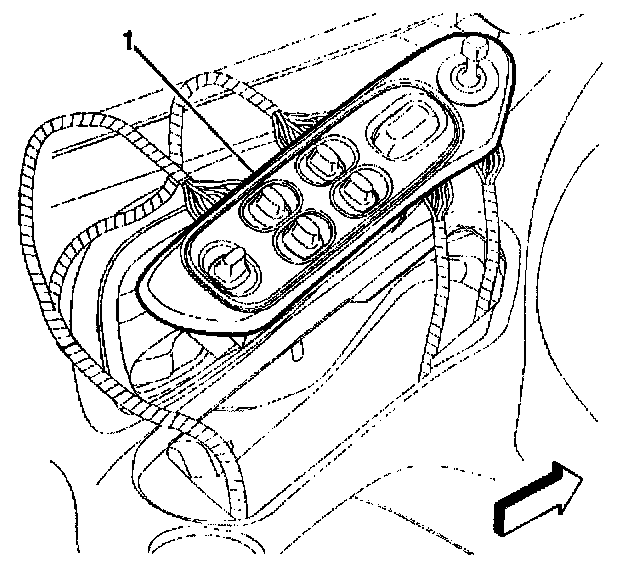

4. Release the power window switch retainers and remove the switch from the bezel (1).

INSTALLATION PROCEDURE




1. Install the power window switch to the bezel (1), pressing into place until fully seated.
2. Connect the electrical connector to the power window switch.
3. Install the front door switch bezel (1) to the door trim panel, pressing into place until fully seated.
