Case and Associated Parts

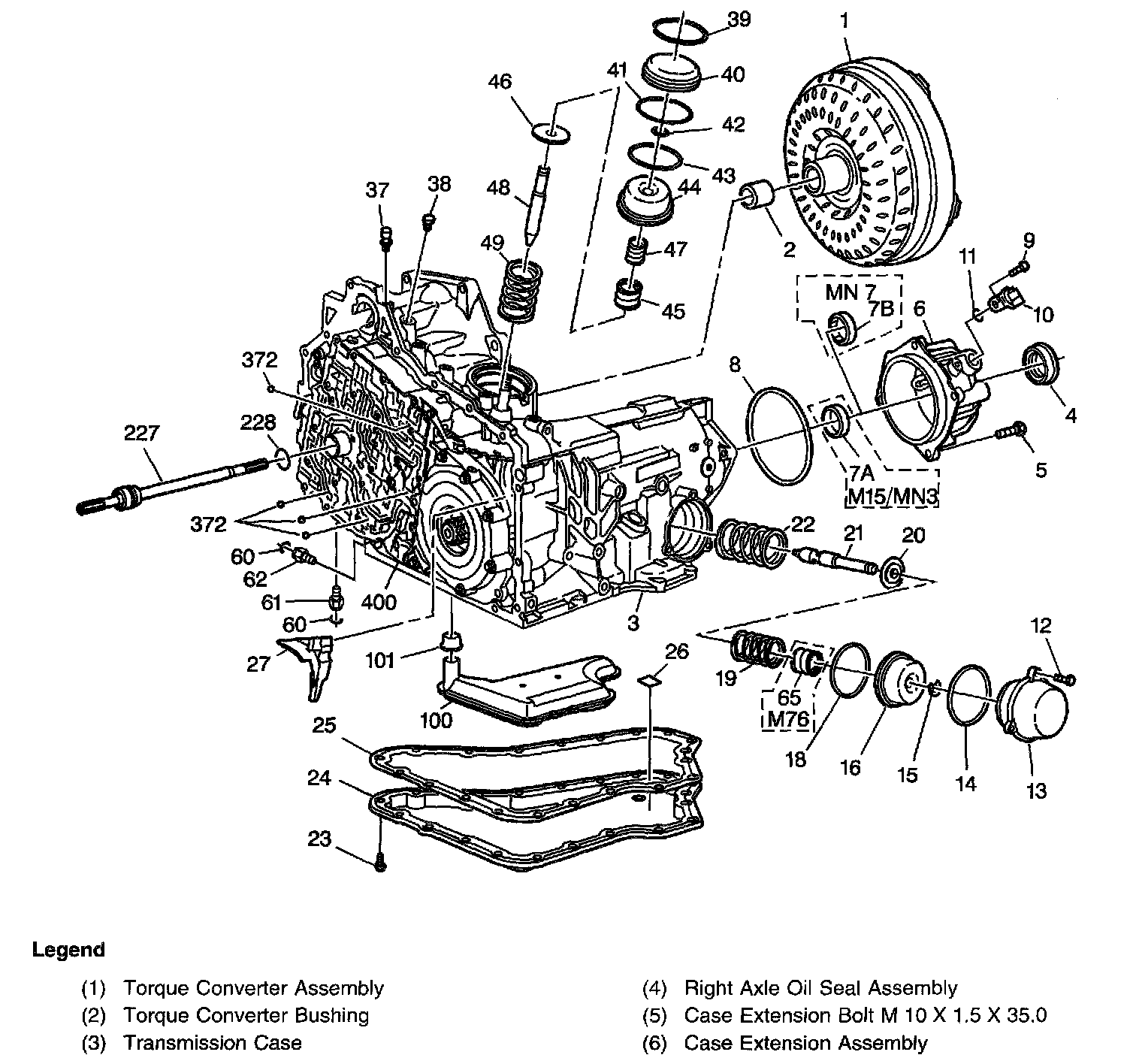

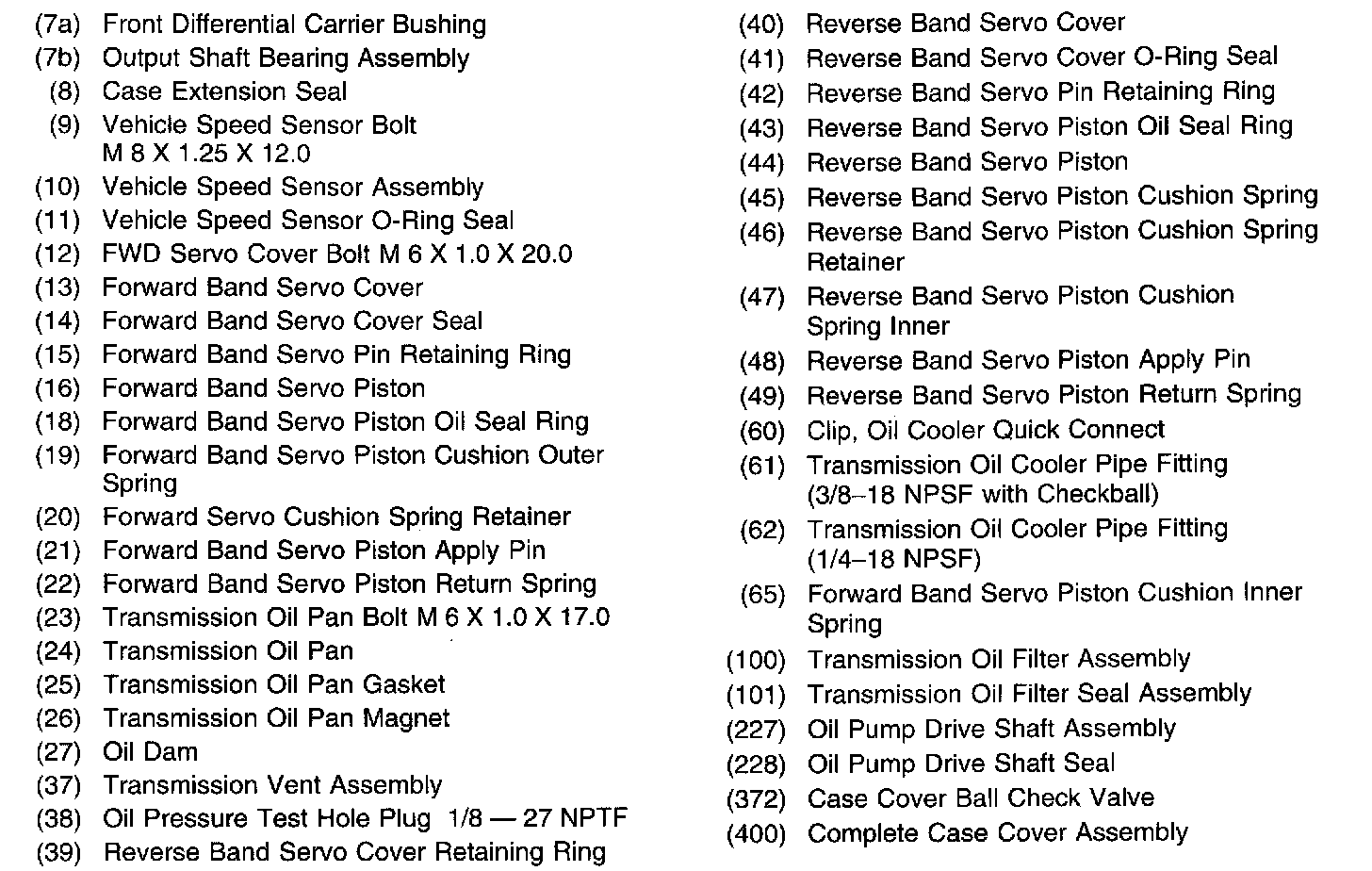

Part (1 of 4)

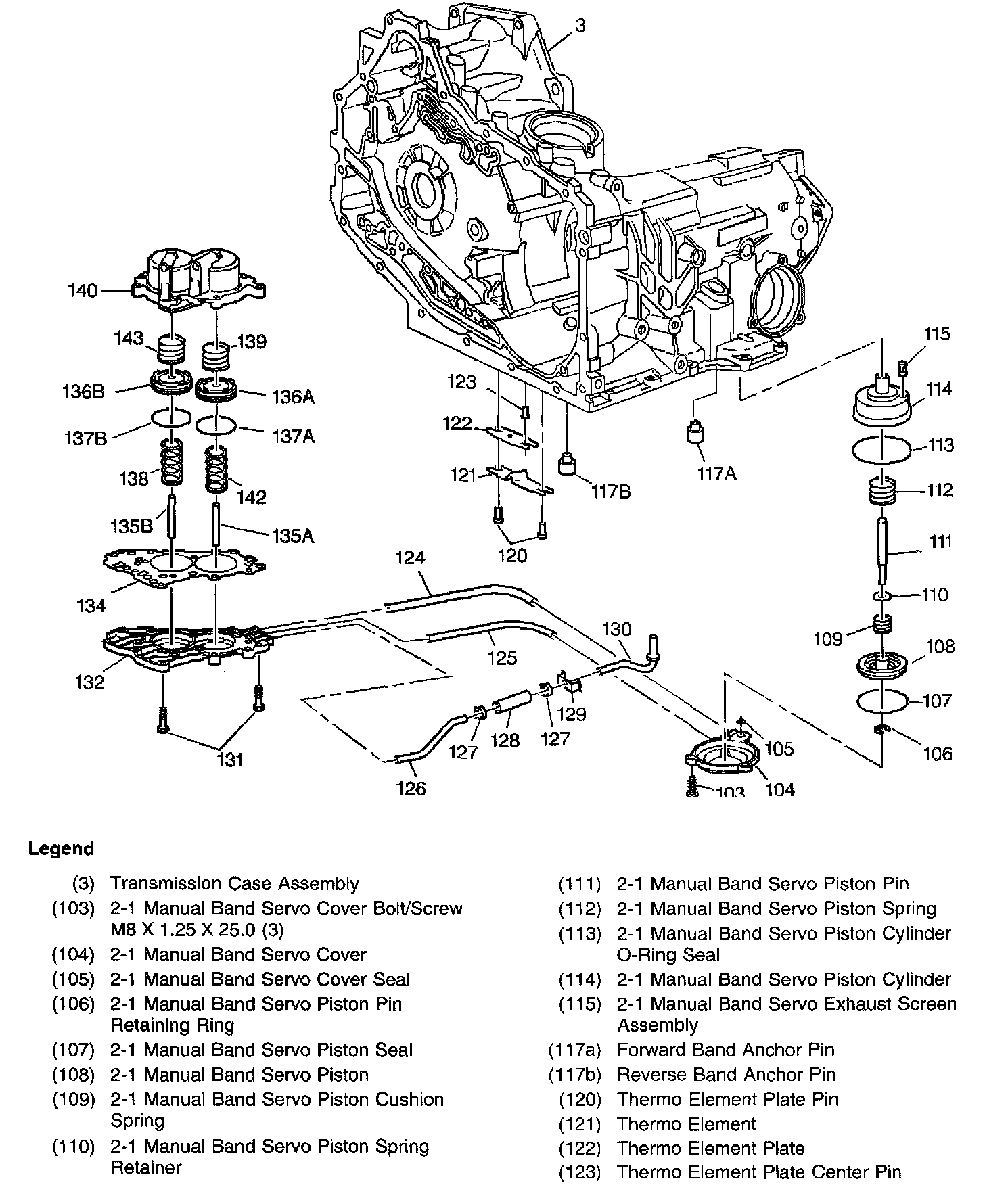

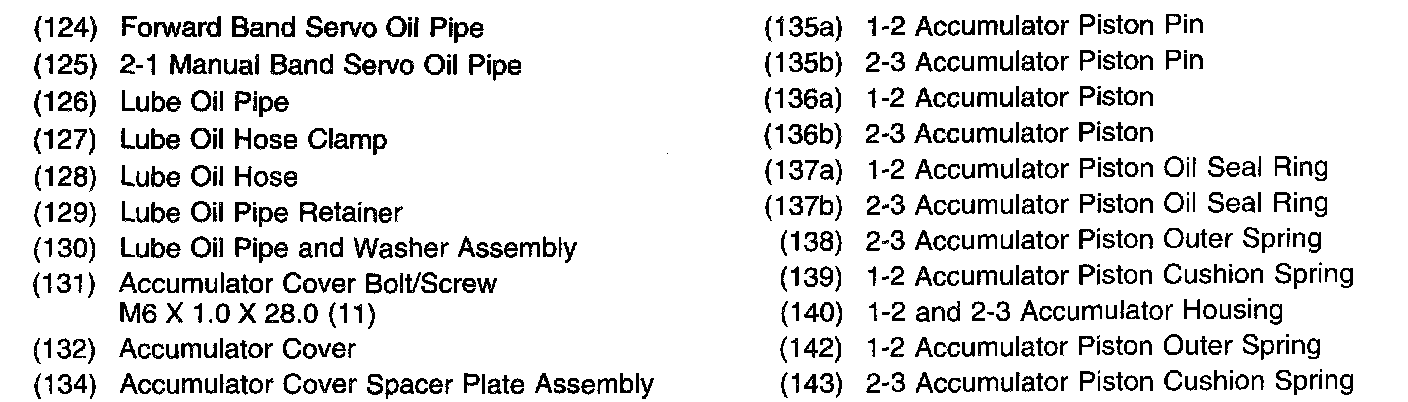

Part (2 of 4)

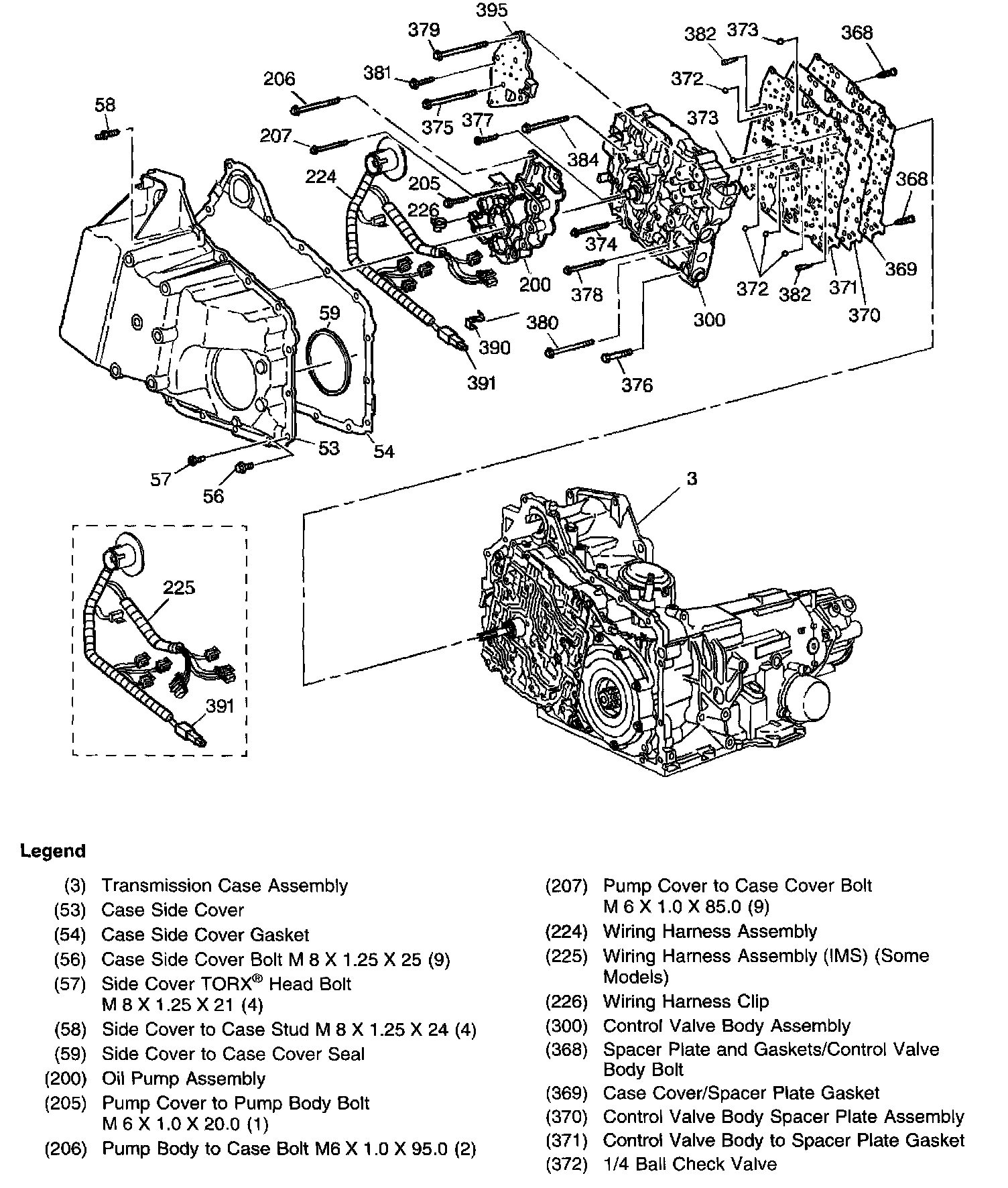

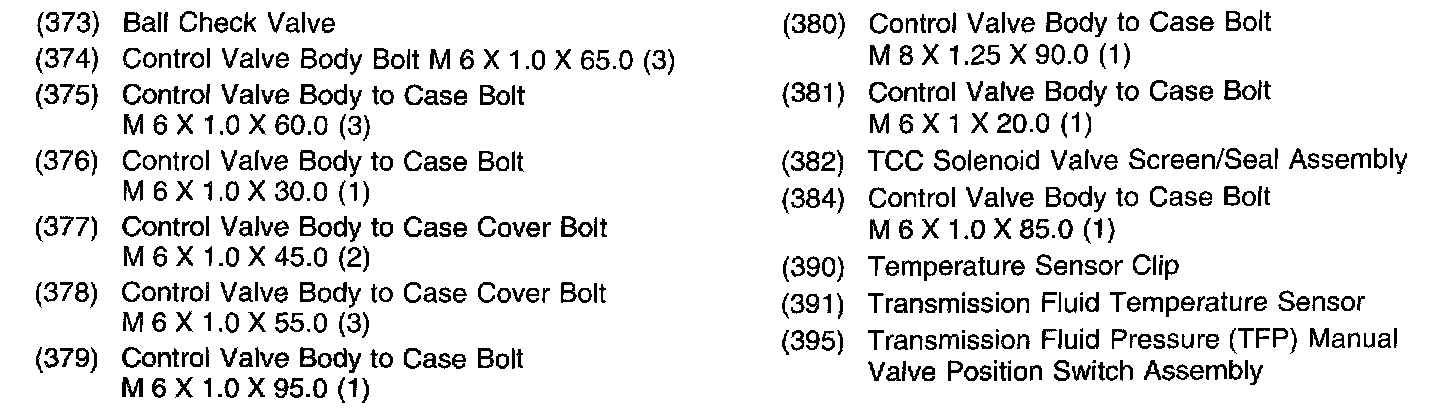

Part (3 of 4)

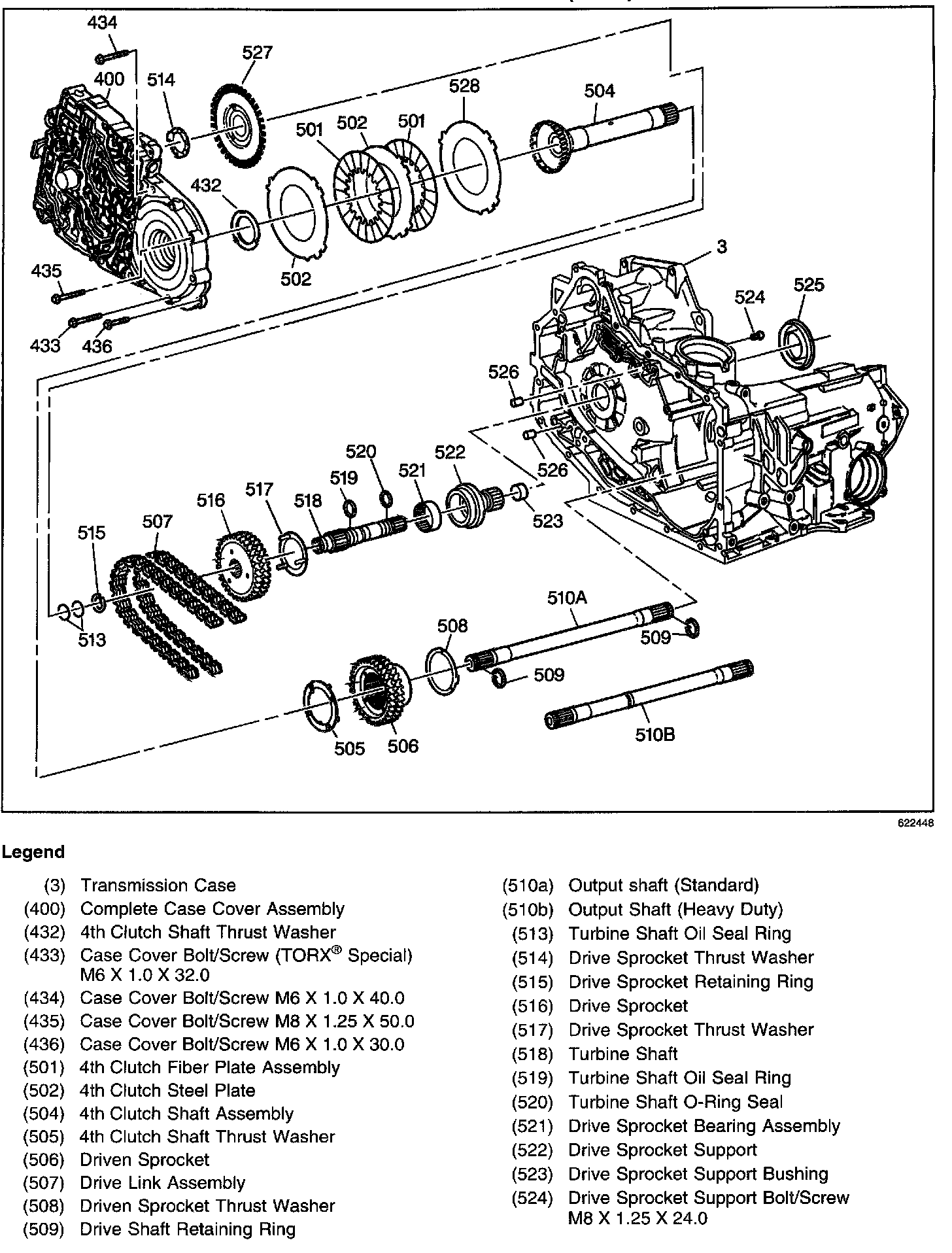

Part (4 of 4)

Case and Associated Parts
