Rear Release Inoperative with Transmitter

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

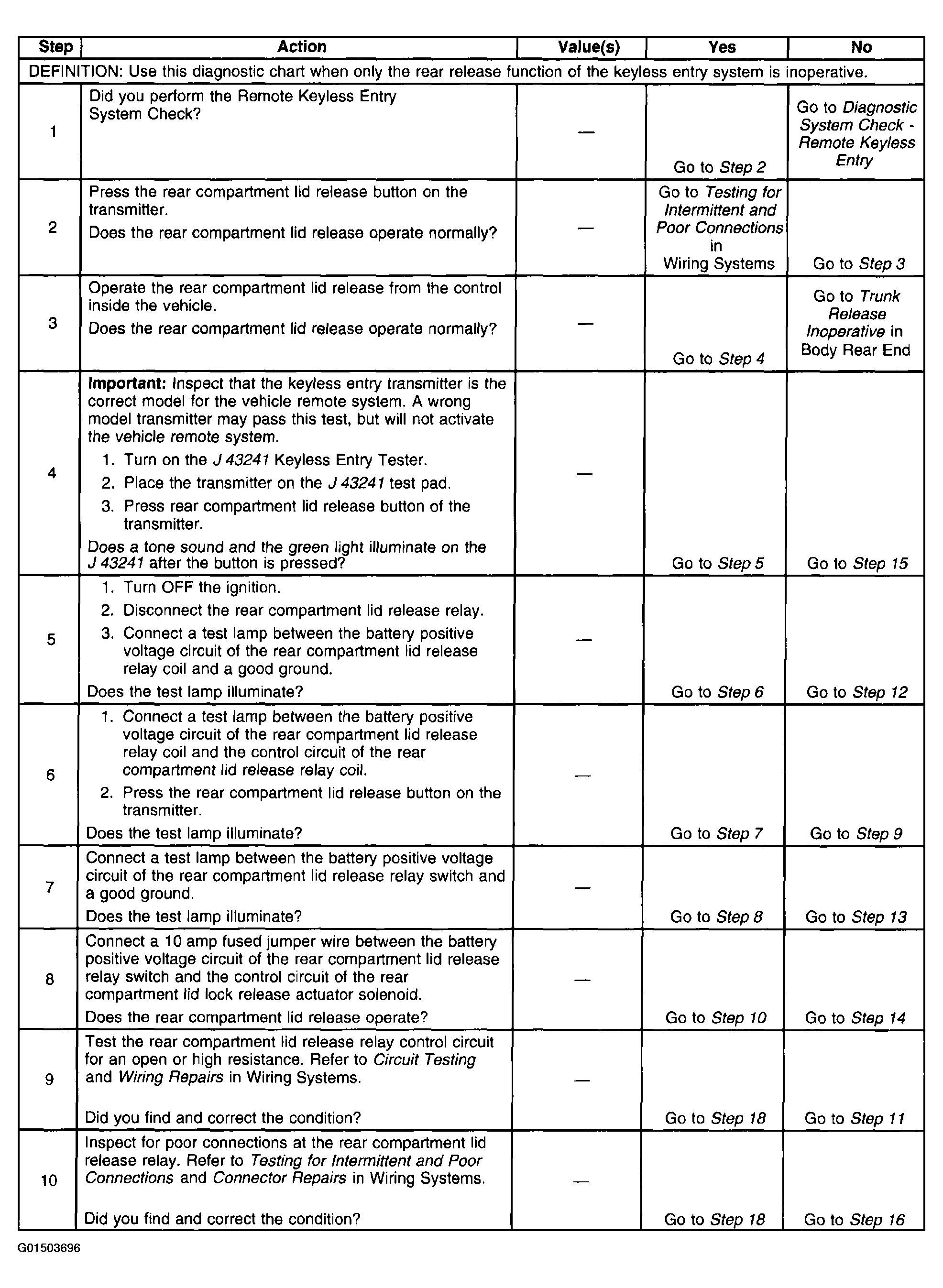

Fig 1: Rear Release Inoperative With Transmitter Diagnostic Table (1 Of 2)
G01503696Courtesy of GENERAL MOTORS CORP.

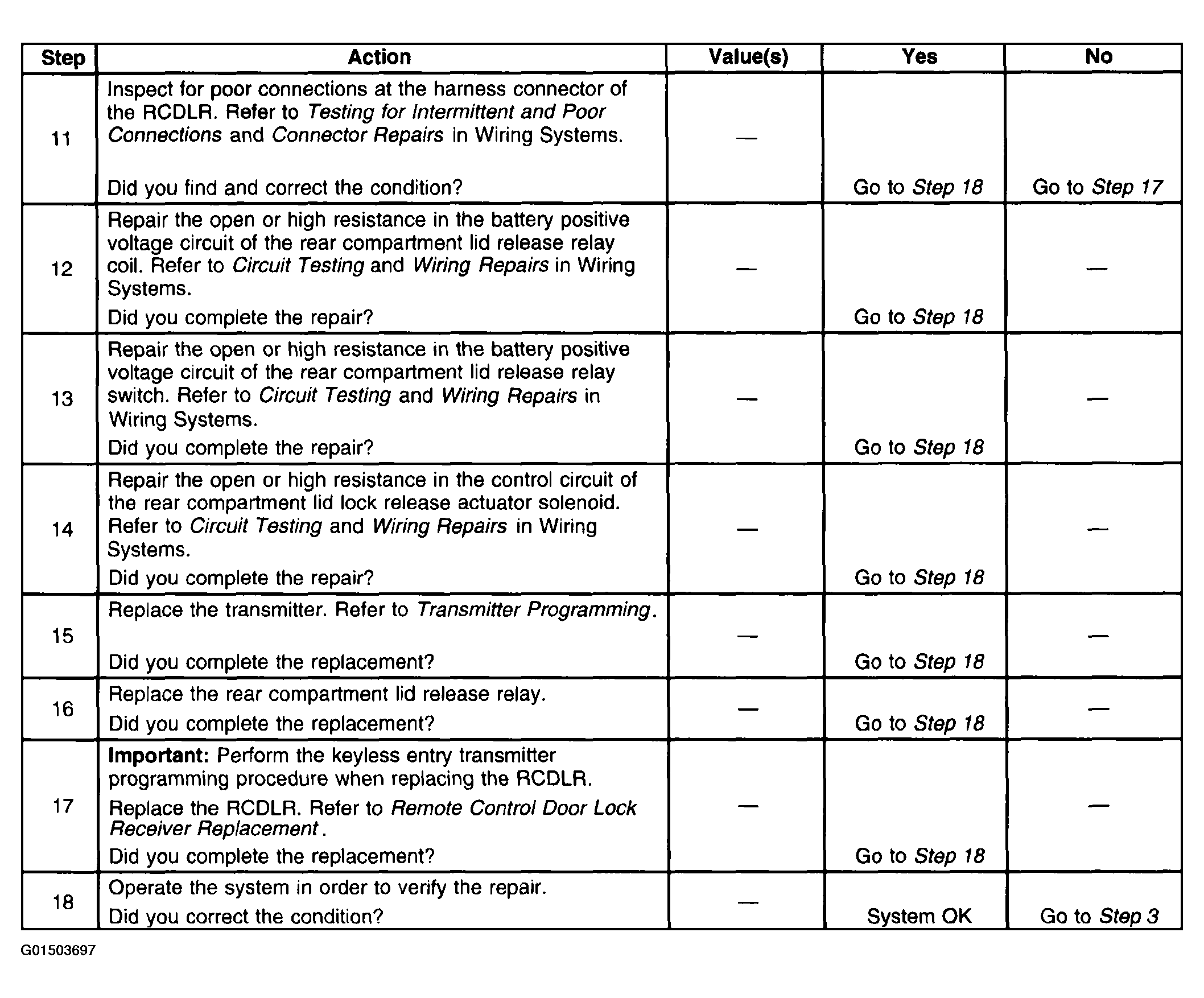

Fig 2: Rear Release Inoperative With Transmitter Diagnostic Table (2 Of 2)
G01503697Courtesy of GENERAL MOTORS CORP.
