Bearing Replacement

NOTE: When installing NEW bearing, part number should be visible (facing upward).

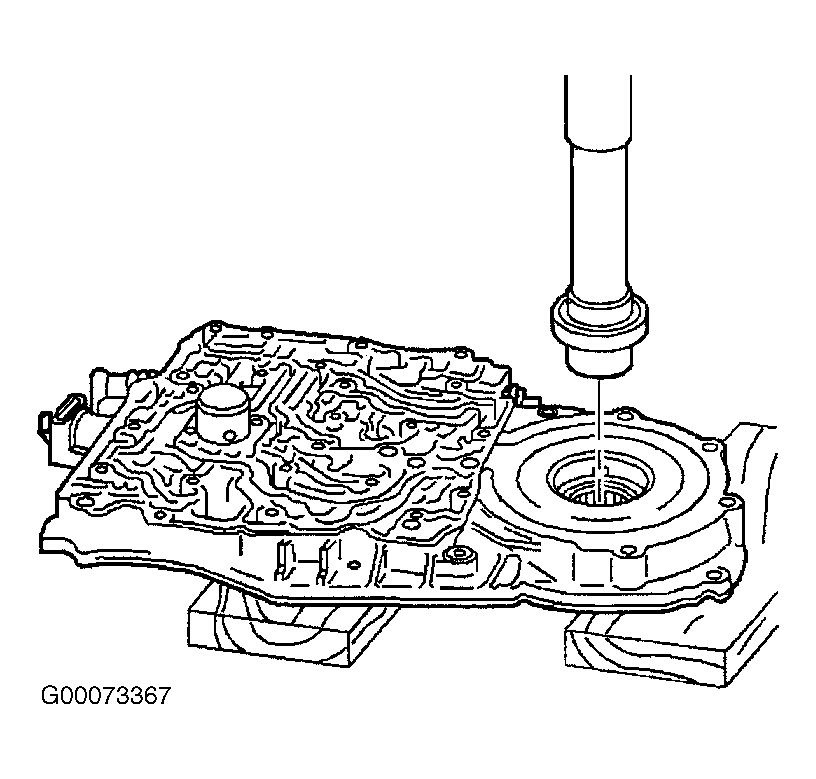

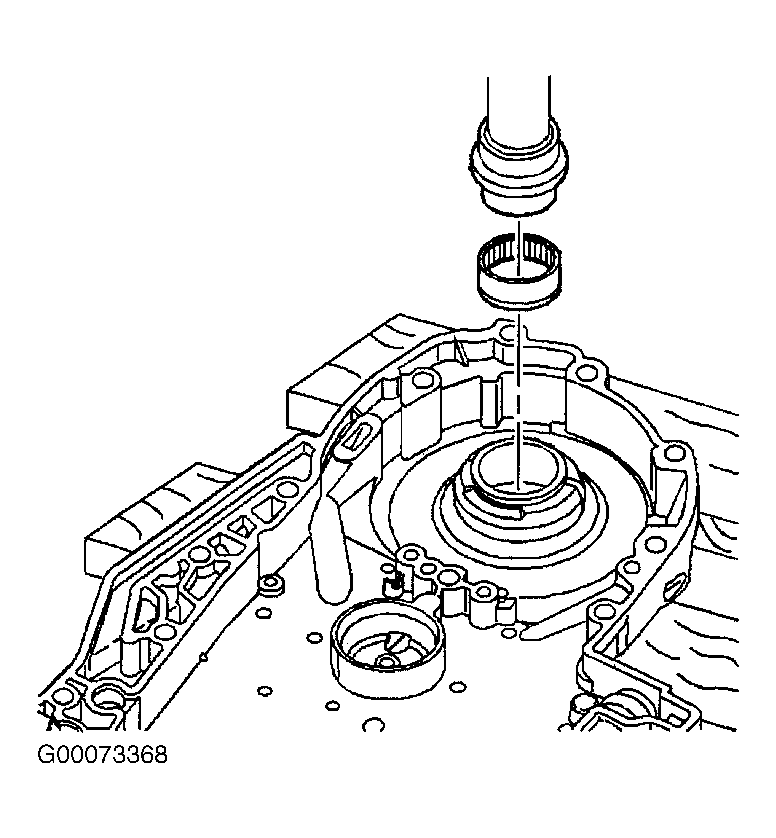

Place case cover on clean flat surface with spacer plate mating surface up. Using Driver Handle (J-8092), Bearing Remover/Installer (J-41991) and hammer, drive out bearing from case cover. See Figure. To install, place case cover on clean flat surface with case mating surface up. Drive bearing into case cover. See Figure.
