Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT -- INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages, and Console.
  2. Remove the screws that secure the radio to the instrument panel.

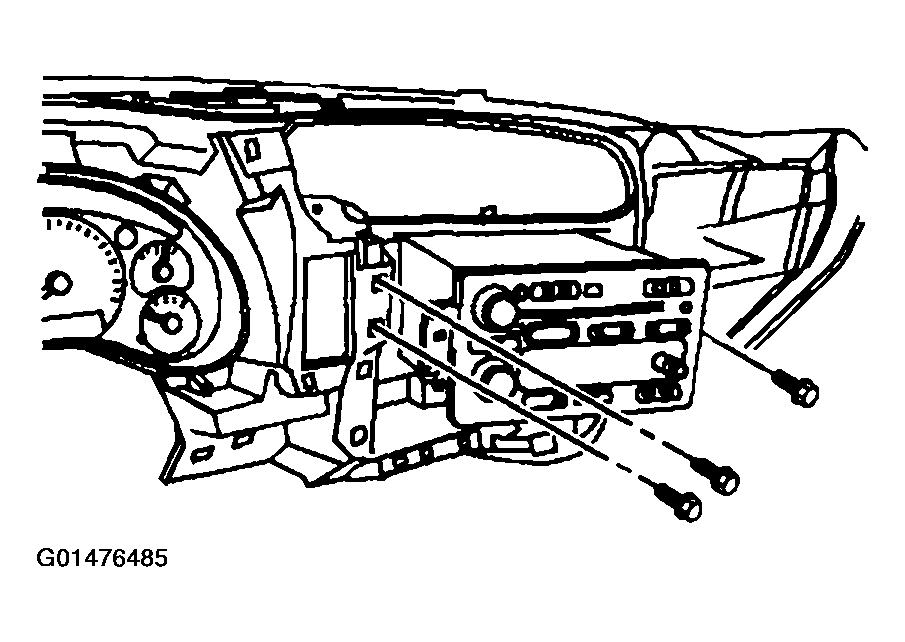

    Fig 1: Removing Screws Securing Radio To Instrument Panel
    G01476485Courtesy of GENERAL MOTORS CORP.
  3. Remove the radio from the support bracket enough to access the connectors at rear of the radio.
  4. Disconnect the electrical connector (2) from the radio.
  5. Remove the radio.

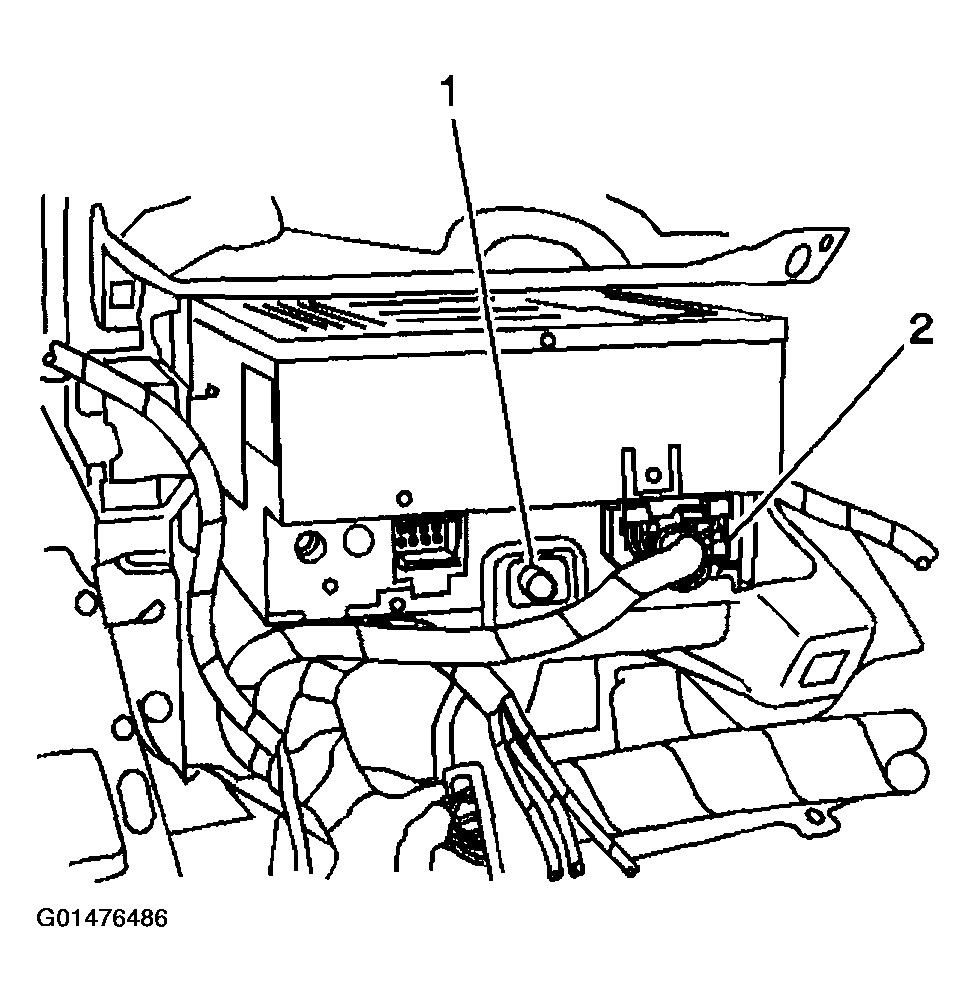

    Fig 2: Disconnecting Electrical Connector From Radio
    G01476486Courtesy of GENERAL MOTORS CORP.
