Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
- Use a pry bar in order to install the stabilizer shaft insulator.

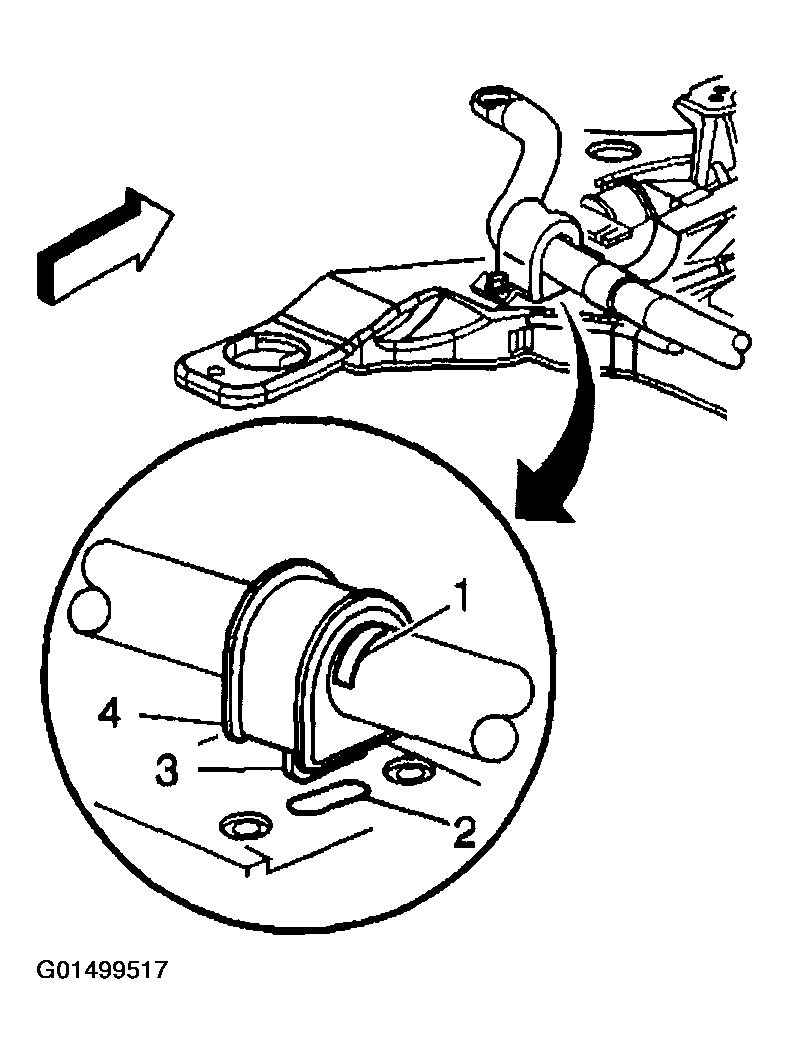

Ensure that the stabilizer shaft insulator locating tabs (3) align with the indentations in the frame (2).
- Ensure that the stabilizer shaft insulator locating tabs (3) align with the indentations in the frame (2).
- Install the left and right side stabilizer shaft insulator brackets.
- Install the left and right side stabilizer shaft insulator bracket bolts.
Tighten Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).
- Lower the vehicle.
