Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

    Important:  Clean the components and the surrounding area to prevent dirt from entering the air system before disconnecting the air hose from the air compressor.

  2. Disconnect the air tube (1) from the air dryer.
  3. Disconnect the electrical connection (2).

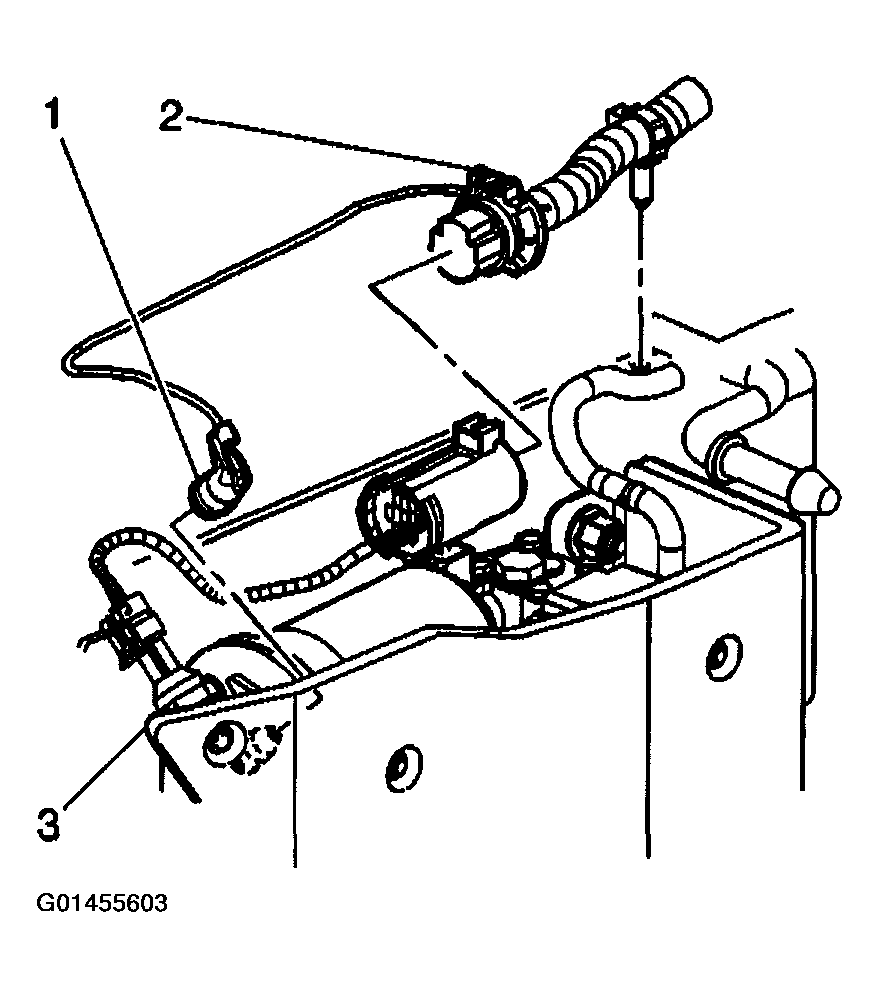

    Fig 1: Removing Procedure Of Air Compressor (1 Of 2)
    G01455603Courtesy of GENERAL MOTORS CORP.
  4. Remove the air inlet and hose (1) from the fuel filler neck bracket.
  5. Loosen the mounting nuts.
  6. Slide the air compressor (2) rearward to clear the frame slots.
  7. Remove the air compressor from the vehicle.

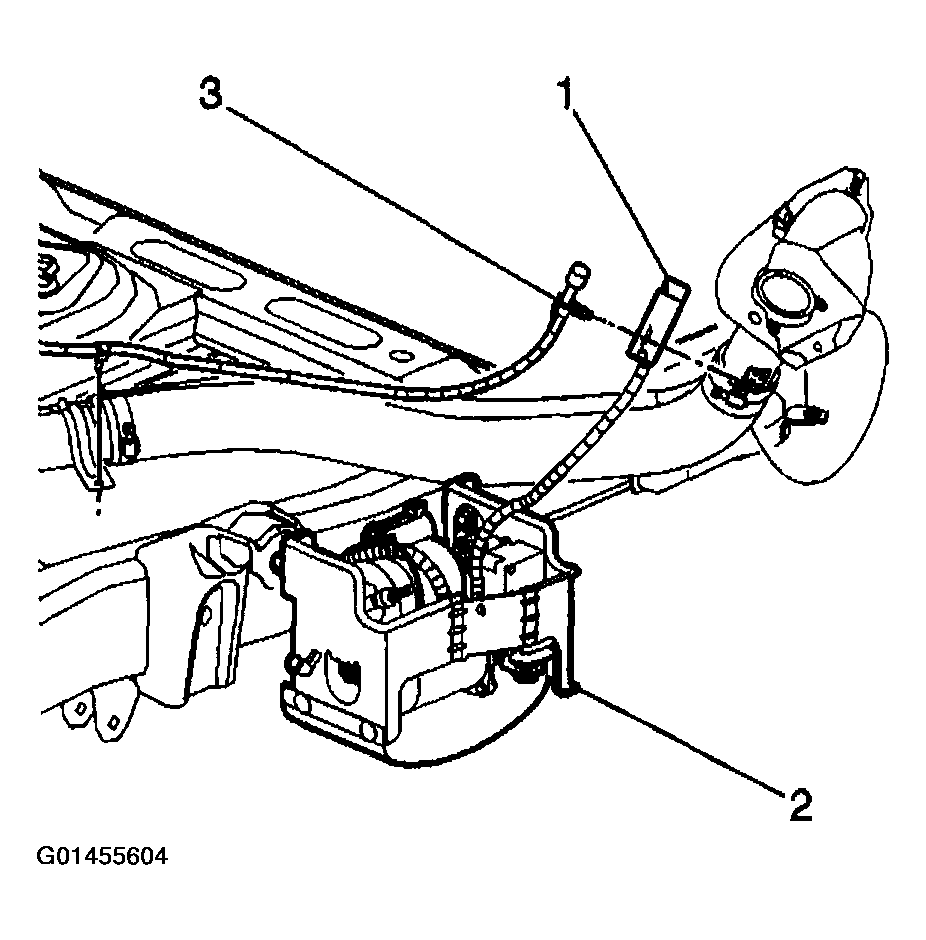

    Fig 2: Removing Procedure Of Air Compressor (2 Of 2)
    G01455604Courtesy of GENERAL MOTORS CORP.
