Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
    2. Fig 1: Installing Bulb To Socket
    G01457563Courtesy of GENERAL MOTORS CORP.
  2. Install the lens cover.
    3. Fig 2: Installing Lens Cover
    G01457564Courtesy of GENERAL MOTORS CORP.
  3. Install the underhood lamp to the hood.
  4. Connect the in-line electrical connector.

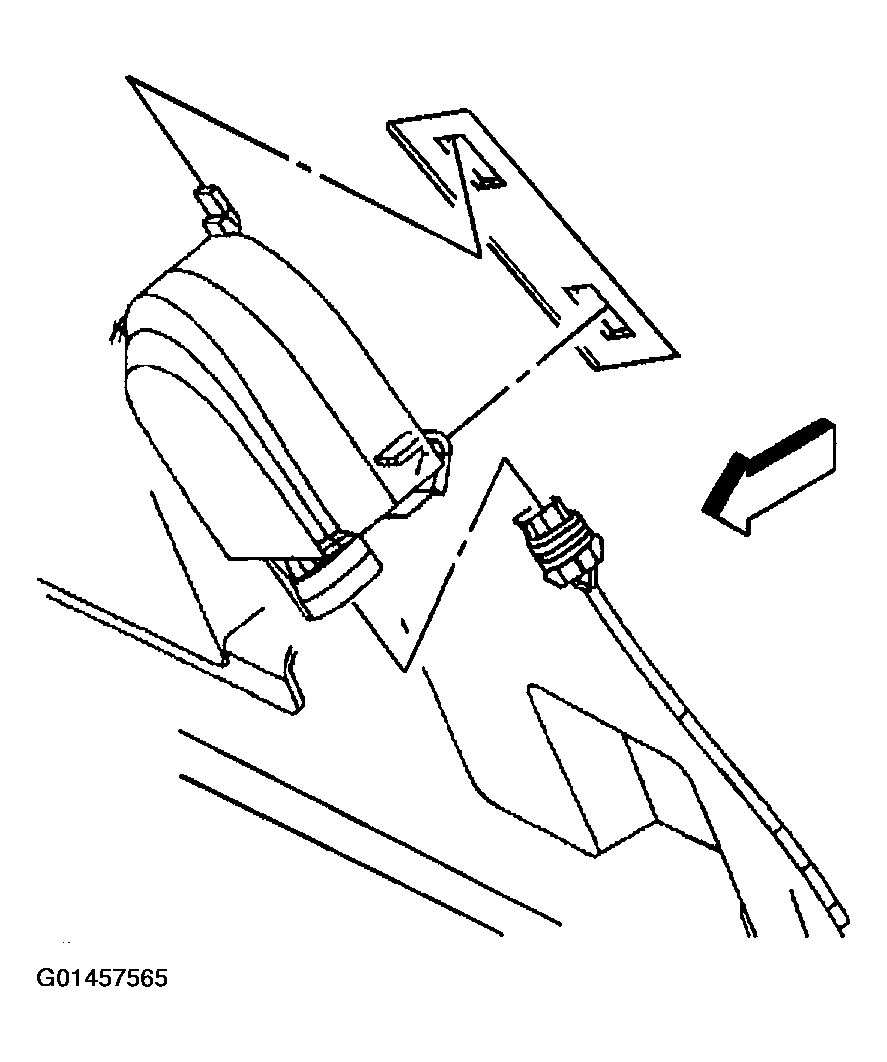

    5. Fig 3: Connecting In-Line Electrical Connector
    G01457565Courtesy of GENERAL MOTORS CORP.
