Washer Tank Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the windshield washer motor connector and windshield washer hose.

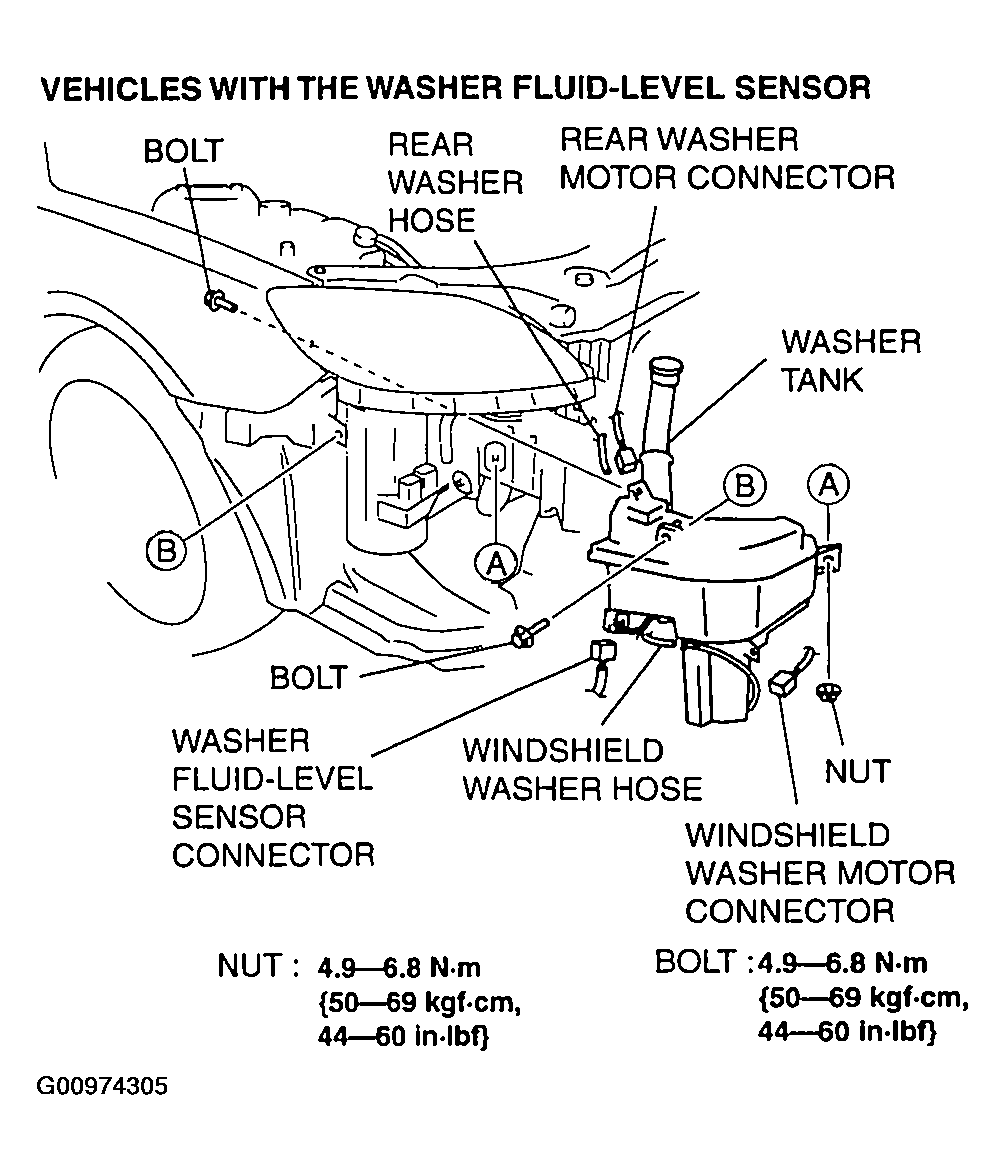

    Fig 1: Disconnecting Windshield Washer Motor Connector & Hose - With Fluid-Level Sensor With Torque Specifications
    G00974305Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the rear washer motor connector and rear washer hose. (5 door)
  5. Disconnect the washer fluid-level sensor connector. (Vehicles with the washer fluid-level sensor)
  6. Remove the bolts and nut, then remove the washer tank.
  7. Install in the reverse order of removal.

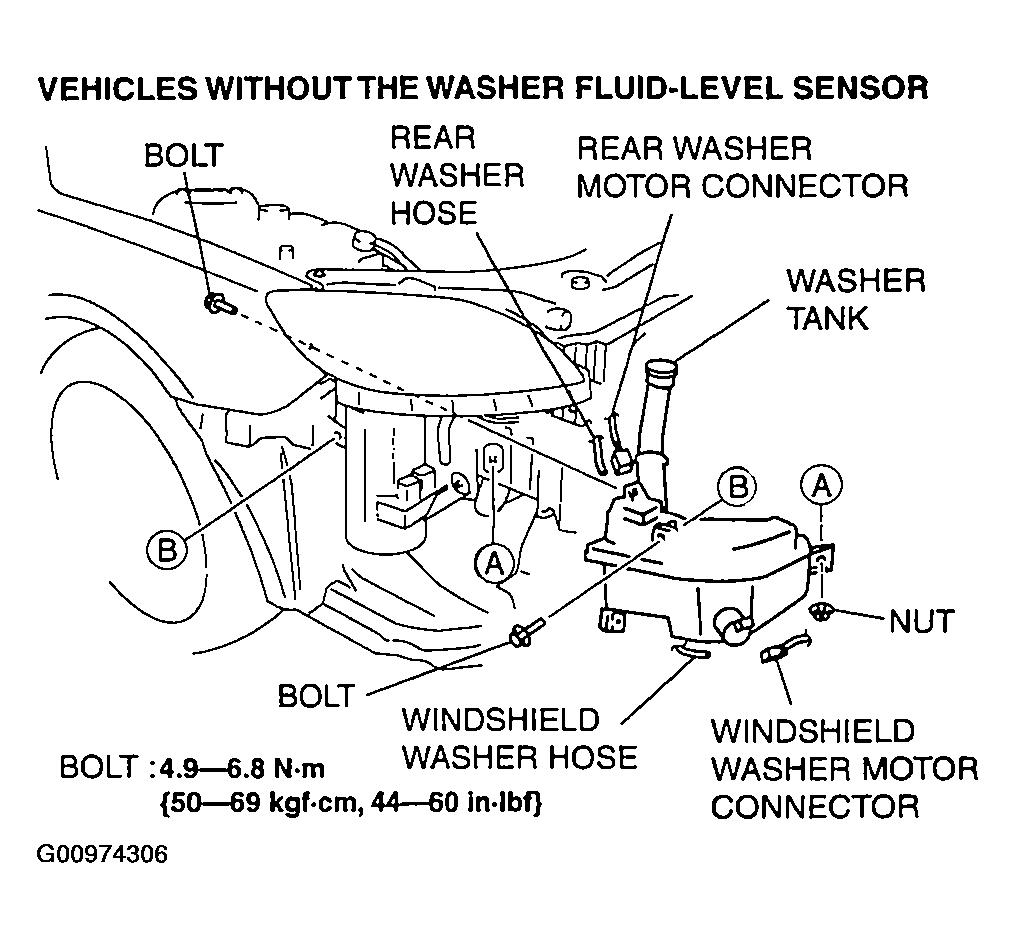

    Fig 2: Disconnecting Windshield Washer Motor Connector & Hose - Without Fluid-Level Sensor With Torque Specifications
    G00974306Courtesy of MAZDA MOTORS CORP.
