Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Release the tabs that retain the rear compartment lamp (2) to the rear shelf panel (1).
  3. Disconnect the electrical connector (3) from the rear compartment lamp (2).
  4. Remove the bulb from the rear compartment lamp (2).

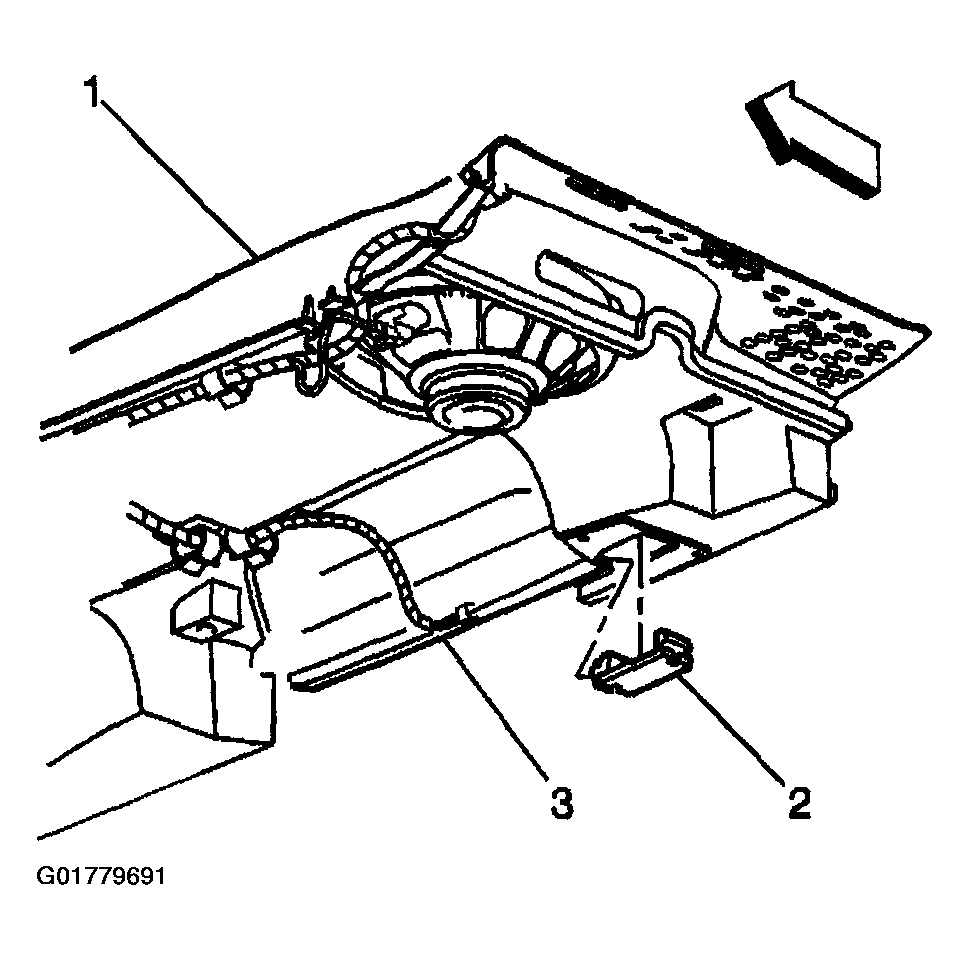

    Fig 1: Removing Rear Compartment Lamp
    G01779691Courtesy of GENERAL MOTORS CORP.
