Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb (3) to the socket (4).
  2. Install the socket (4) to the sidemarker lamp (2).
  3. Install the sidemarker lamp (2) to the front fascia panel (5).
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the side marker lamp screw (1) to the sidemarker lamp (2).

Tighten

Tighten the screw to 2 N.m (18 lb in).

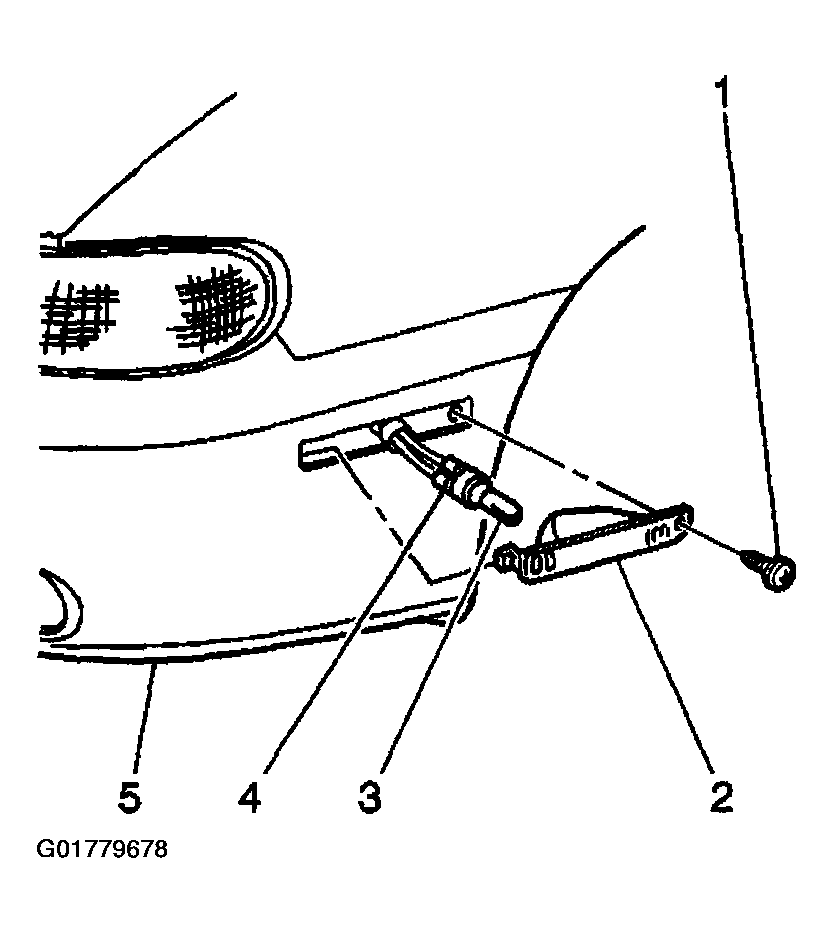

Fig 1: Installing Front Side Marker Lamp
G01779678Courtesy of GENERAL MOTORS CORP.
