Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove escutcheon covers (3) from the roof rail assist handle (2).
  2. Remove the screws from the roof rail assist handle (2).
  3. Remove the roof rail assist handle (2) from the headliner (1).

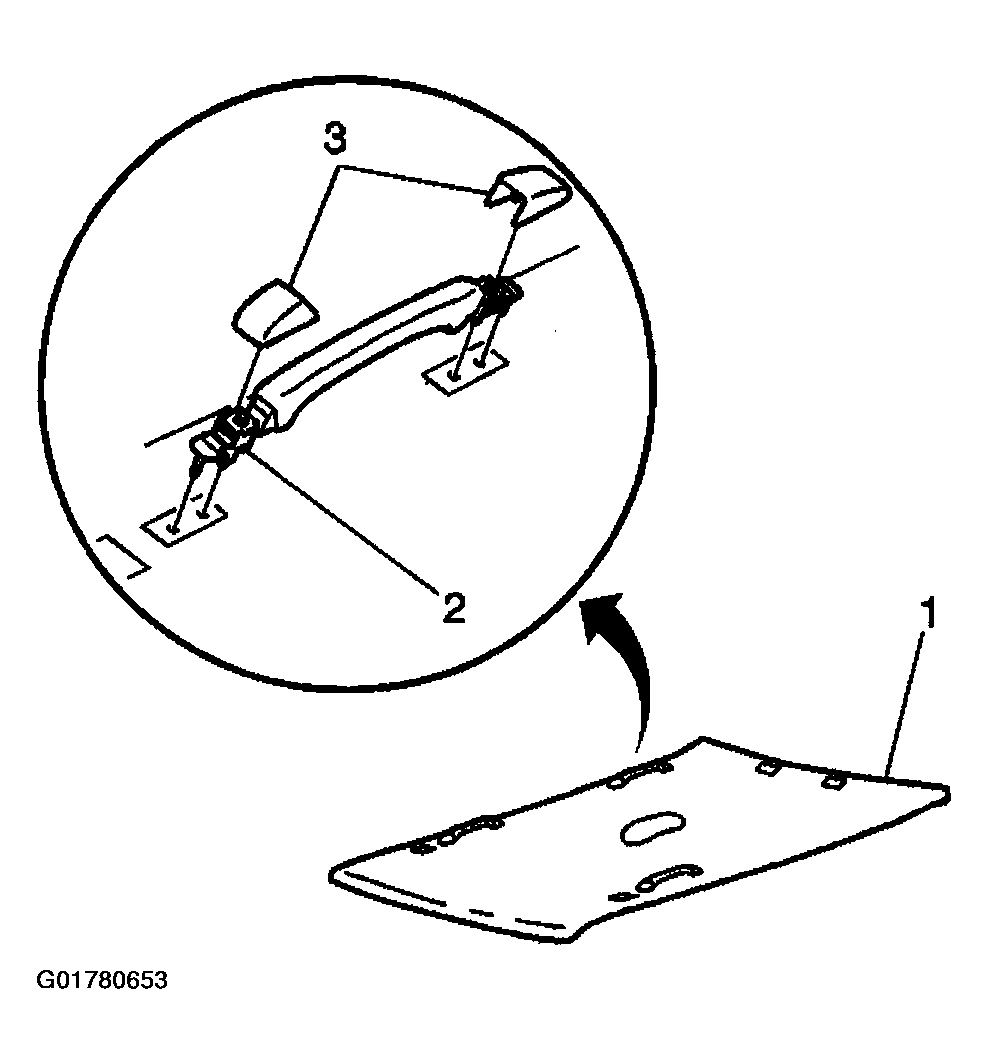

    Fig 1: Removing Assist Handle
    G01780653Courtesy of GENERAL MOTORS CORP.
