Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille from the vehicle. Refer to GRILLE REPLACEMENT .
  2. Disconnect the electrical connector from the air temperature sensor.
  3. Remove the push pin retainer (1) from the air temperature sensor bracket (2).

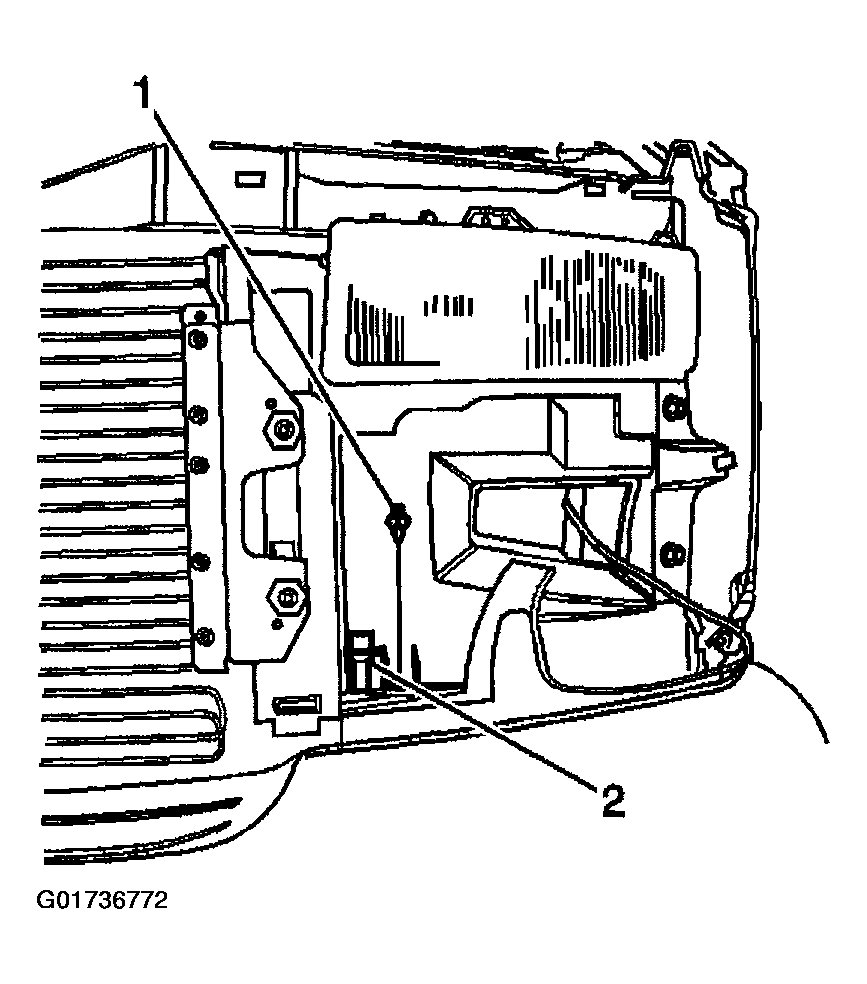

Fig 1: Removing Push Pin Retainer From Air Temperature Sensor Bracket
G01736772Courtesy of GENERAL MOTORS CORP.
