Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper door speaker/grille assembly into the upper door trim panel.
  2. Ensure that the speaker grille is properly seated in the upper door trim panel.
  3. Connect the upper door speaker electrical connector.
  4. Install the upper door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR .

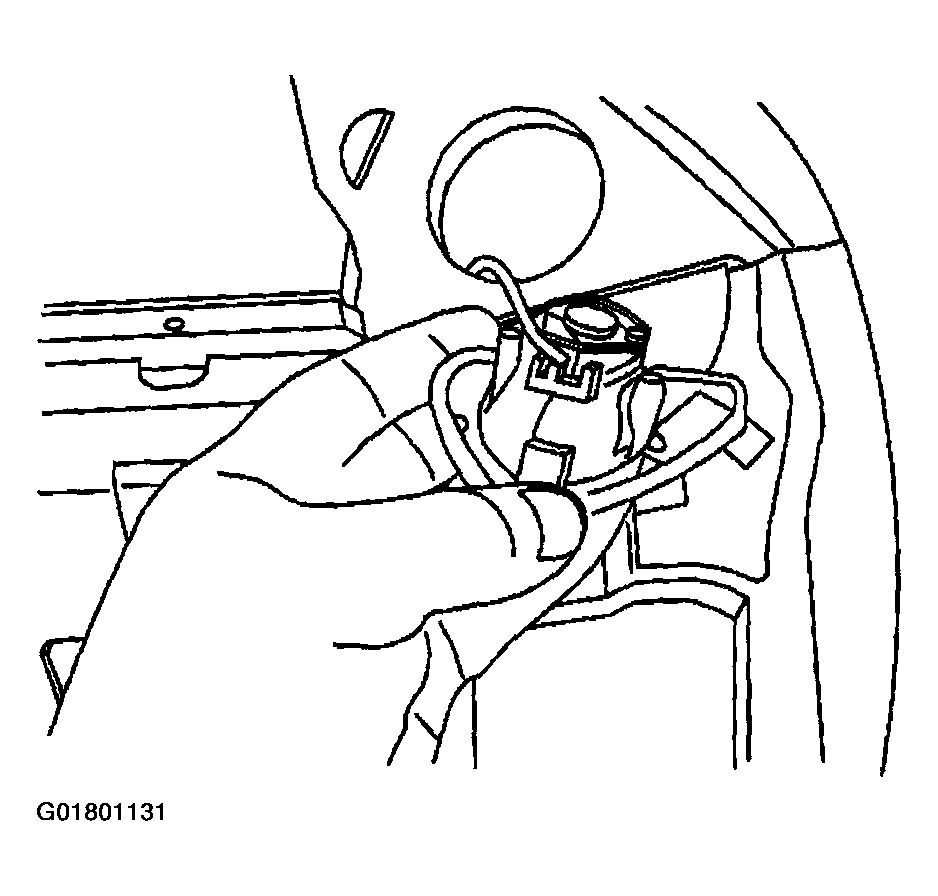

    Fig 1: Installing Upper Front Speaker
    G01801131Courtesy of GENERAL MOTORS CORP.
