Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Exterior Courtesy Lamp Assembly
    G01696717Courtesy of GENERAL MOTORS CORP.
  1. Use a flat-bladed tool in order to pry off the exterior courtesy lamp assembly.
  2. Disconnect the electrical wires.
  3. Remove the 2 retaining screws.

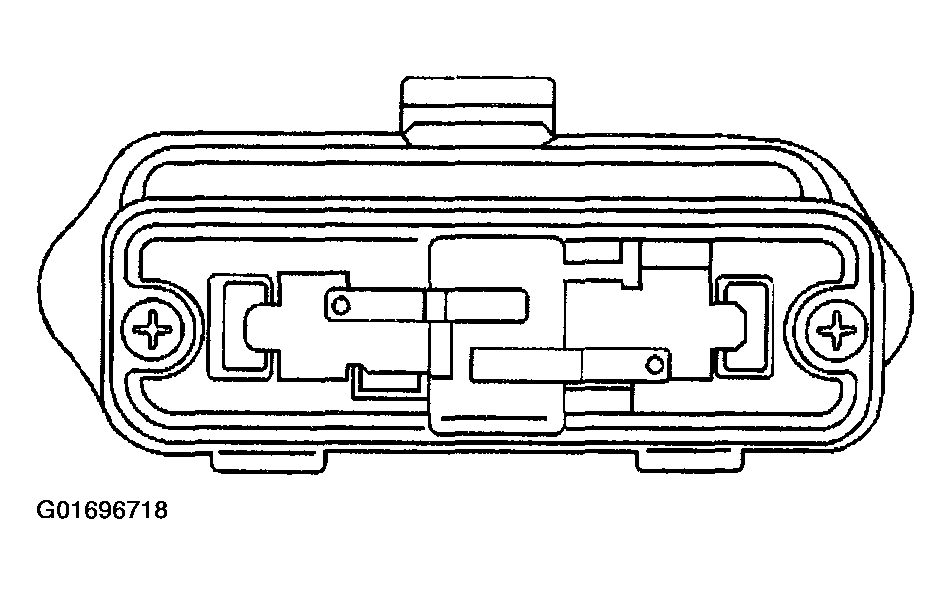

    Fig 2: Retaining Screws
    G01696718Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb.
