Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster assembly. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Remove the bulb socket (1) from the instrument cluster.
    1. Grasp the back of the bulb socket (1).
    2. Turn the bulb socket 1/4 turn to the left in order to release the bulb from the instrument cluster (2).
  3. Remove the bulb from the bulb socket.

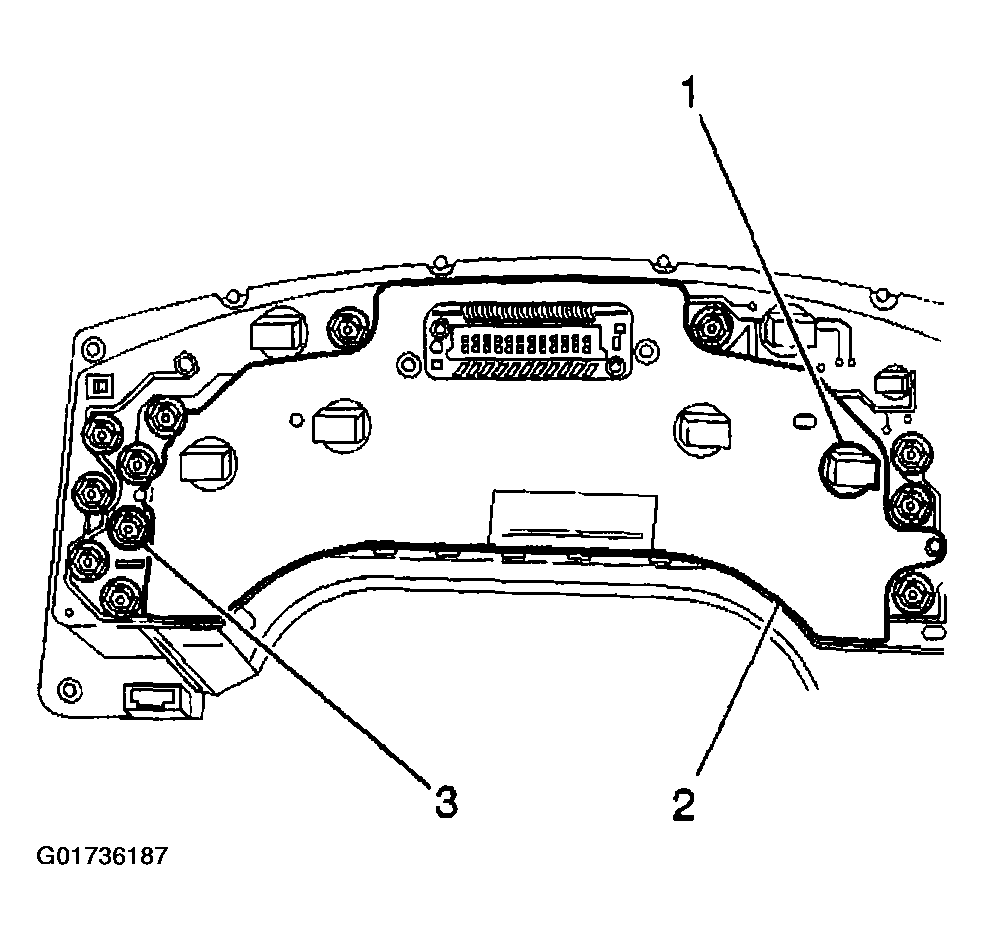

    Fig 1: Removing Bulb Socket
    G01736187Courtesy of GENERAL MOTORS CORP.
