Engine Removal From Frame

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

The transaxle remains mounted firmly in the cradle during removal.

NOTE: Manual Transaxles require the engine to be moved approximately 100 mm. (4 in.) forward in cradle for input shaft disengagement.

With engine/transaxle on table, attach engine lift hoist to engine lift hooks.

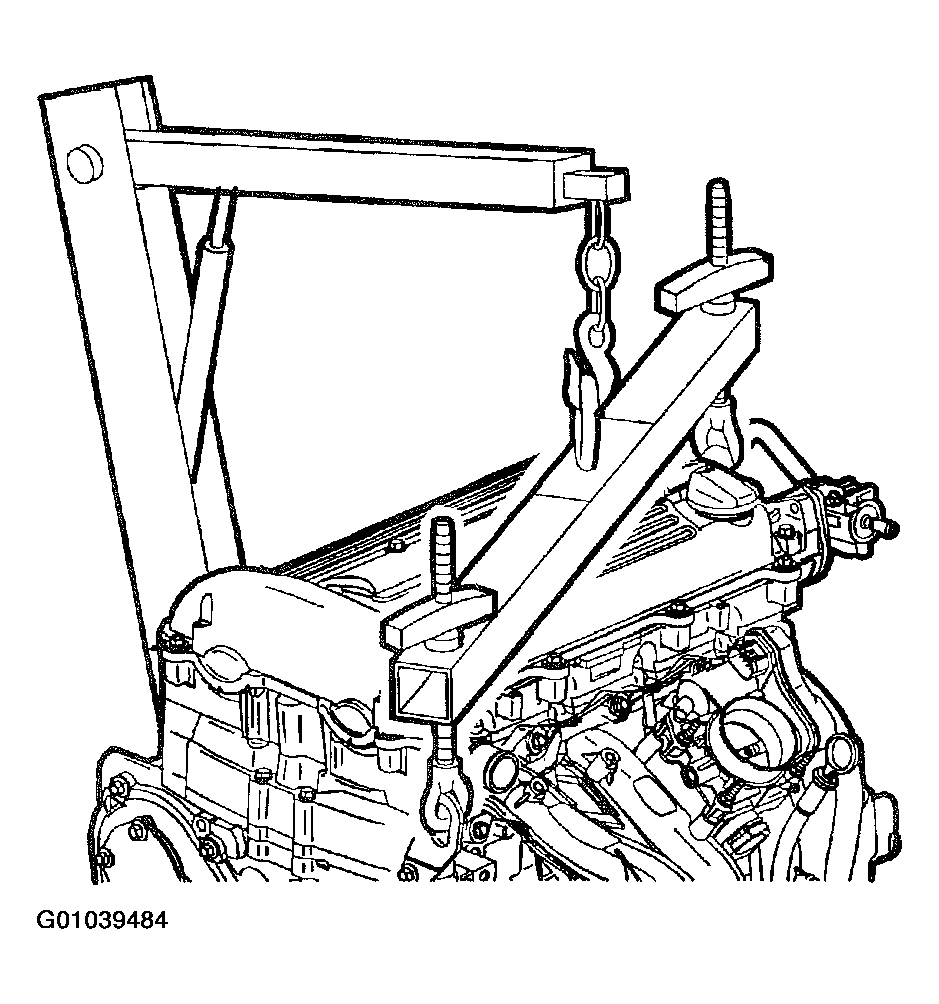

Fig 1: Attach Engine Lift Hoist To Engine Lift Hooks
Courtesy of GENERAL MOTORS CORP.
Remove starter.
Remove torque converter to flywheel bolts.
Remove transaxle to engine bolts.
Remove power takeoff unit (PTU) brackets to engine bolts (if equipped).
Disconnect transaxle electrical connectors if equipped.

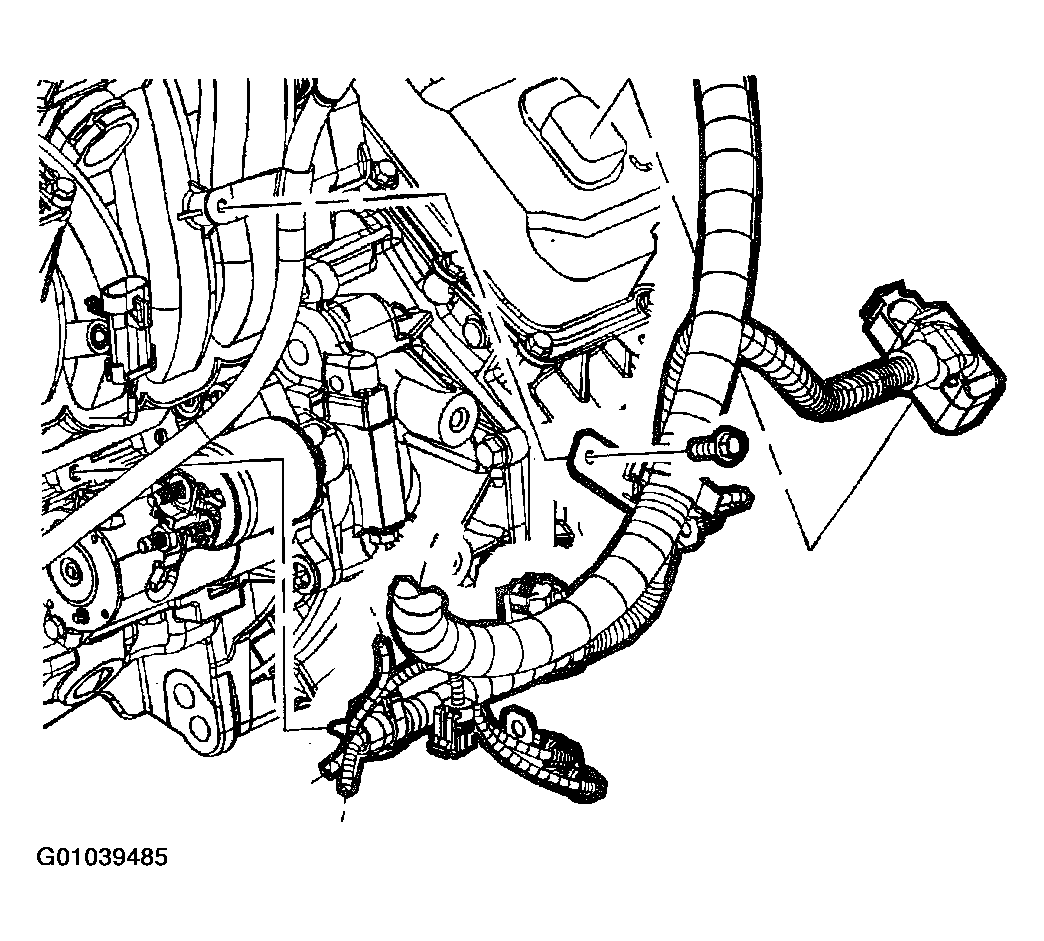

Fig 2: Disconnecting Transaxle Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
If equipped with auto transaxle, disconnect PRNDL switch electrical connector.
Separate engine from transaxle.
