Engine Disassembly - Preparation For Disassembly

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove flywheel/flexplate.

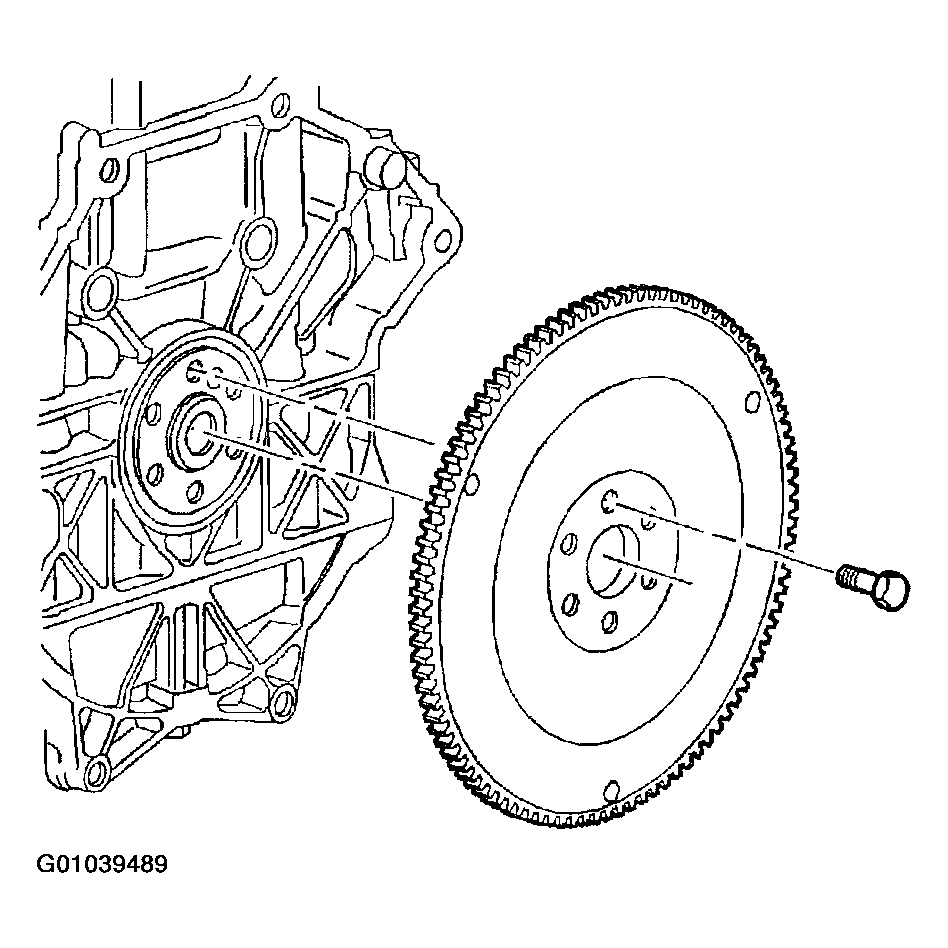

    Fig 1: Removing Flywheel/Flexplate
    G01039489Courtesy of GENERAL MOTORS CORP.
  2. Mount engine on a stand.
  3. Remove all accessories and components:
    1. 3.1 Engine wire harness
    2. 3.2 Starter
    3. 3.3 Generator
    4. 3.4 Oil pressure sending unit
      Fig 2: Mounting Engine On A Stand
      G01039490Courtesy of GENERAL MOTORS CORP.
    5. 3.5 Knock sensor
    6. 3.6 Crankshaft position sensor

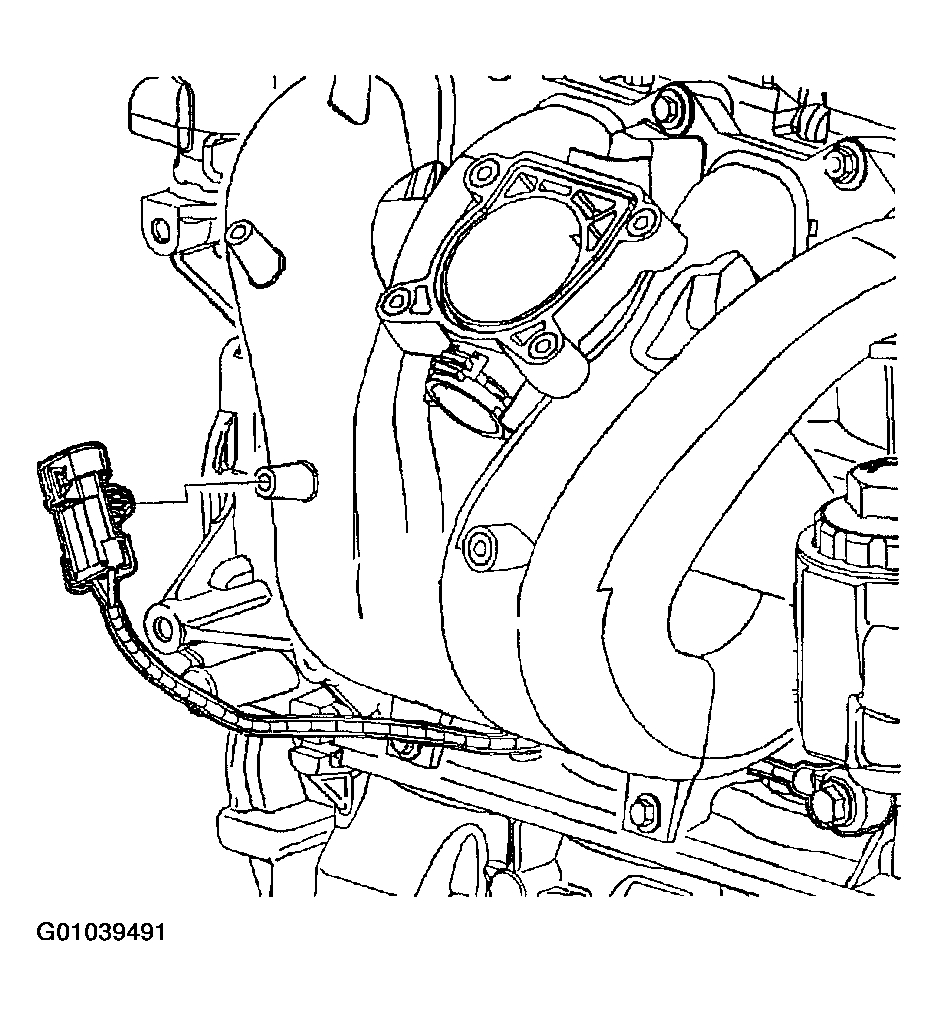

      Fig 3: Disconnecting Knock sensor
      G01039491Courtesy of GENERAL MOTORS CORP.
