Engine Front Cover And Oil Pump (Unit Repair): Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install engine front cover and new gasket.
Install long water pump bolt.
Torque:

Water Pump Bolt: 25 N.m (18 ft-lbs)

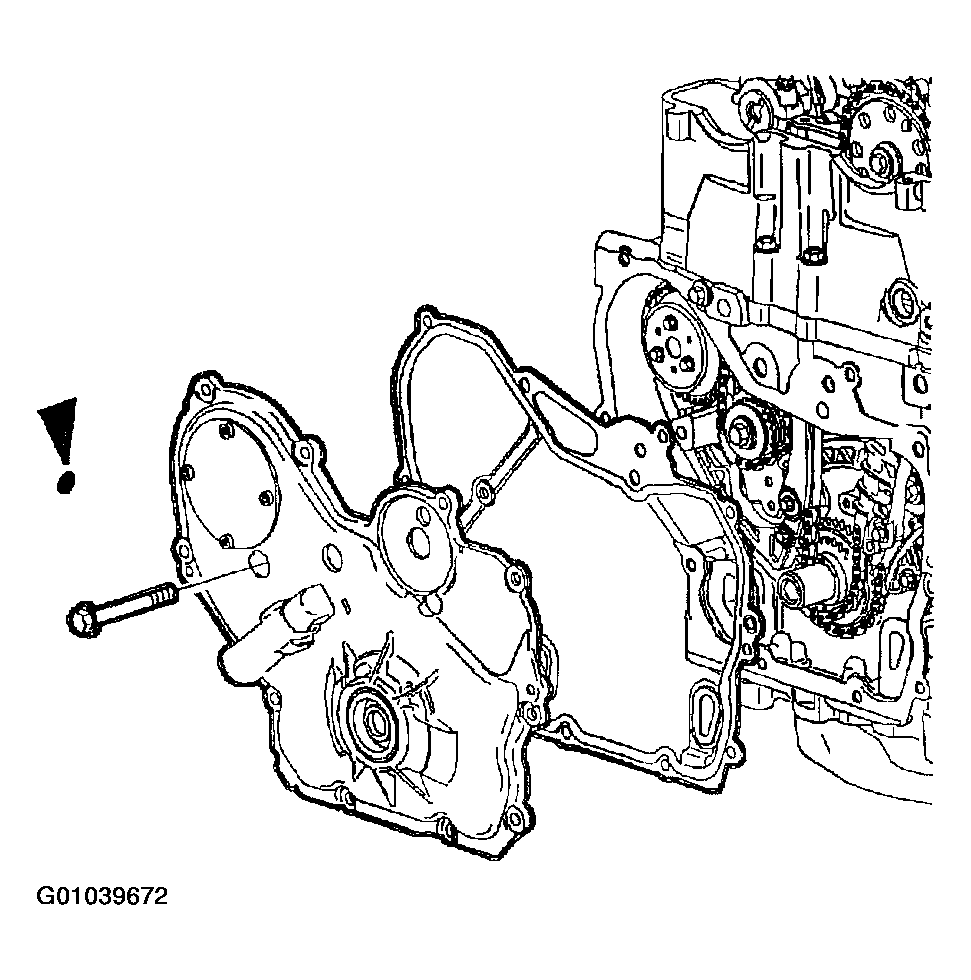

Fig 1: Installing Engine Front Cover, New Gasket And Long Water Pump Bolt
Courtesy of GENERAL MOTORS CORP.
Install engine front cover bolts.
Torque:

Front Cover-to-Block Bolts: 25 N.m (18 ft-lbs)

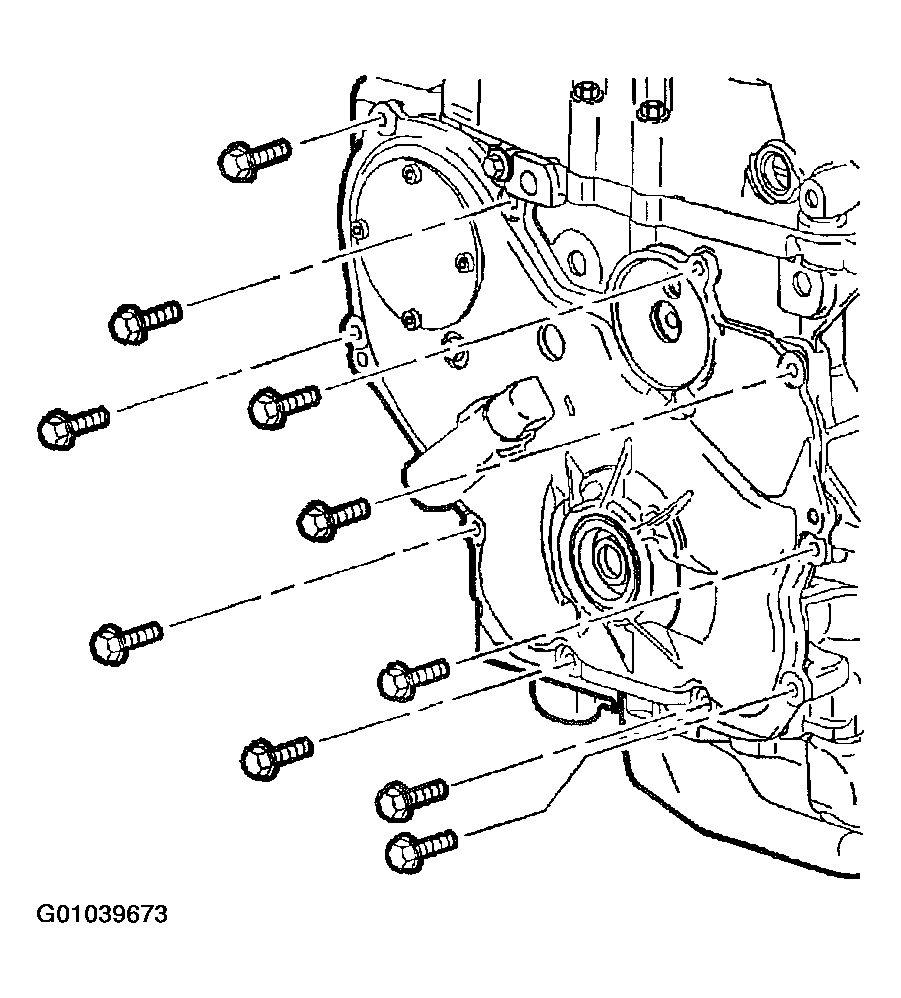

Fig 2: Installing Engine Front Cover Bolts
Courtesy of GENERAL MOTORS CORP.
Install accessory drive belt tensioner.
Torque:

Drive Belt Tensioner Bolt: 45 N.m (33 ft-lbs)

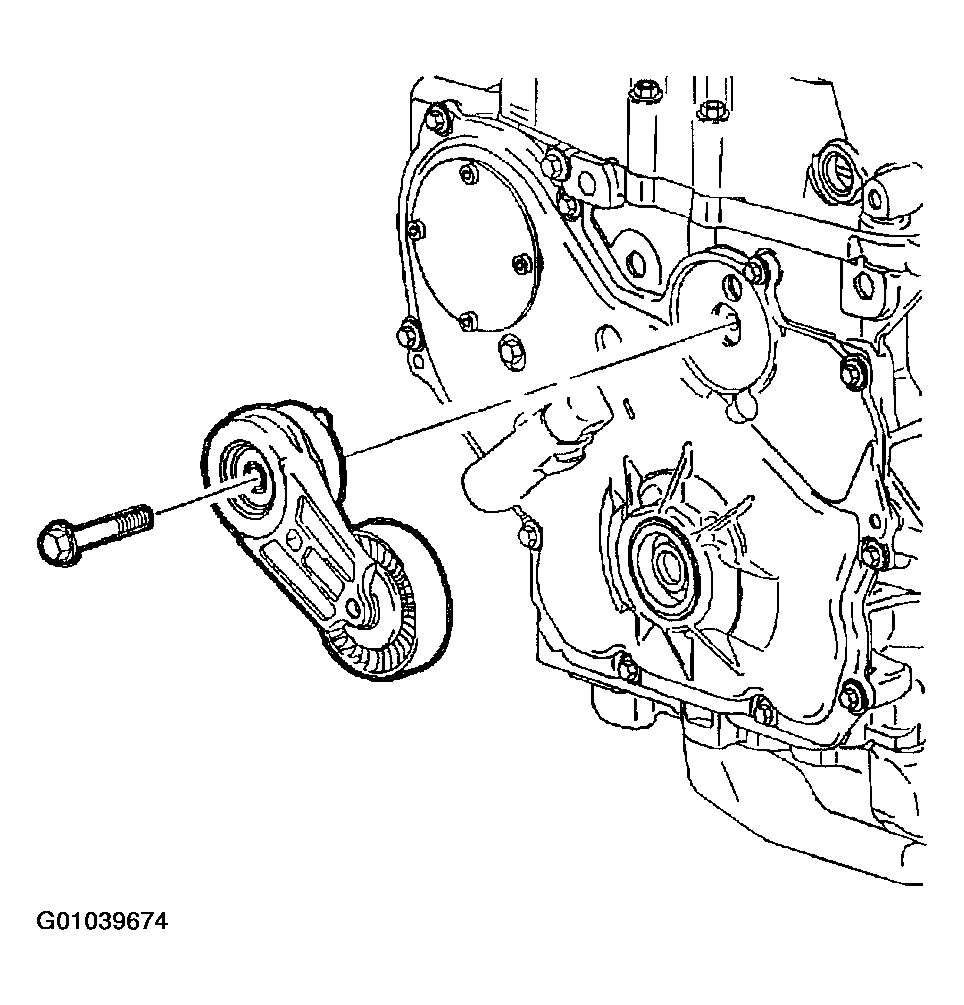

Fig 3: Installing Accessory Drive Belt Tensioner
Courtesy of GENERAL MOTORS CORP.
