Water Pump Installation

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket.
  2. Install the water pump.
  3. Install the water pump bolts.

    Tighten

    Tighten the water pump bolts to 11 N.m (98 INCH lbs).

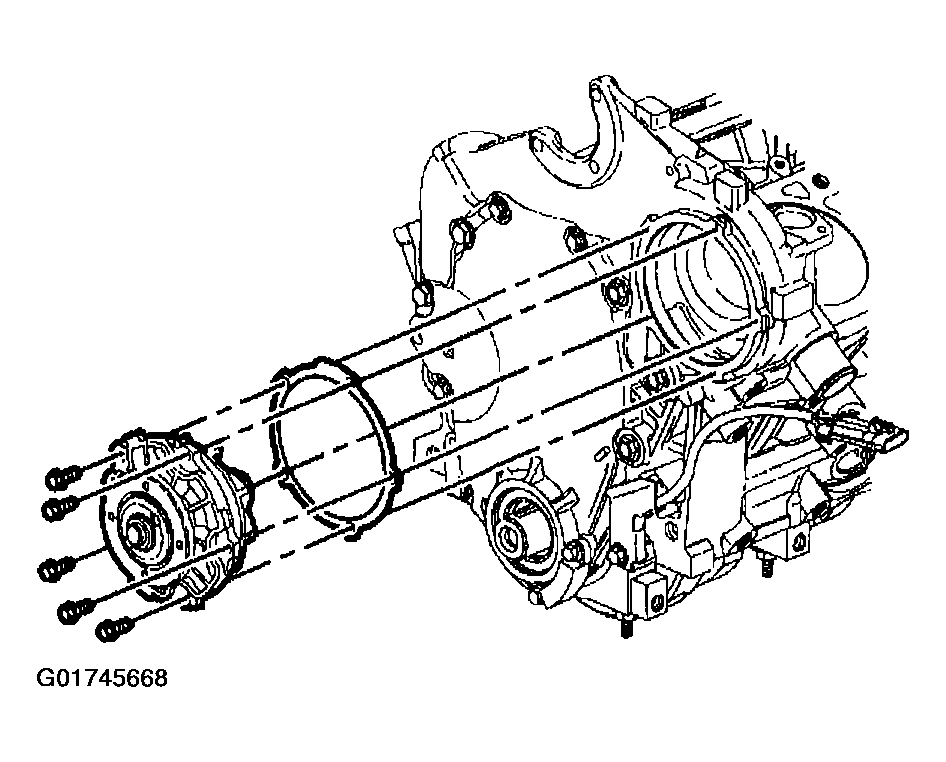

    Fig 1: Installing Water Pump
    G01745668Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten

    Tighten the water pump pulley bolts to 25 N.m (18 ft. lbs).

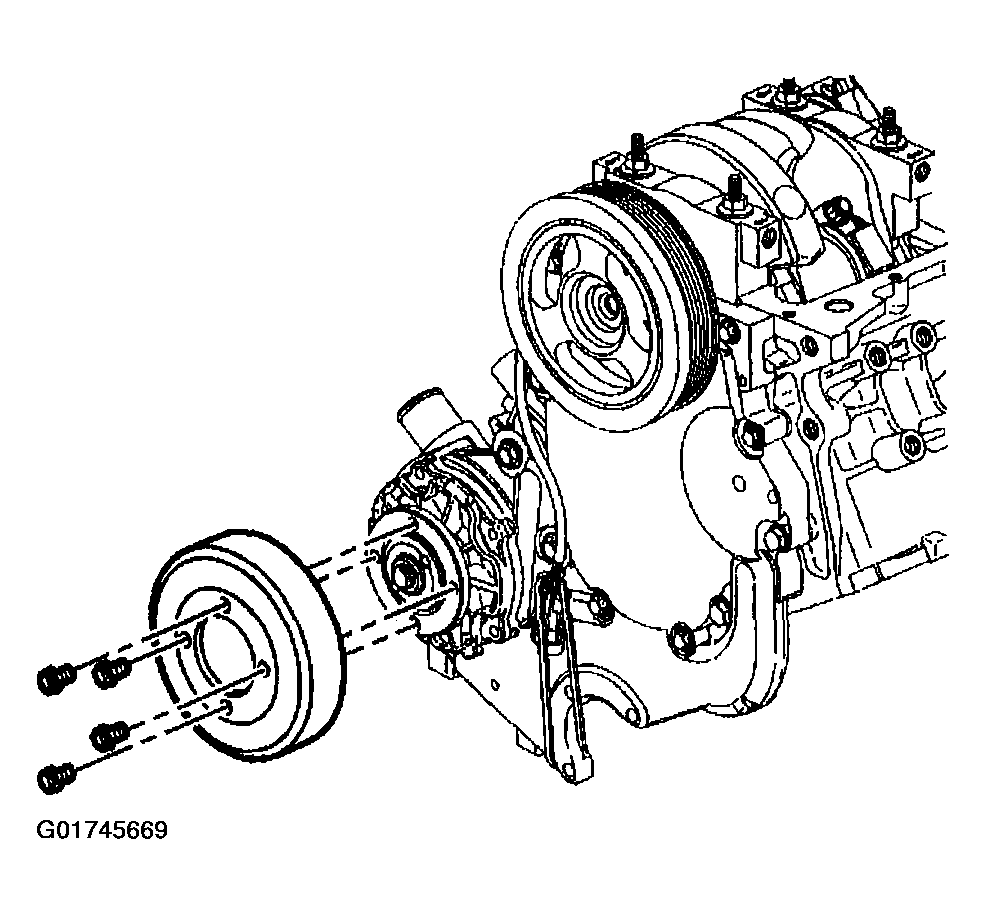

    Fig 2: Installing Water Pump Pulley
    G01745669Courtesy of GENERAL MOTORS CORP.
