Water Outlet Installation

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the thermostat.

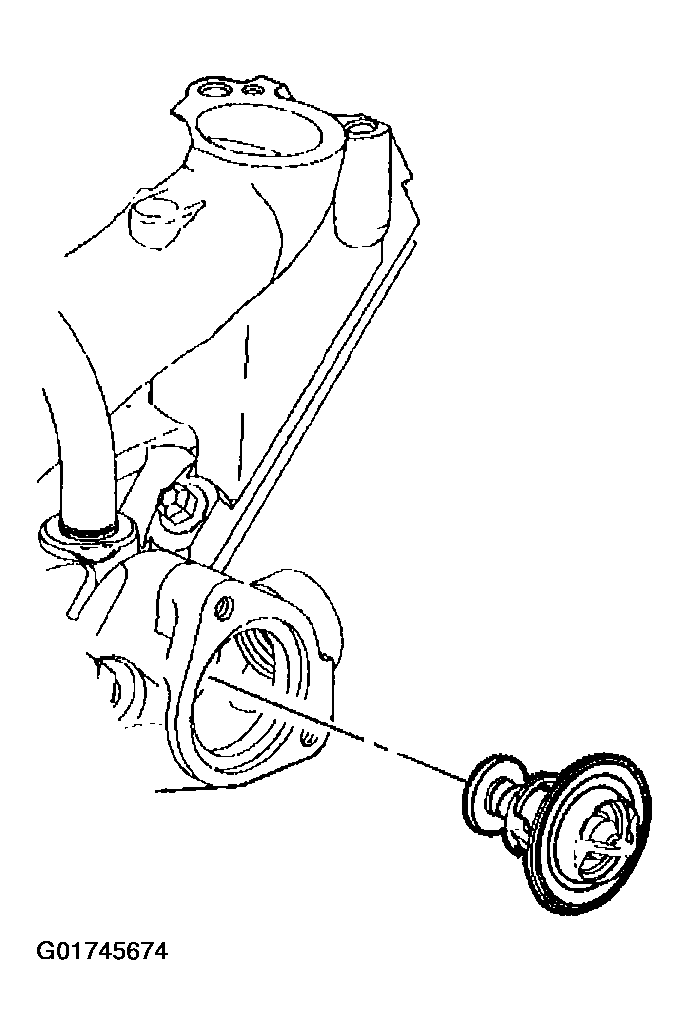

    Fig 1: Installing Thermostat
    G01745674Courtesy of GENERAL MOTORS CORP.
  2. Install the water outlet.
  3. Install the water outlet bolts.

    Tighten

    Tighten the water outlet bolts to 25 N.m (18 ft. lbs).

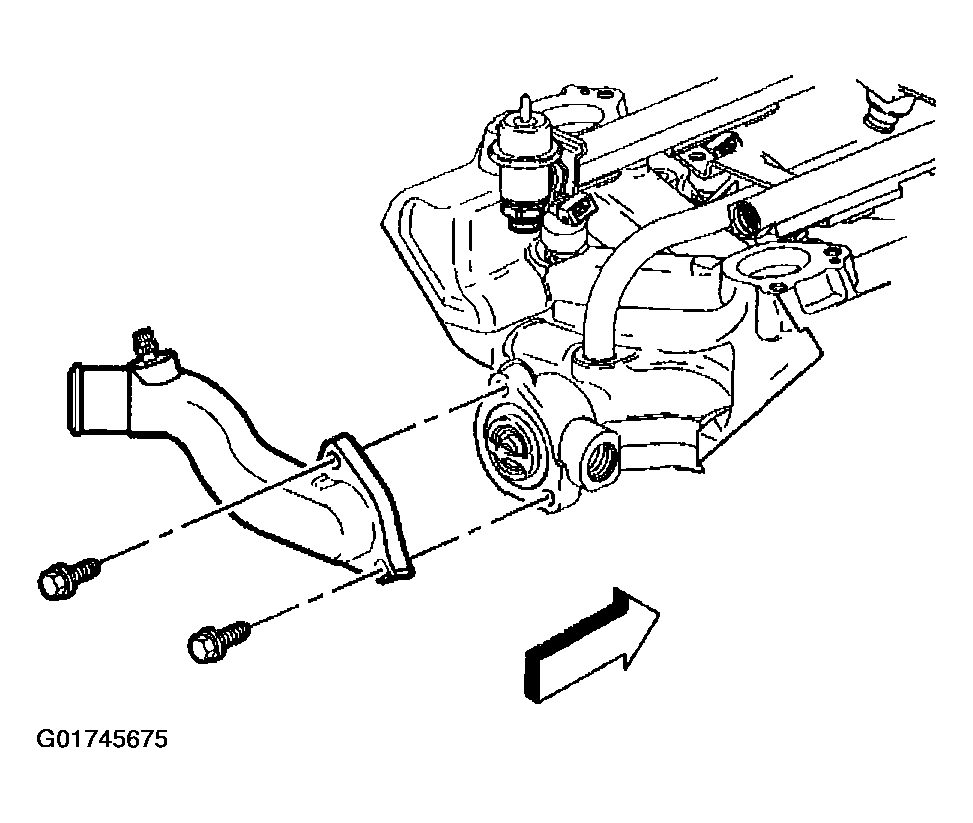

    Fig 2: Installing Thermostat Housing
    G01745675Courtesy of GENERAL MOTORS CORP.
