Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm bolts.

    Important:  Place the valve train components in a rack in order to ensure that the components are installed in the same location from which they were removed.

  2. Remove the valve rocker arms.

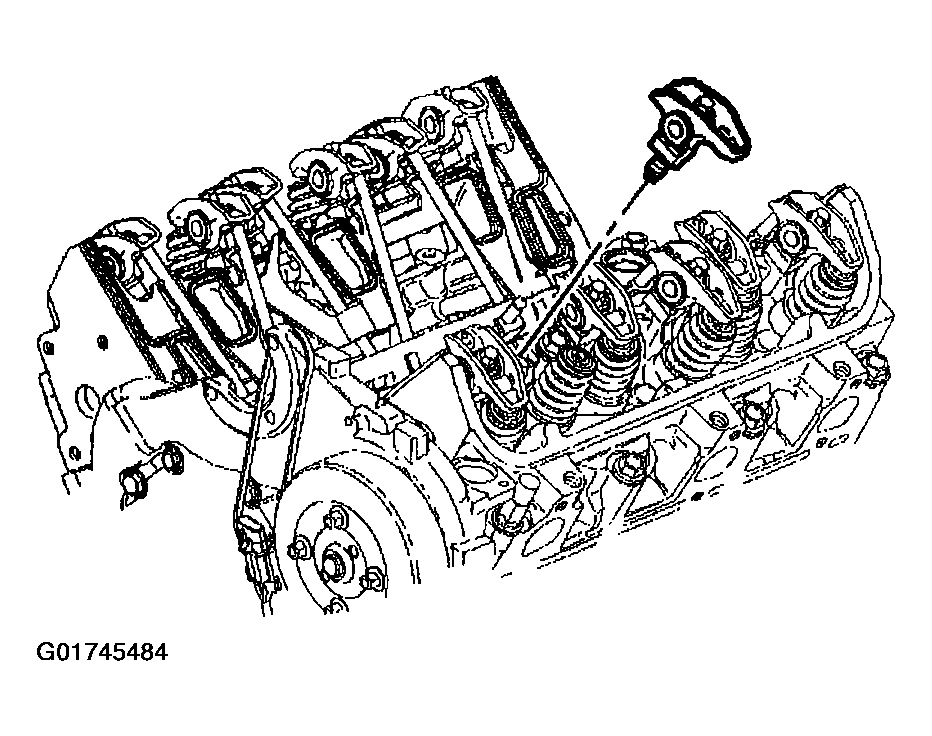

    Fig 1: Removing Valve Rocker Arms
    G01745484Courtesy of GENERAL MOTORS CORP.
  3. Remove the push rods.
    • The intake push rods measure 146 mm (5.75 in).
    • The exhaust push rods measure 152.51 mm (6.0 in).

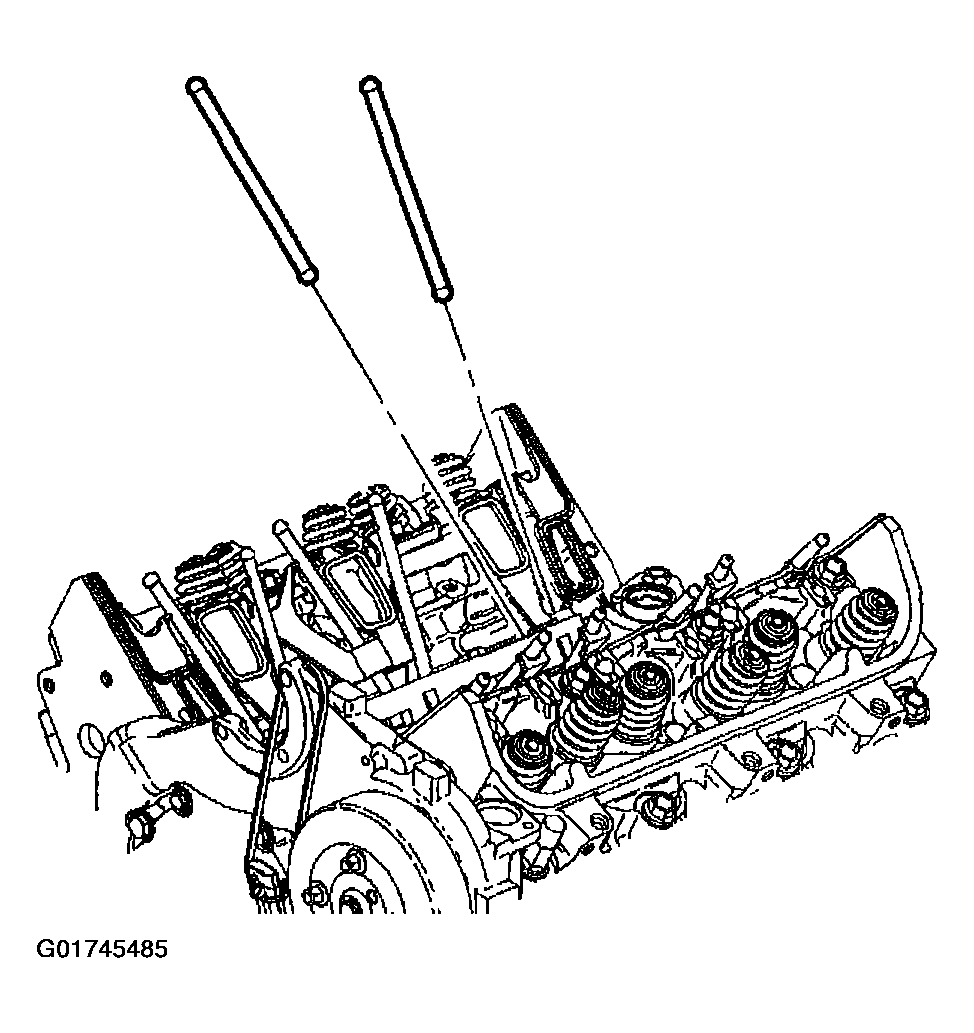

    Fig 2: Removing Push Rods
    G01745485Courtesy of GENERAL MOTORS CORP.
  4. Remove the intake manifold gaskets.

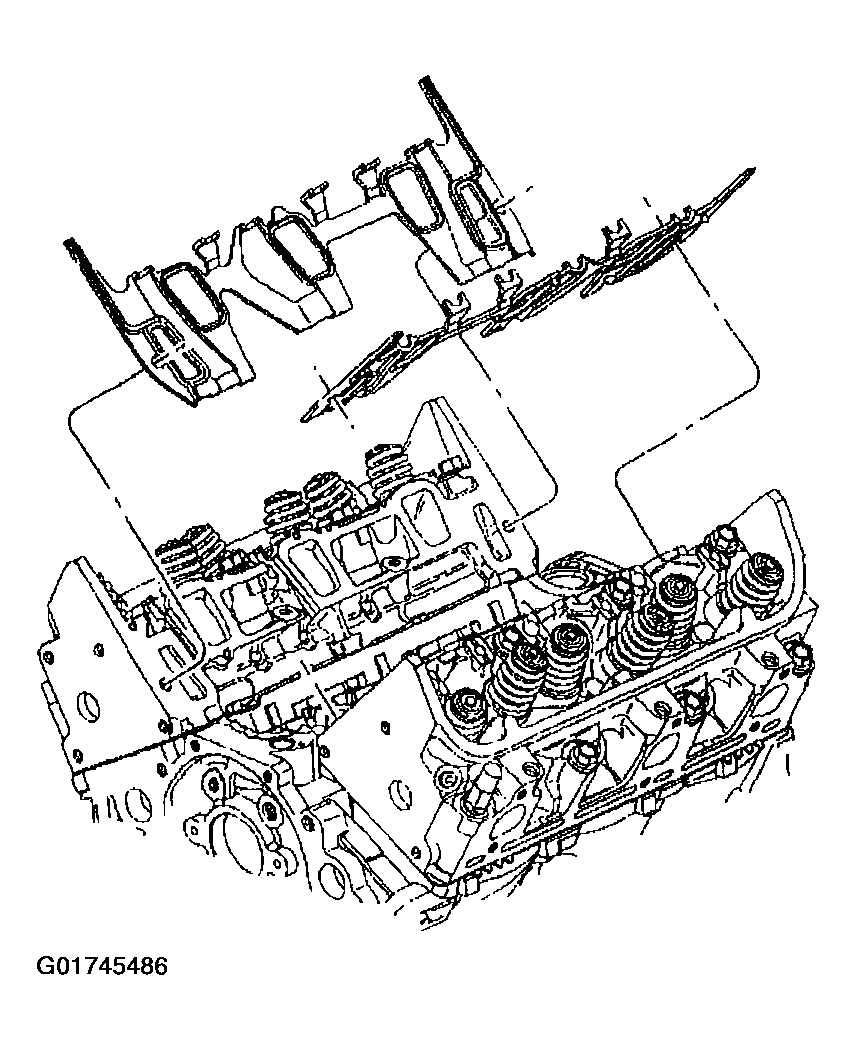

    Fig 3: Removing Intake Manifold Gaskets
    G01745486Courtesy of GENERAL MOTORS CORP.
