Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thermostat bypass pipe (3) to throttle body nut (2).
  2. Remove the thermostat bypass pipe (3) to throttle body hose clamps (1).
  3. Remove the thermostat bypass pipe to engine front cover bolt (4).
  4. Remove the thermostat bypass pipe hose clamp (5) and hose from pipe.
  5. Remove the thermostat bypass pipe (3).
  6. Remove the oil level indicator tube bolt.

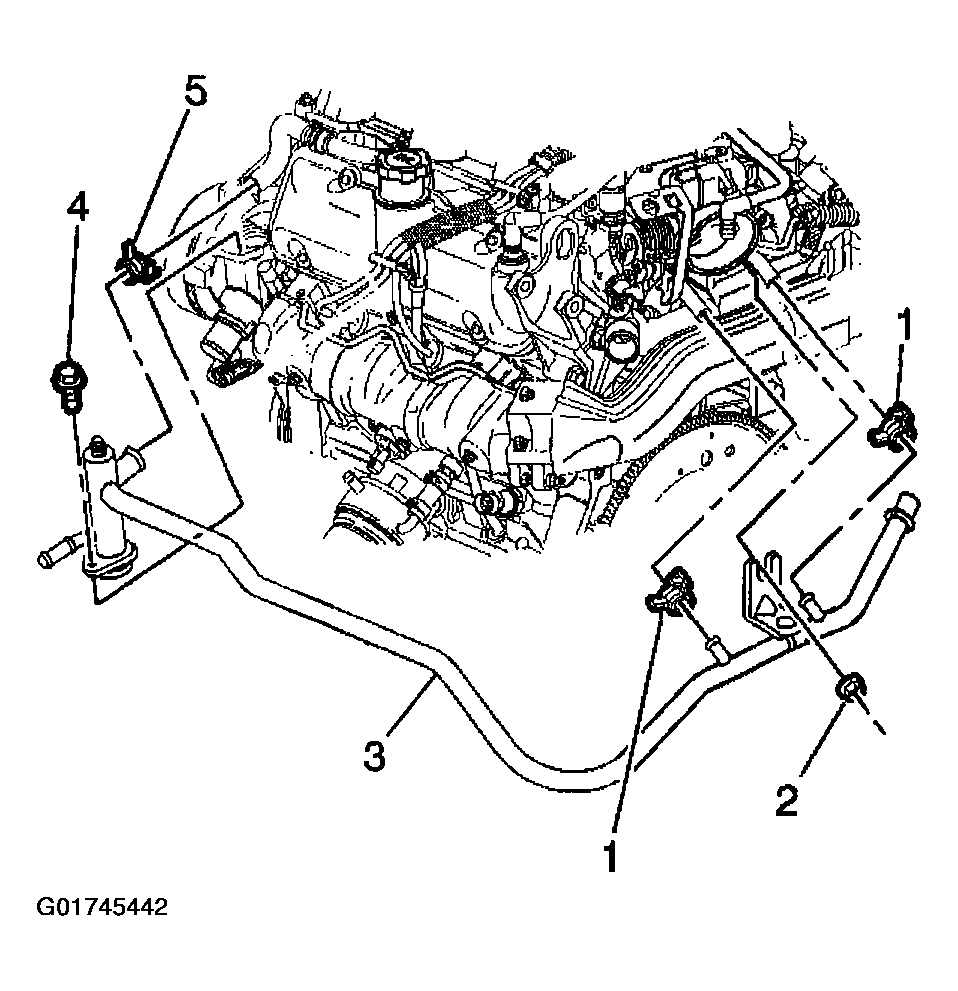

    Fig 1: Components Related To Oil Level Indicator Removal
    G01745442Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil level indicator and oil level indicator tube.

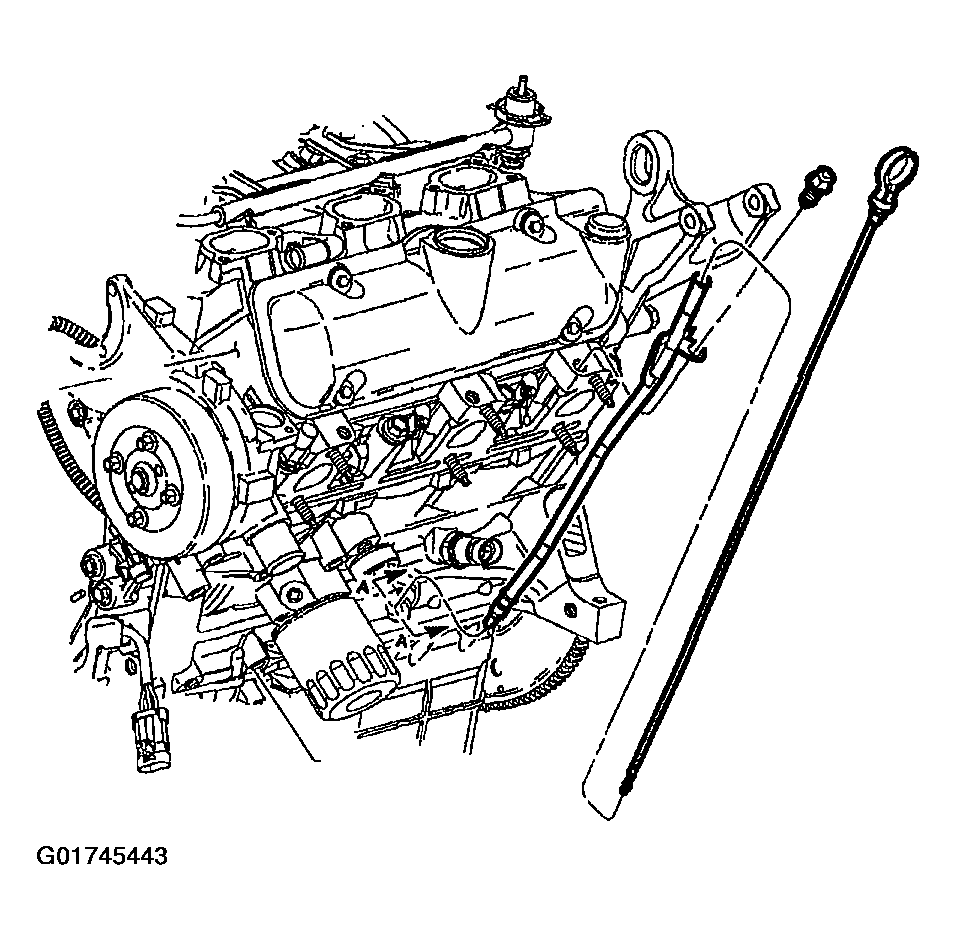

    Fig 2: Removing Oil Level Indicator And Oil Level Indicator Tube
    G01745443Courtesy of GENERAL MOTORS CORP.
