Instrument Panel Compartment Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

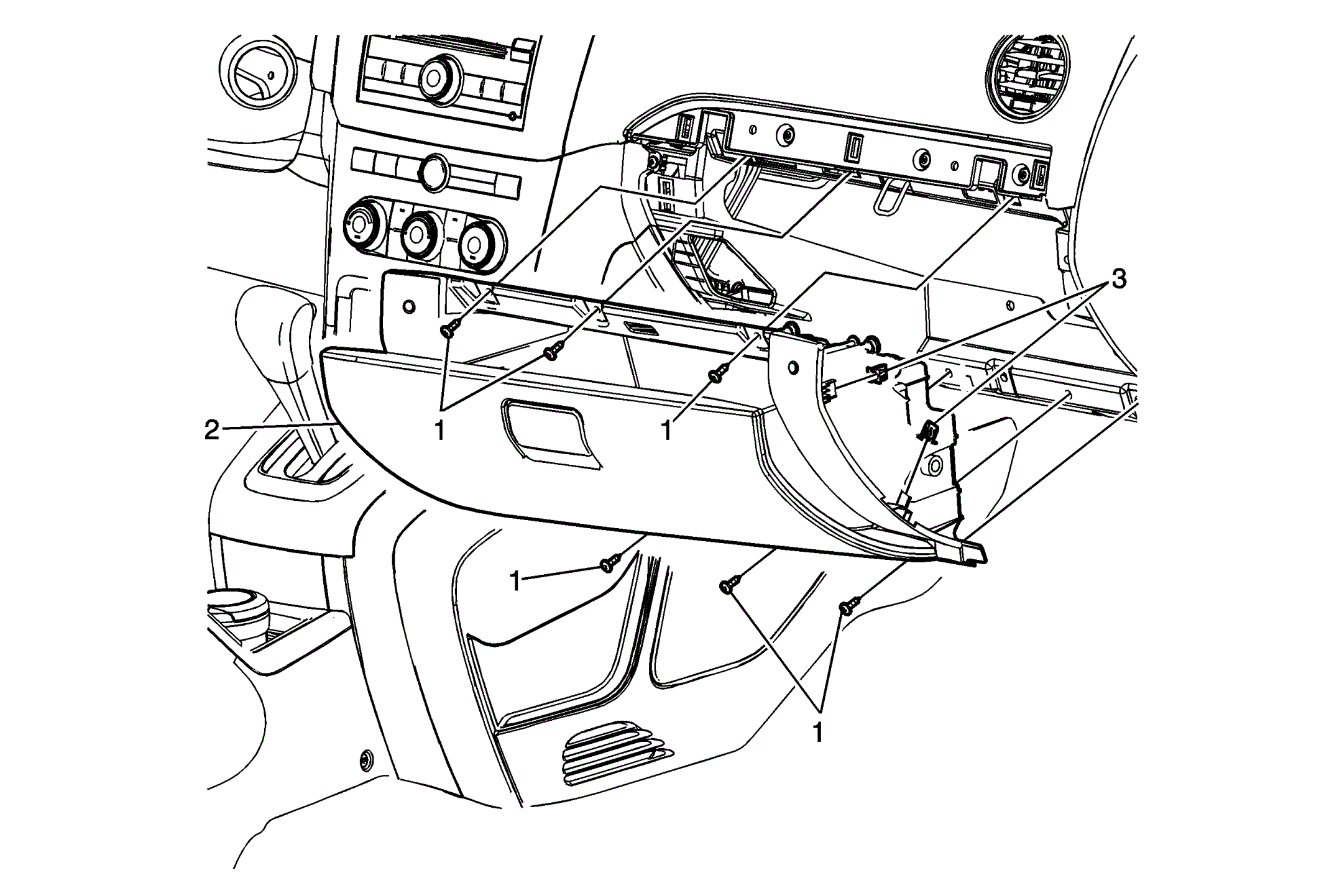

Fig 1: Instrument Panel Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel molding assembly. Refer to Instrument Panel Molding Replacement .
1	Instrument Panel Compartment Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (26 lb in)
2	Instrument Panel Compartment Assembly Procedure Disconnect the electrical connections. When replacing the instrument panel compartment assembly, transfer all necessary components.
3	Retainer Clip (Qty: 4)
