Rear Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

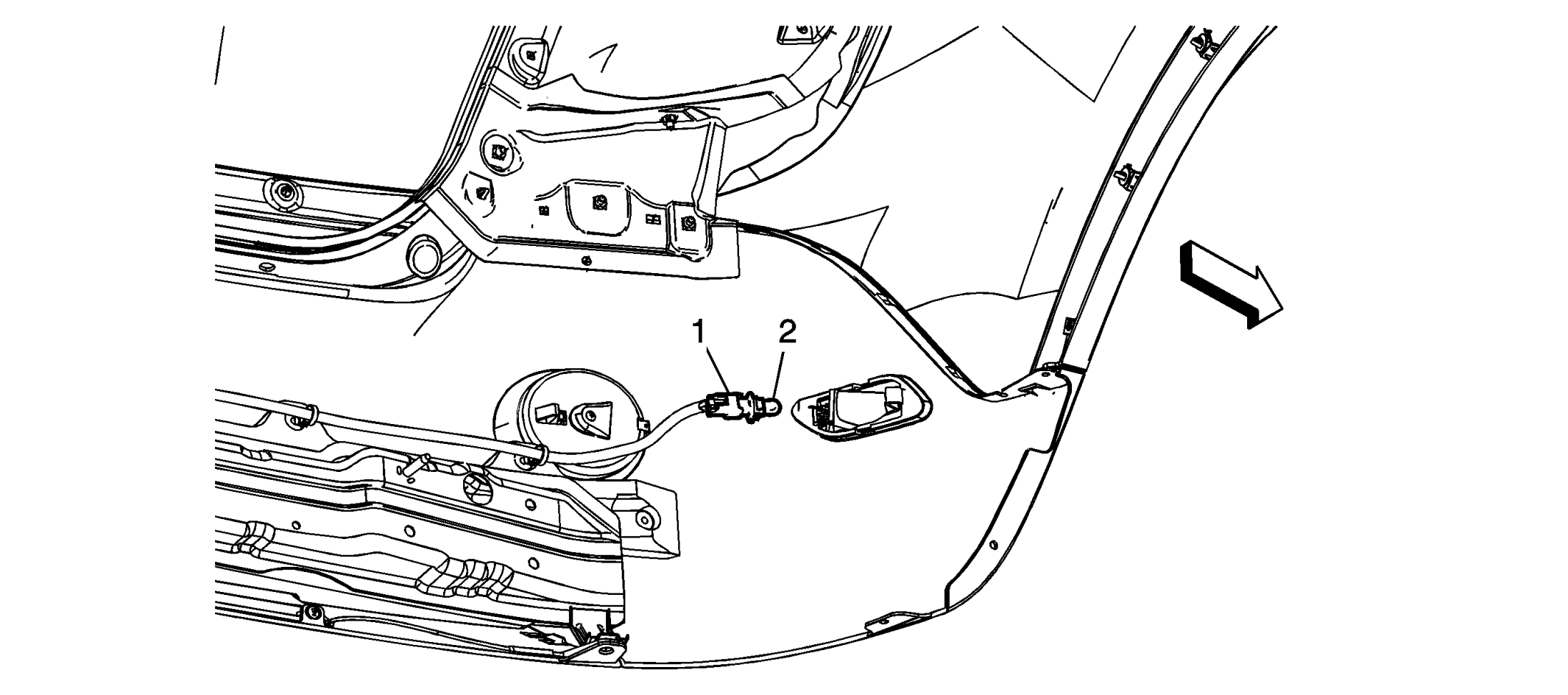

Fig 1: Rear Side Marker Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Side Marker Lamp Assembly Bulb Socket Tip: Rotate the bulb socket a quarter turn counter-clockwise and remove.
2	Rear Side Marker Lamp Bulb
