Starting and Charging Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

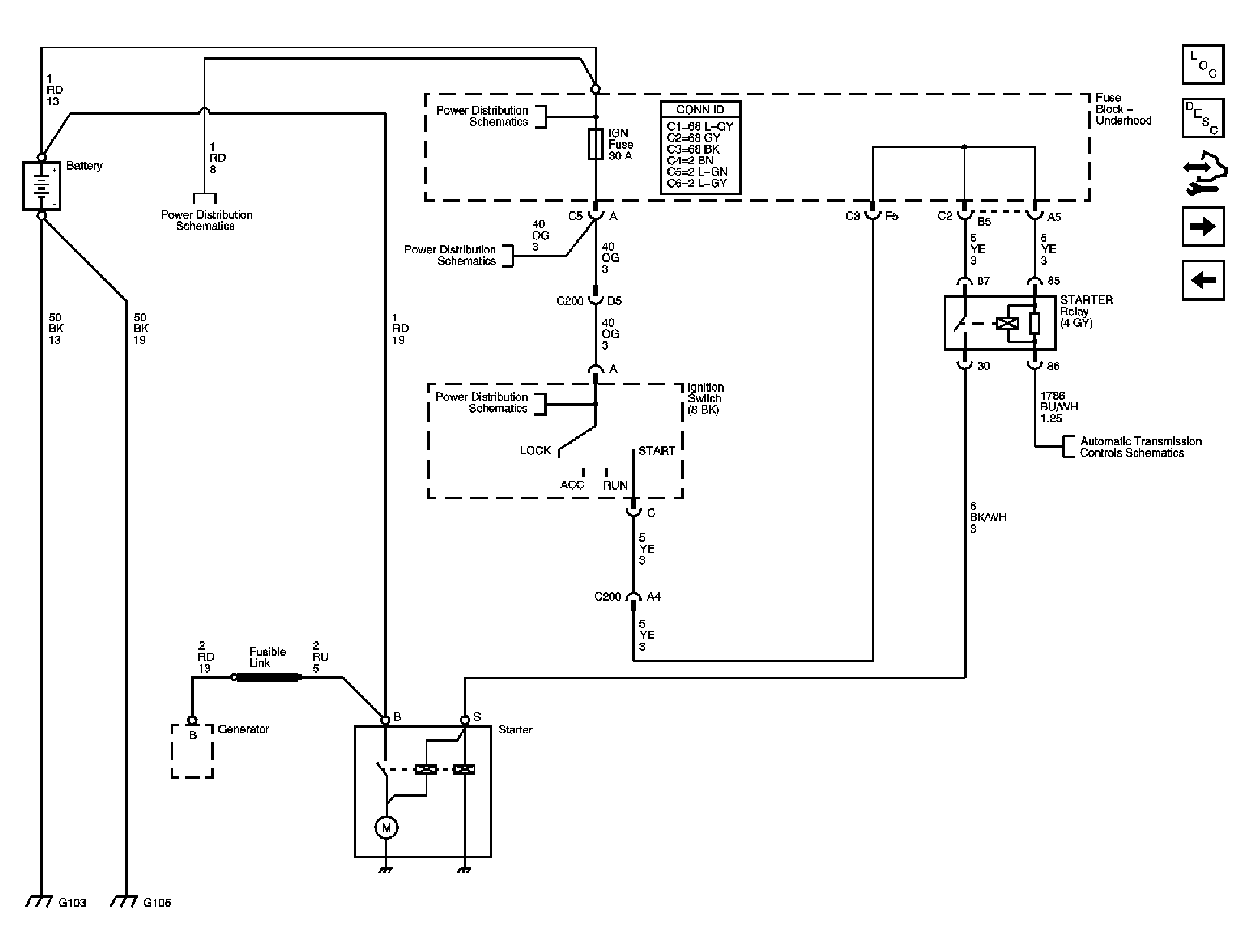

Fig 1: Starting Schematic (L61)

Courtesy of GENERAL MOTORS CORP.

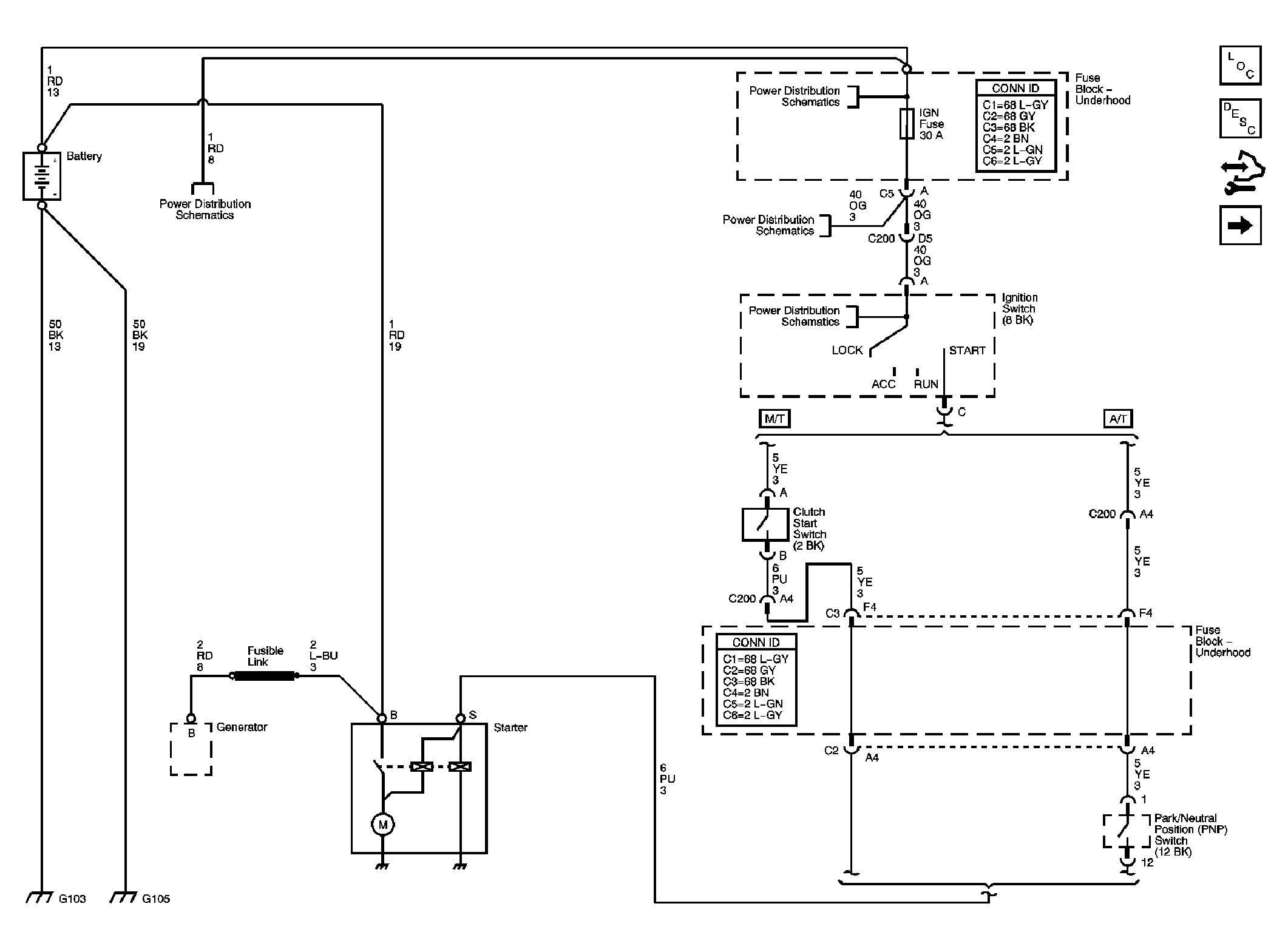

Fig 2: Starting Schematic (L66)

Courtesy of GENERAL MOTORS CORP.

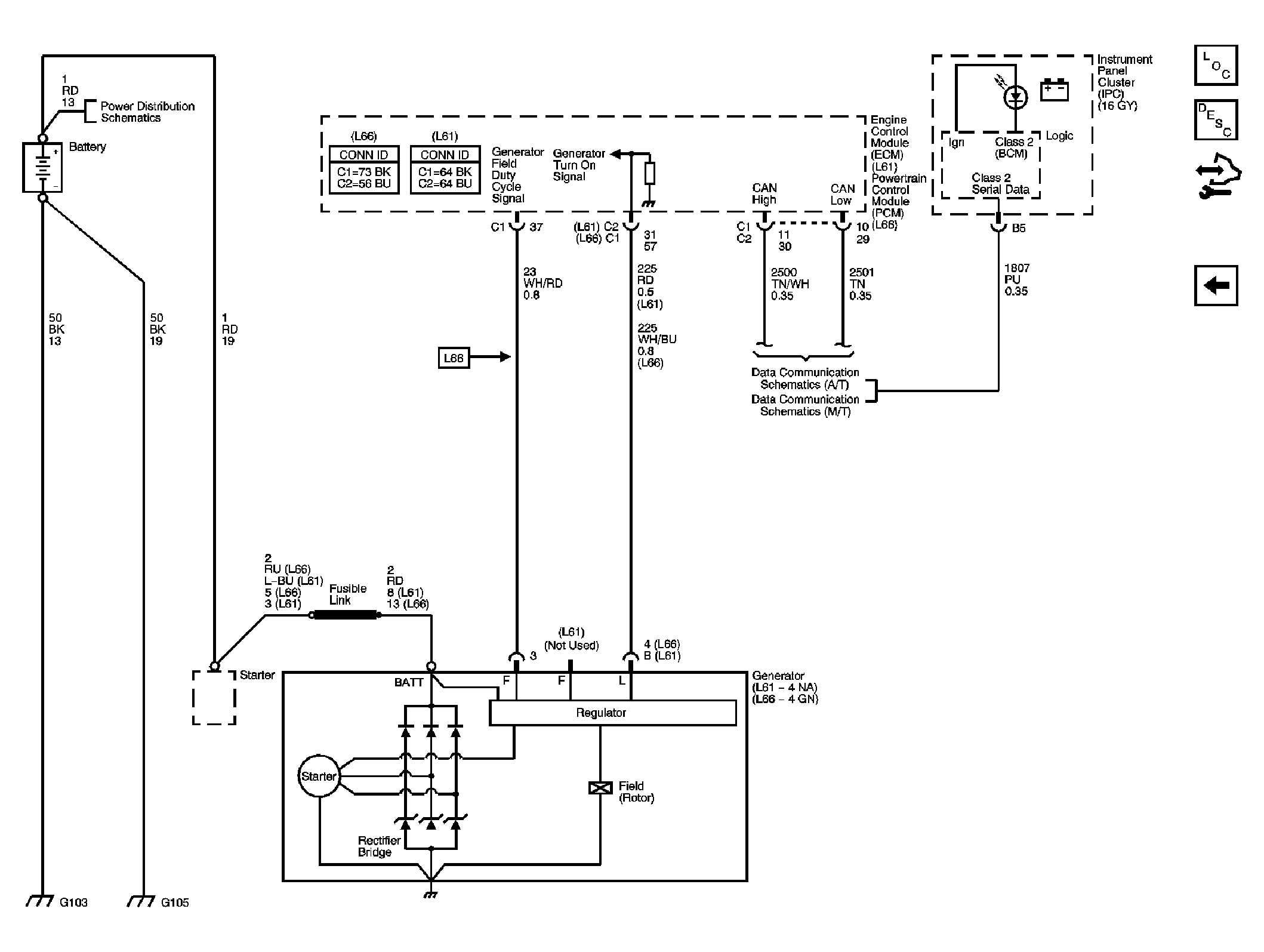

Fig 3: Charging Schematic

Courtesy of GENERAL MOTORS CORP.
