Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

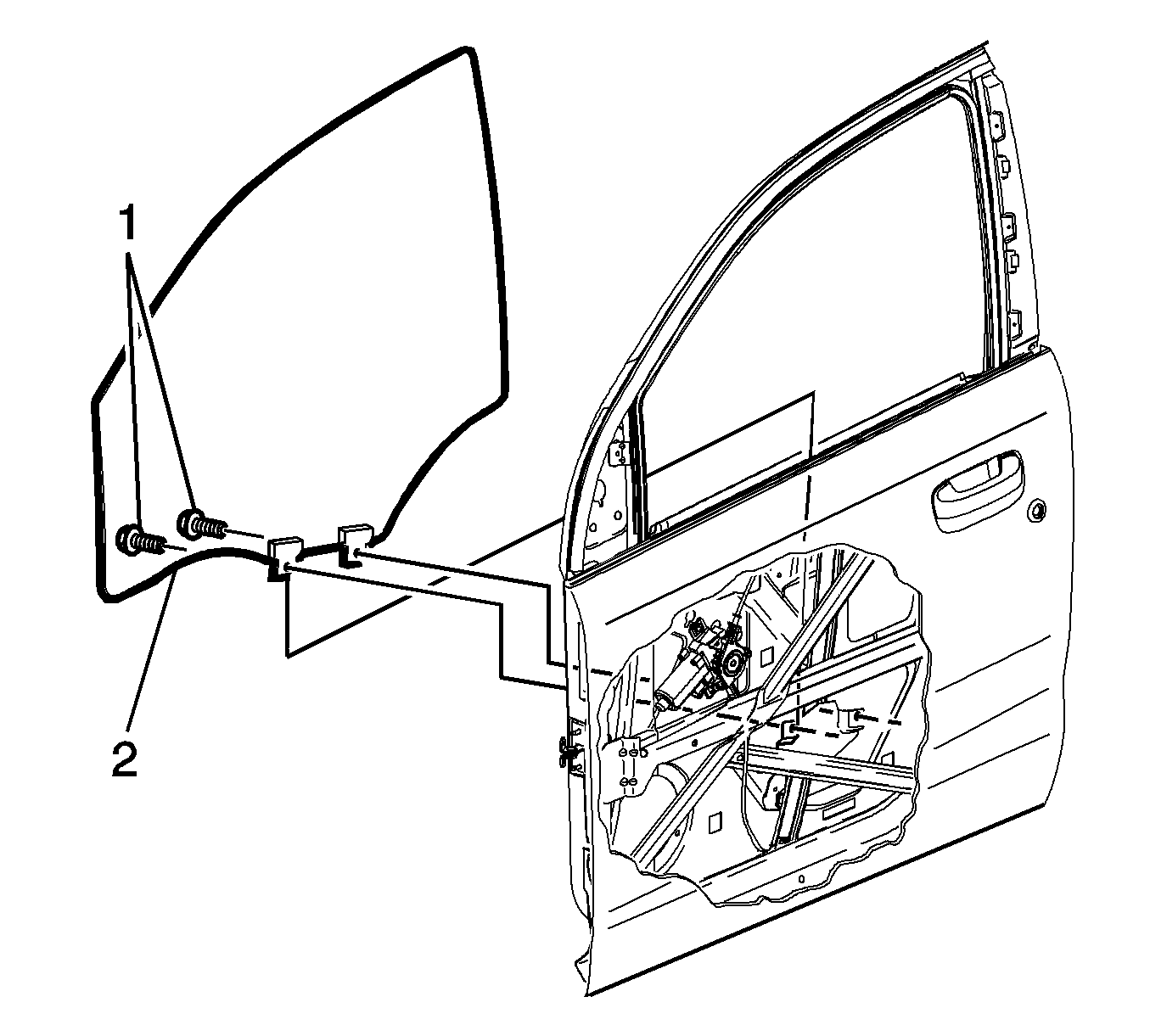

    Fig 1: View Of Front Door Window
    GM941821Courtesy of GENERAL MOTORS CORP.
  1. Install the window by sliding the window into the door through the outside door belt opening.
  2. Install the window into the primary glass run channels and rest the window on the regulator guide plate.
    3. NOTE: Refer to Fastener Notice .
  3. Install the window bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  4. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  5. Install the front inner door trim panel. Refer to Front Side Door Trim Panel Replacement .
  6. Operate the window to inspect the operation.
