Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

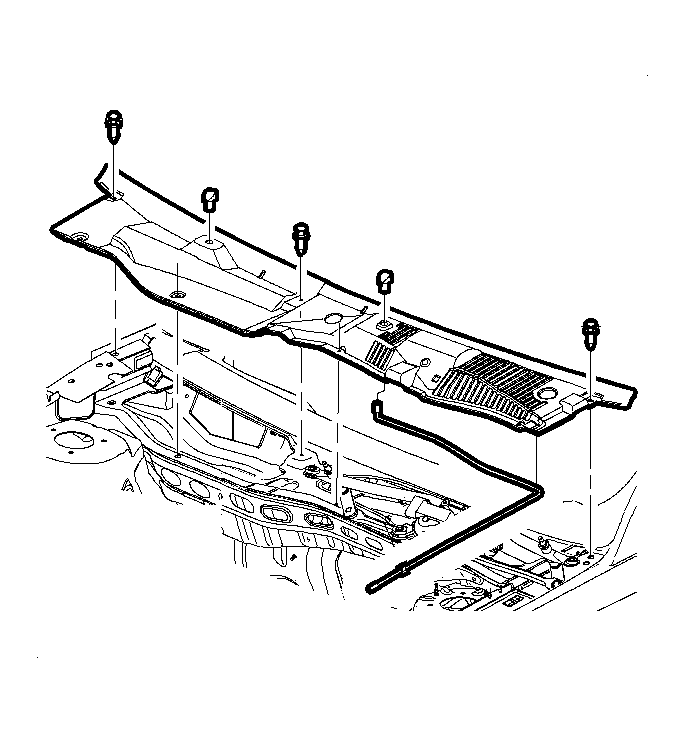

    Fig 1: Exploded View Of Air Inlet Grille
    GM1163448Courtesy of GENERAL MOTORS CORP.
  1. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  2. Depress the washer nozzle tabs to disengage the nozzle from the air inlet grille.
  3. Remove the nozzle.
